4.1.3 Camshaft housing

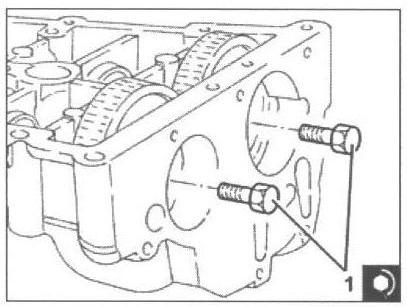

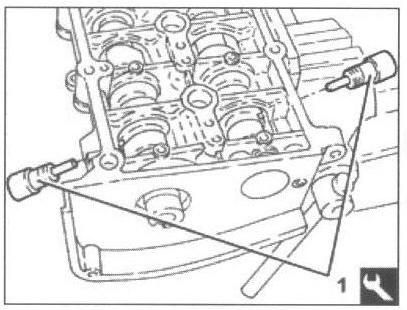

Position the camshaft housing in the vice using the tool (support). Tighten the engine oil lubrication duct plugs. Place the camshaft gears in their housings. Place the camshaft gears in their housings and secure them without tightening the bolts. Fit the camshaft timing tools (template) Check that the tools are correctly fitted in the housings in the camshaft.

Tighten the camshaft gear fixing bolts to the recommended torque.

Camshaft gears

Bolt M12 (da Nm) camshaft side 2.9 ÷ 3.2 + 40°

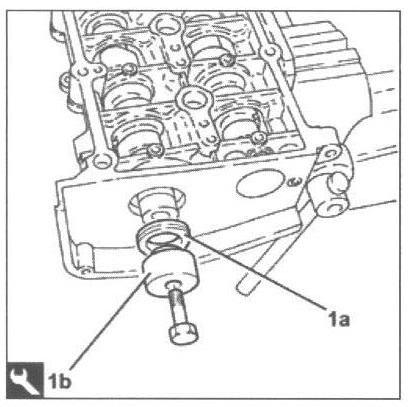

Fit the intake side camshaft plug. Refit the exhaust side camshaft toothed pulley and secure by screwing in the bolt without tightening.

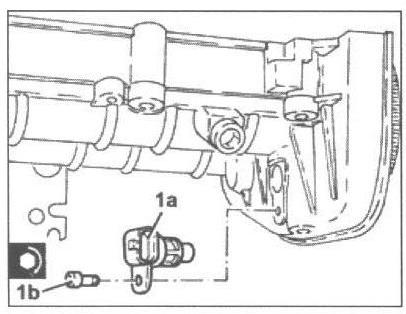

Position the cam angle sensor (1 a) in its housing and secure it tightening the bolt (1b) to the recommended torque .

Cam angle sensor

Bolt M6 (da Nm) 0,8 ÷ 1,0
