Gearbox oil level check
6 Maintenance
Gearbox oil level check
Every 100 operating hours.
Vetus engines are normally equipped with Technodrive or ZF-Hurth gearboxes. Consult the supplied Owners Manual for more details about care and maintenance. In case your engine is equipped with another brand of gearbox follow the instructions given in the supplied owners manual for changing oil and other care and maintenance.

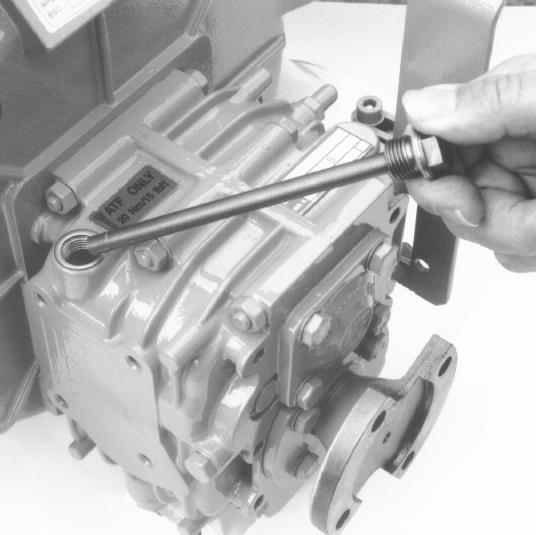

24 Oil level check (Technodrive)
VD01032

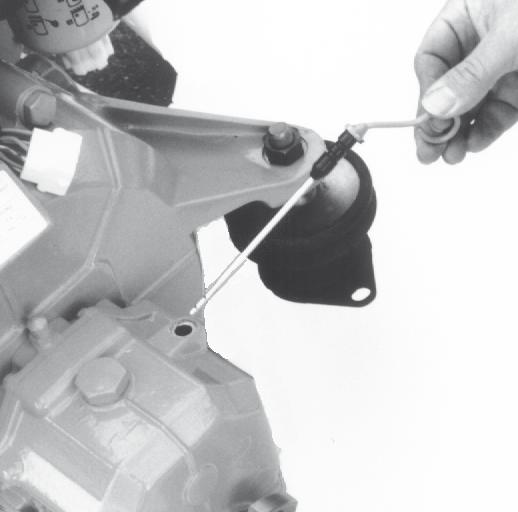

• Take the dipstick out of the gearbox housing by pulling or unscrewing.
• Check the oil level by lowering the dipstick (cleaned) into the hole. The oil level must between the two marks on the dipstick
• If necessary top up by pouring oil into the filler hole or the dipstick hole.
For oil type and specification see page 108.
