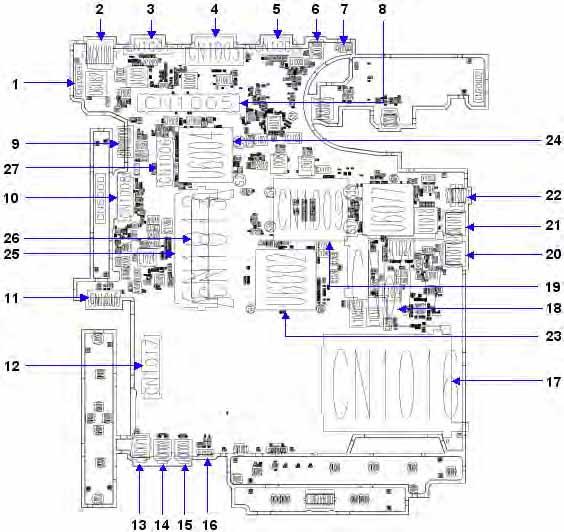

Bottom View

1 CN1004 MB & I/O board CNTR 15 Jack1003 Line-in jack 2 JACK1001 RJ-45 16 D1029 IR receiver 3 CN1001 Serial port 17 CN1016 PCI-E socket 4 CN1003 DVI port 18 CN6032 New card socket 5 CN1002 VGA port 19 CN1009 CPU socket 6 JACK1000 DC IN jack 20 CN1014 USB 7 CN1000 FAN cable CNTR 21 CN1010 USB 8 CN1005 Docking CNTR 22 CN1007 1394 9 CN1018 Second battery CNTR 23 U6002 North bridge 10 CN1008 ODD CNTR 24 U6004 South bridge 11 CN1015 Battery CNTR 25 CN1012 DIMM socket 12 CN1017 HDD CNTR 26 CN1013 DIMM socket 13 Jack710 Headphone jack 27 CN1006 W/LAN card CNTR 14 Jack1002 MIC jack
