Assembly and Disassembly of Travel Motor

1.To ensure safe use

Be sure to follow these precautions.

Warning When transporting the motor with a liftcrane, do not use the tap on top of the base plate to suspend the motor. The motor falling may cause personal injury or damage the machine.

When disassembling the motor for transport, installation or maintenance inspection, make sure to wear a helmet, protective shoes, gloves and safety goggles. When there is little hydraulic oil in the hydraulic tank and the oil surface is near the inlet port or there is no hydraulic oil, do not run the motor. The motor will take in air and may run out of control, which could cause personal injury or damage the machine.

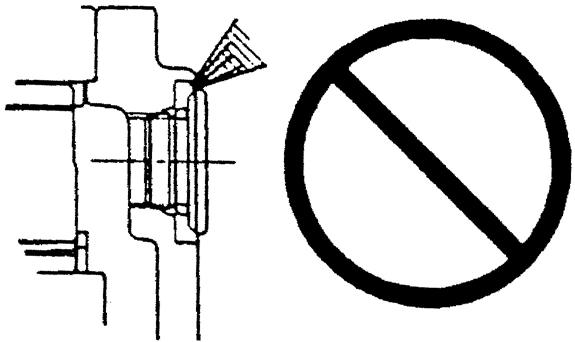

Do not operate the motor when there is no hydraulic oil in the lines. The motor will take in air and may run out of control, which could cause personal injury or damage the machine. For 1 hr. after operating the motor, do not remove the plugs for the oil fill, oil drain and oil check ports for reduction gear lubricating oil. Hot lubricating oil may spray out and cause burns. Hot lubricating oil spraying out and entering the eyes may cause blindness.
