Model 6210 Maintenance Manual

Section 7.Component Procedures

Steering and Controls Control Head Assembly

Control Head Installation

Do not use excessive force when prying on the button or you can damage the locking tabs.

P0011000.wmf

10.Disconnect the connection for the switch on the control card [19].

11.Press the switch out from its mounting in the top cover assembly.

12.Remove the thumb wheel assembly [30].

13.Remove the lift/lower rocker assembly [12] and [13] screws. See Figure7-21

P0011002.wmf

NOTE: Callouts in this procedure refer to the illustration on page7-15

NOTE: Place a finger between the housing [21] and the emergency reverse button [14] to hold the right rocker [33] in place while installing the housing [21].

1.Install the lift/lower rocker assembly [12] and [13]. See Figure7-21.

2.Install the thumb wheel assembly [30].

3.Install the horn button [15] and [41]. See Figure7-20

4.Install the housing [21]. Secure with the screws [22].

5.Connect the cable to the control card [19].

6.Install the top cover [16] and hold firmly in place while securing with screws [4] and [8].

7.Plug the keypad [6] into the handle [3]. Secure with screws [7].

8.Remove the blocks.

9.Reconnect the battery connector. Place the Main ON/OFF Switch in the ON position. If equipped with the optional keypad, enter your PIN-key code and then press the green ON ( | ) key.

10.Test the operation of the truck.

Publication: 1146947, Revised: 12 Jan 2017 7-17

Section 7.Component Procedures

Model 6210 Maintenance Manual

KeypadSteering and Controls

Keypad

A keypad is offered as optional equipment. The keypad allows access to the lift truck through a personalized PIN number. Keypads may be added in the field to lift trucks originally manufactured without one. Factory authorization must be granted before the addition of any equipment on the lift truck.

Keypad Removal

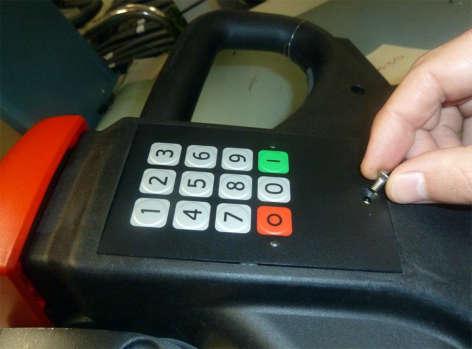

3.Carefully move the keypad toward the handle stem to release the keypad mounting tabs from the control handle head.
