01 STABILIZER CYLINDER - LOCK VALVE (SIDE SHIFT) - EU

1.21.4 01 p1 12/06

REAR SUPPORT (SIDE SHIFT) - EU

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 85801395 2 14471780 3 85828100 4 85801396 5 83416242 6 1 85828099 7 81875248 8 85700728 9 83910645 10 2 87356803 11 15871934 12 11200679 13 12164521 14 85801373 15 85825426 16 11061876 4 CAP, WASHER 4 O-RING, -334, 70 Duro, 2.6" ID x .210" Thk 4 RING 4 PISTON 2 NIPPLE, LUBE 4 SHOCK ABSORBER 4 SEAL, HYD-CYLINDER 2 BUSHING 2 BUSHING 1 PLATE, RETAINING 12 BOLT, Hex, M24 x 140, 10.9 12 WASHER, LOCK 12 NUT, M24 x 2, Cl 10, M24x2 2 PLATE 2 COVER 2 RING, SNAP, M78, Int

(1) Includes 1 To 4 (2) Includes 7, 8, 9, 17

B115 TIER 3

1.80.9 01 p1 01/08

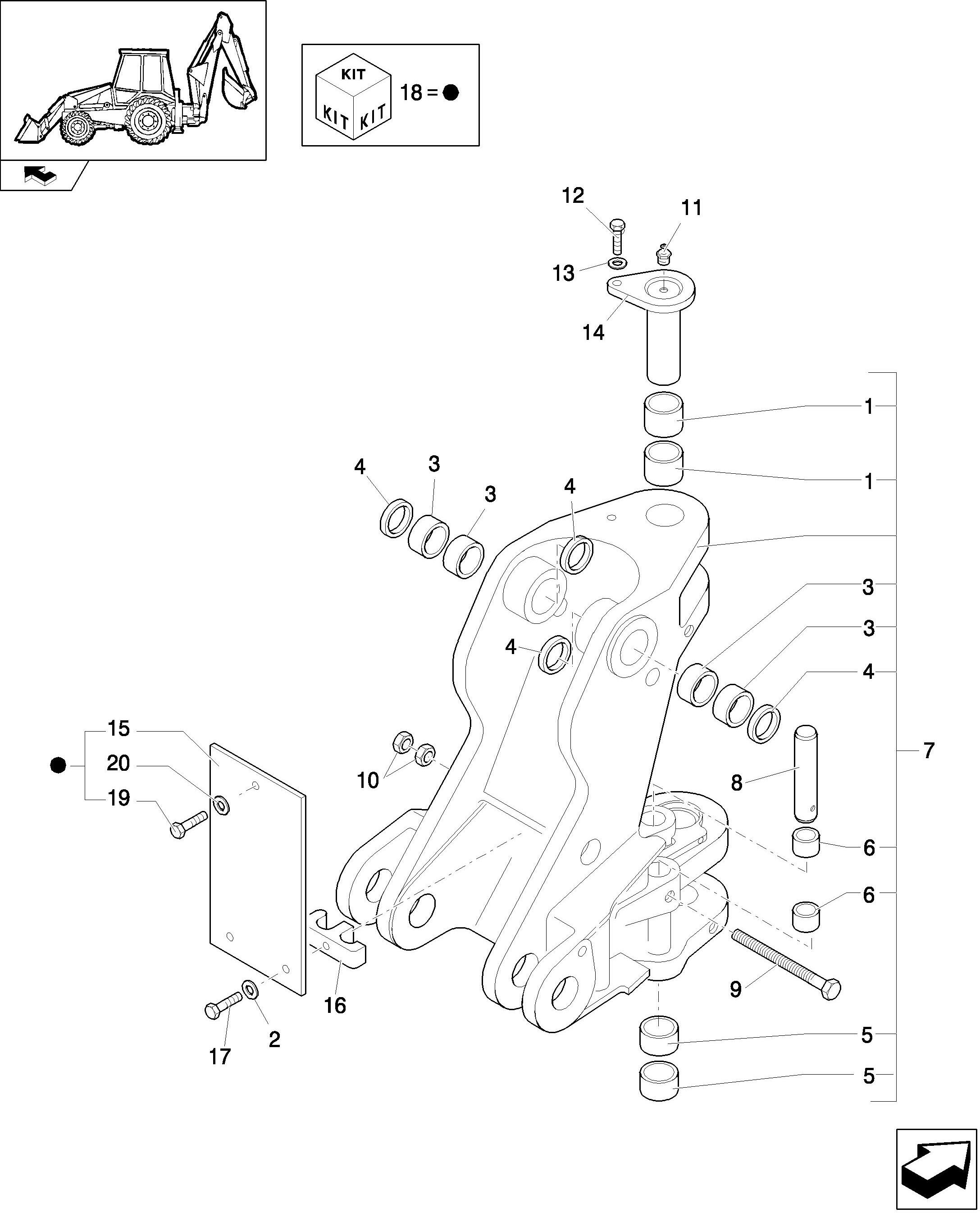

SWING POST ASSEMBLY, BUSHINGS & PINS

1.80.9 01 p1 01/08

SWING POST ASSEMBLY, BUSHINGS & PINS

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 85803196 2 11190579 3 85801029 4 85801025 5 85803197 6 85803193 7 1 85803623 8 85803192 9 87363478 10 10717421 11 83416242 12 85802397 13 85802396 14 85801076 15 85805137 16 87310285 17 11107321 18 85805648 19 16043621 20 11193979 2 BUSHING 2 WASHER, SPRING, Belleville, M10.5 4 BUSHING 4 SEAL, HYD-CYLINDER 2 BUSHING 4 BUSHING 1 SUPPORT, P/N 85801028 in Primer colour 2 PIN, Swing Cylinder 2 SCREW, M10x270 2 NUT, Thin, M14 x 2, Cl 05, M14 3 NIPPLE, LUBE, 1/8"-27 1 SCREW, M16X40 1 WASHER 1 PIN 1 PLATE 1 CLAMP 2 BOLT, Hex, M10 x 55, 8.8 1 KIT 1 BOLT, Hex, M8 x 25, 8.8 1 WASHER, SPRING, Belleville, M8.4

(1) Includes 1, 3 To 6

B115 TIER 3

1.80.9 02 p1 03/07

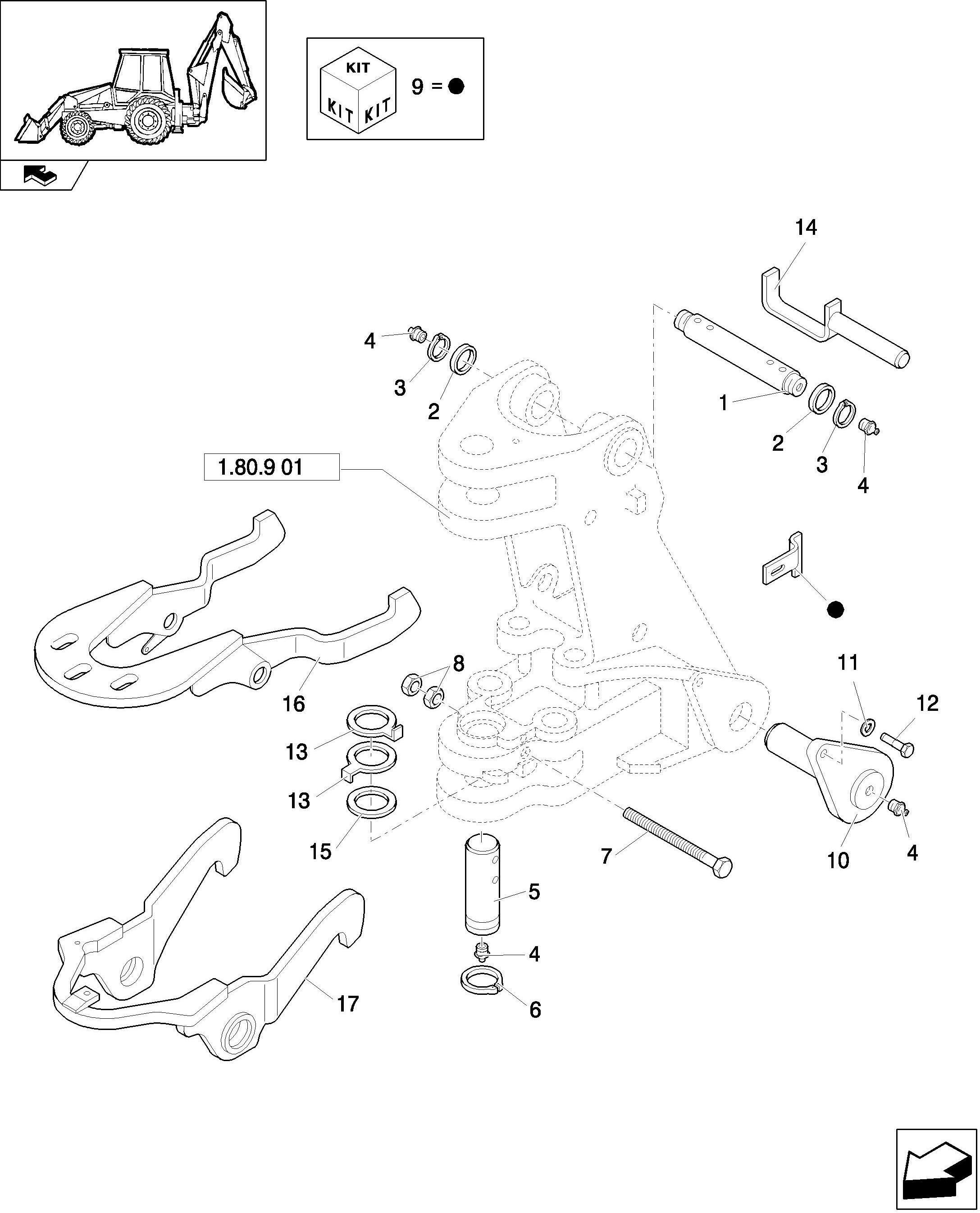

SWING POST PINS & TRANSPORT LOCK HOOK

1.80.9 02 p1 03/07

SWING POST PINS & TRANSPORT LOCK HOOK

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 85801026 2 83910977 3 83911019 4 83416242 5 85801079 6 85803198 7 15201934 8 10717421 9 85816776 10 85802872 11 85802396 12 85802397 13 85801191 14 1 87610829 14 2 87610834 15 8274447 16 1 85803637 17 3 85819493 1 PIN 2 SPACER, M45X66X3 2 RING, SNAP 3 NIPPLE, LUBE, 1/8"-27 1 PIN 1 RING, SNAP 1 BOLT, Hex, M14 x 170, 10.9, M14x170 2 NUT, Thin, M14 x 2, Cl 05, M14 1 KIT 2 PIN 1 WASHER 1 SCREW, M16X40 2 SPACER 1 PIN 1 PIN 1 SHIM 1 HOOK 1 HOOK

(1) Only for Trans. Lock Hydraulic (2) Only for Trans. Lock Mechanic (3) Only for Trans. Lock Mechanic

B115 TIER 3

1.88.11/1A 01 p1 01/07

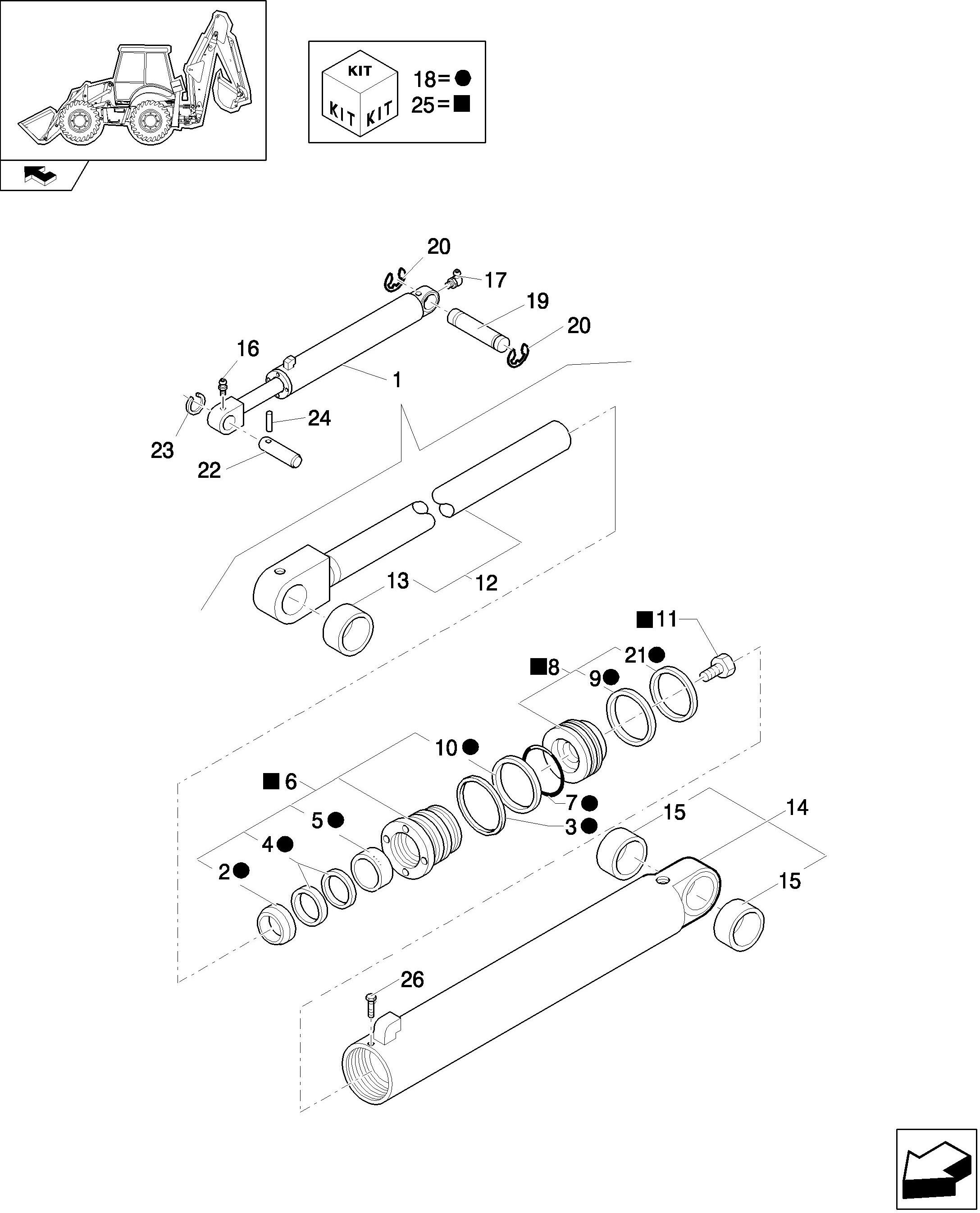

LIFT CYLINDER

1.88.11/1A 01 p1 01/07

LIFT CYLINDER

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 87315524 2 87414969 3 87440401 4 87414970 5 87414966 6 1 87415116 7 87414341 8 2 87405859 9 87414333 10 87421144 11 87428020 12 3 85800013 13 87450315 14 4 85800011 15 81901897 16 83416242 17 81818824 18 87428628 19 87553363 20 47049094 21 87408634 22 85804538 23 85802974 24 85804534 25 87424196 26 85827128 2 HYDRAULIC CYLINDER, ASSY 2 SEAL 2 BACK-UP RING 2 KIT, SEALS 2 BEARING, NYLON 2 GLAND 2 RING 2 PISTON 2 SEAL 2 O-RING 2 SCREW 2 ROD 2 BUSHING 2 BARREL 2 BUSHING 2 NIPPLE, LUBE 2 NIPPLE, LUBE, 90º, 1/8"-27 NPT 1 KIT, SEALS 2 PIN 4 CIRCLIP 2 Ring, Wear 2 PIN, ROLL 2 RING 2 PIN, ROLL 2 KIT, REPAIR 1 SCREW

(1) Includes Ref. 2 To 5, 10 (2) Includes Ref. 9, 21 (3) Includes 13 (4) Includes Ref. 15

B115 TIER 3

1.88.11/2A 01 p1 01/07

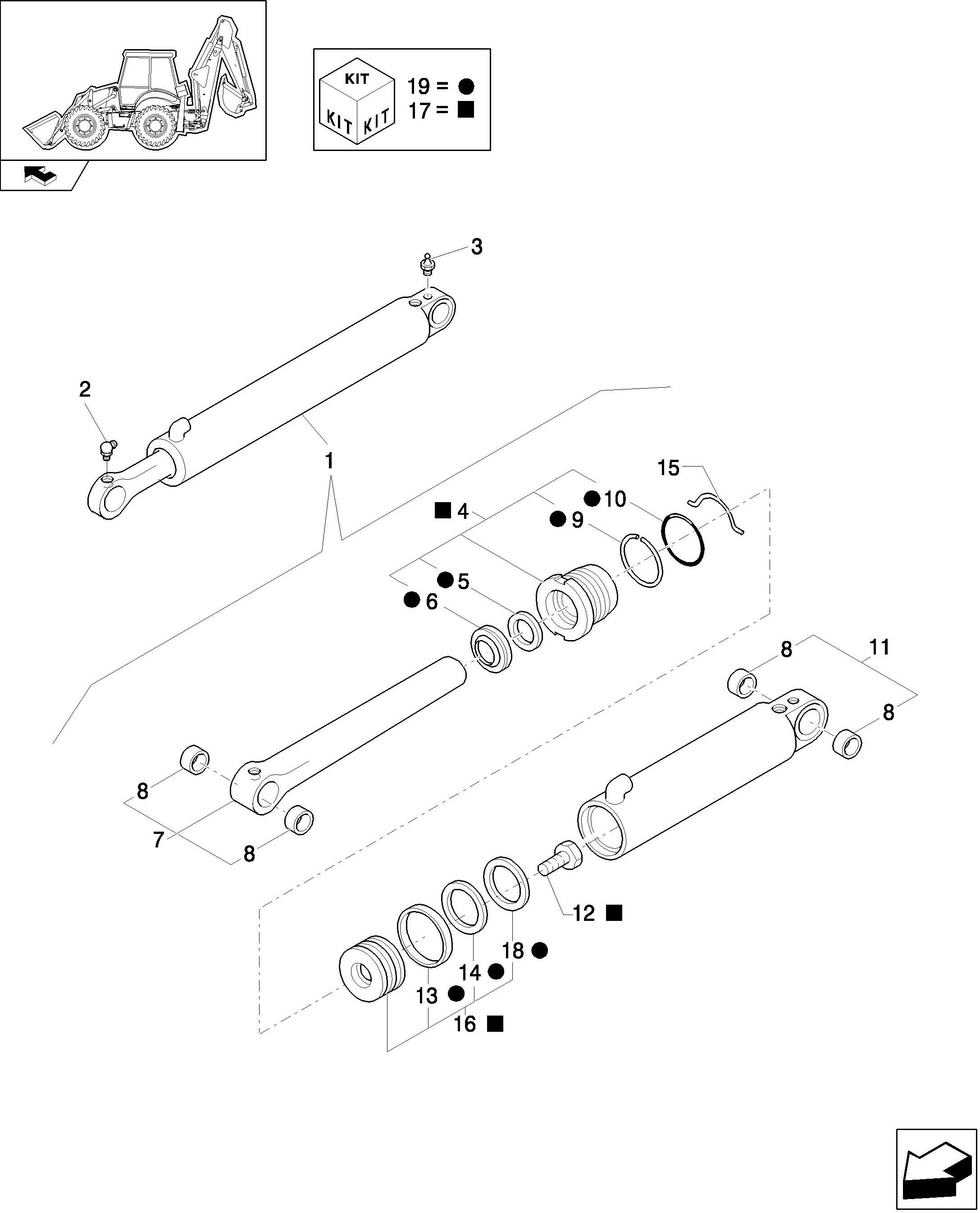

LOADER BUCKET CONTROL CYLINDER

1.88.11/2A 01 p1 01/07

LOADER BUCKET CONTROL CYLINDER

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 87315523 2 81818824 3 83416242 4 1 87432511 5 87414970 6 87414969 7 2 85800053 8 87450315 9 87440396 10 87421143 11 3 85800051 12 87428020 13 87414340 14 87414332 15 83937315 16 4 87445497 17 87445498 18 87408633 19 87432515 1 HYDRAULIC CYLINDER, ASSY,LOADER BUCKET 2 NIPPLE, LUBE, 90º, 1/8"-27 NPT, 1/8-27-90GR 4 NIPPLE, LUBE, 1/8"-27 2 GLAND 2 KIT, SEALS 4 SEAL 2 ROD 2 BUSHING 2 BACK-UP RING 2 O-RING 2 BARREL 2 SCREW 2 RING 2 SEAL 1 WIRE, RETAINING 2 PISTON 1 KIT 2 Ring, Wear 1 KIT, SEALS

(1) Includes 5, 6, 9, 10 (2) Includes 8 (3) Includes 8 (4) Includes 13 To 15

B115 TIER 3

1.88.11/3A 01 p1 01/07

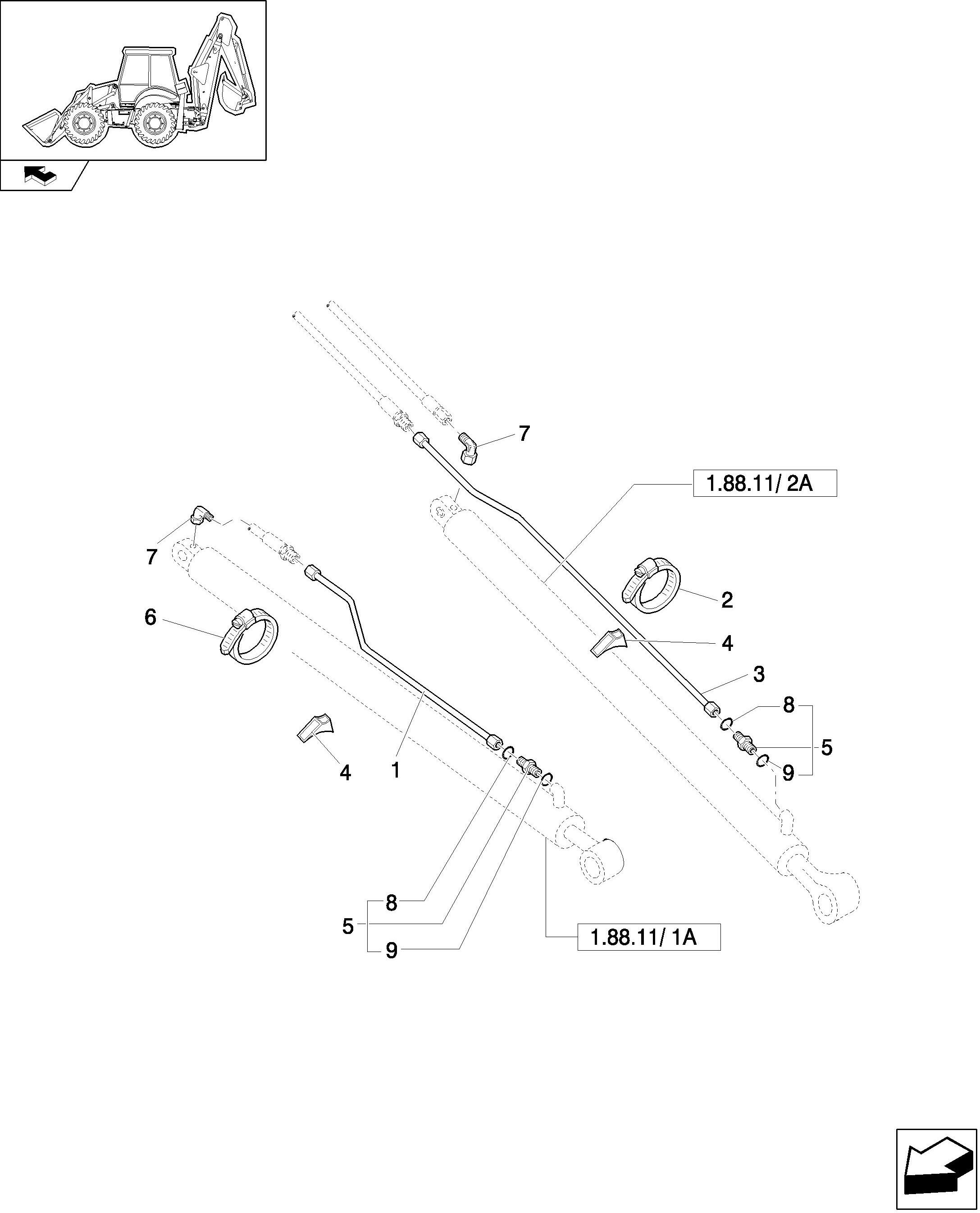

LIFT CYLINDER AND BUCKET PIPES
