01 SINGLE BATTERY

0.31.5

HEAT EXCHANGER - ENGINE

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 4899019 2 4899566 3 2853781 4 4896404 5 4895045 6 17916280 7 4896410 8 4893391 9 4896406 10 2830559 11 4896409 15 SCREW, Hex Flg, M8 x 1.25 x 35 1 Head, Filter, - ASSY 1 PLUG, - ASSY 1 PLUNGER 1 SPRING 1 GASKET 1 VALVE, PRESSURE RELIEF 1 ADAPTER 1 COOLER, OIL 1 GASKET 1 GASKET p1 06/07

B115 TIER 3

0.32.0

p1 06/07

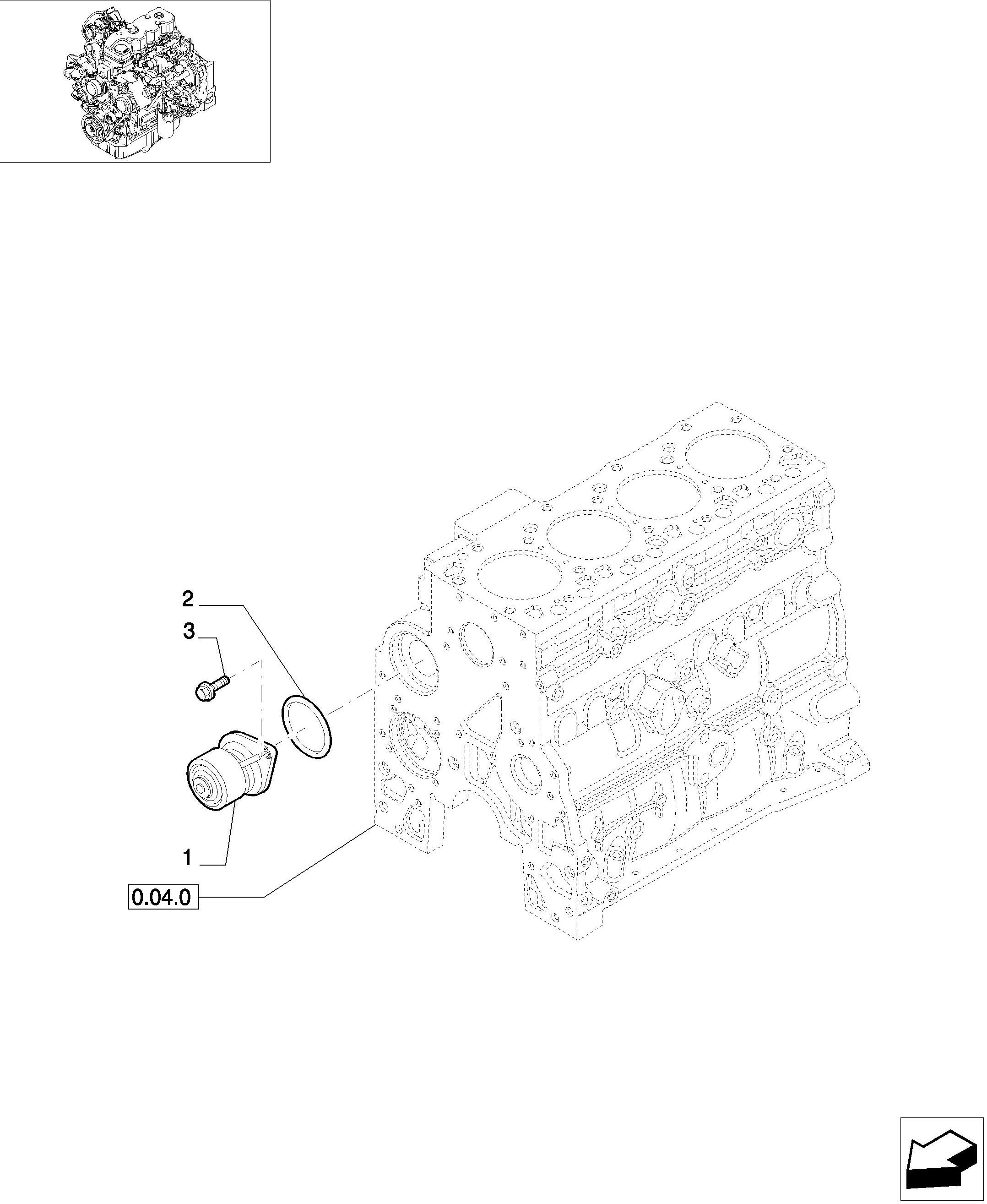

WATER PUMP

0.32.0

WATER PUMP

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 4891252 1 2852114 2 2852047 3 4899079 1 PUMP, WATER, (F4HE9484C*J103) 1 PUMP, WATER, (F4HE9484C*J102) 1 SEALRING 2 SCREW, Hex Flg, M8 x 1.25 x 25 p1 06/07

B115 TIER 3

0.32.3

p1 06/07

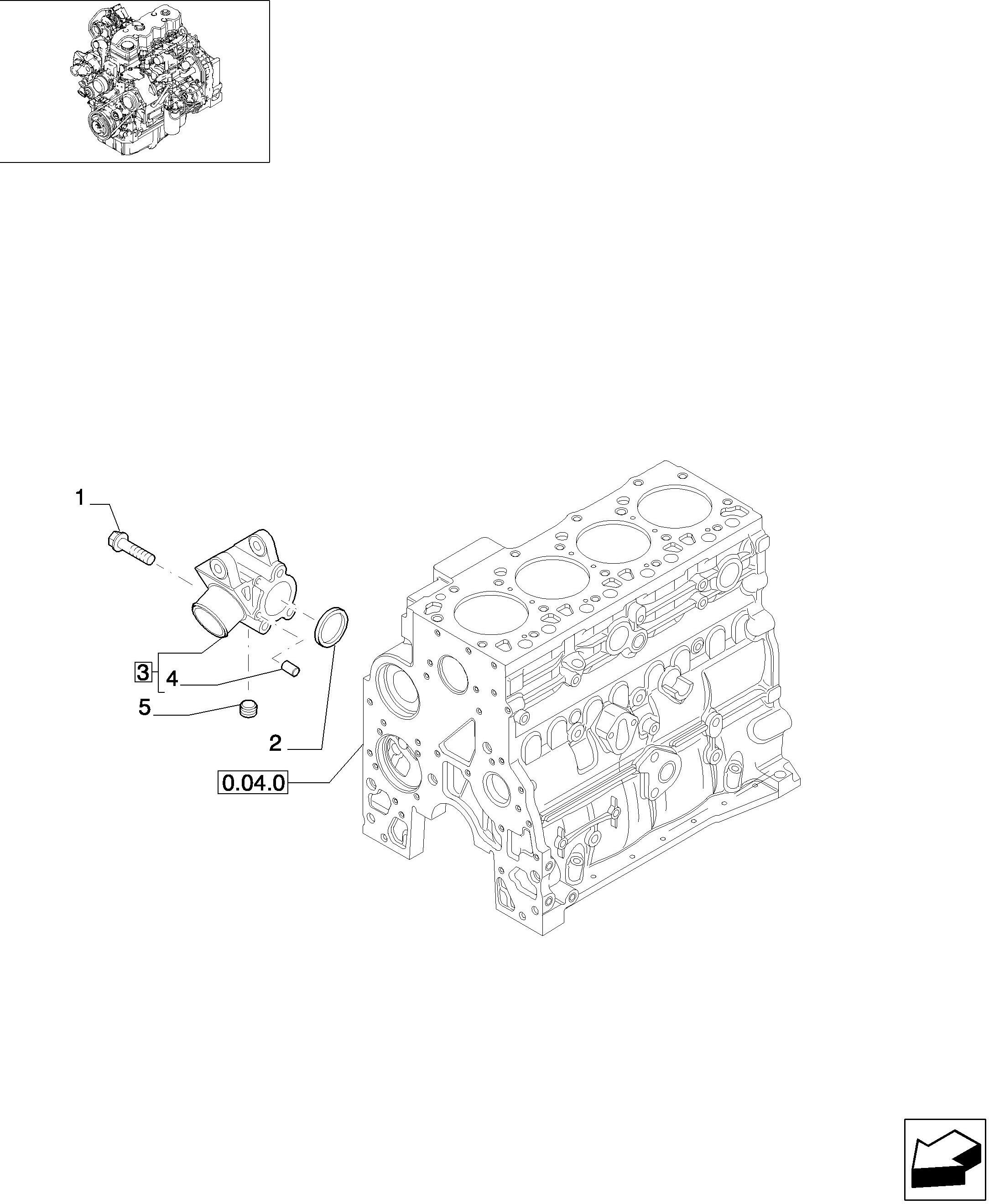

COOLING SYSTEM - ENGINE

0.32.3

COOLING SYSTEM - ENGINE

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 4899109 2 2854072 3 2855776 4 2830894 5 2852511 3 SCREW, Hex, M10 x 1.5 x 80 1 O-RING 1 SUPPORT, - ASSY 2 DOWEL 1 PLUG p1 06/07

B115 TIER 3

0.32.4

p1 01/07

PIPING - ENGINE COOLING SYSTEM

0.32.4

PIPING - ENGINE COOLING SYSTEM

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 4895392 2 4895393 3 4895080 4 4895082 5 2854491 6 4895078 7 4895079 8 4895323 9 4895625 10 4893036 1 PLUG, - ASSY 1 O-RING 1 PLUG, - ASSY 1 O-RING 1 PLUG 2 PLUG 1 PLUG, M22X1.5 1 SCREW, - ASSY 1 O-RING 1 PLUG p1 01/07

B115 TIER 3

0.32.6

p1 06/07

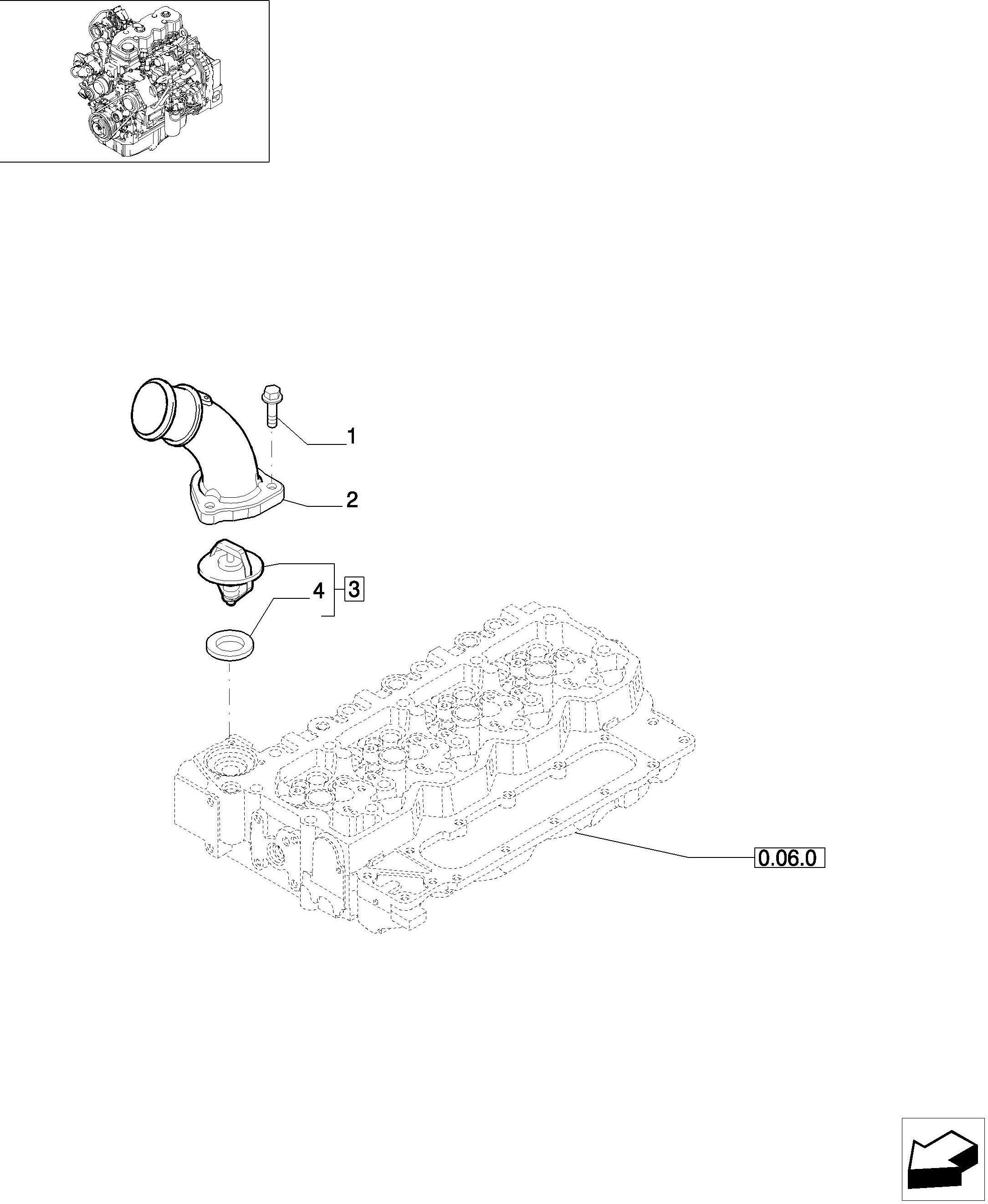

THERMOSTAT - ENGINE COOLING SYSTEM

0.32.6

THERMOSTAT - ENGINE COOLING SYSTEM

REF FN PART NUMBER YR/SN QTY DESCRIPTION

1 4899110 2 2855823 3 2852471 4 2852473 3 SCREW, Hex Flg, M6 x 1 x 20 1 COVER 1 THERMOSTAT, - ASSY 1 GASKET p1 06/07
