REMOVAL FROM MACHINE

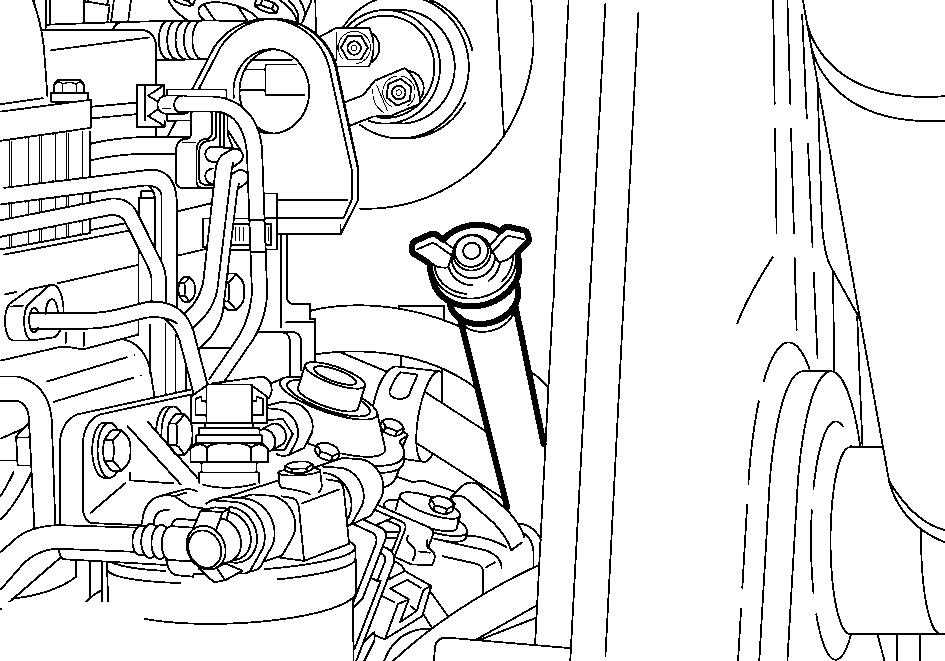

LEVEL CHECK The oil level check should be carried out with the engine running at low speed and at normal operating temperature. Move the machine to a level and firm ground. Raise the loader attachment and assemble the safety support strut. Place the backhoe attachment in the road travel position. Place the direction-of-travel lever and gearshift lever in neutral position. Immobilize the machine by means of the parking brake. Open and raise the engine guard and lock it in opened position by means of the safety lock on the left-hand gas spring. Extract the dipstick (1), clean it with a clean cloth and completely insert it into the tube, then take it out again. If the oil level is below the mini mark, top up. Stop the engine. Unlock the safety lock and close the engine guard.

OIL CHANGE Move the machine to a level and firm ground. Raise the loader attachment and assemble the safety support strut. Place the backhoe attachment in the road travel position. Place the direction-of-travel lever and gearshift lever in neutral position. Immobilize the machine by means of the parking brake. Stop the engine and remove the starter key. Open and raise the engine guard and lock it in opened position by means of the safety lock on the left-hand gas spring. Remove the dipstick (1). NOTE: change the oil while the transmission is still warm; the oil will flow more easily. Place a container with suitable capacity under the drain plug (2). Unscrew and remove the drain plug. Let the transmission oil drain.

Re-install the drain plug (2). Fill with new oil of specified type through the dipstick hole.

NOTE: transmission oil capacity 20.8 litres (4.57 gal). Reassemble the dipstick (1). Check the oil level by means of the dipstick and, if necessary, add more oil. Drive the machine for a few minutes in first and second gear, then stop the engine. Check the oil level again by means of the dipstick and, if necessary, add more oil.

GREASING

Tecnolube POLYMER 400 grease Transmission oil

*: no grease, no oil
