1750RT - TRACKS TRACK DRIVE MOTOR

And Sprocket

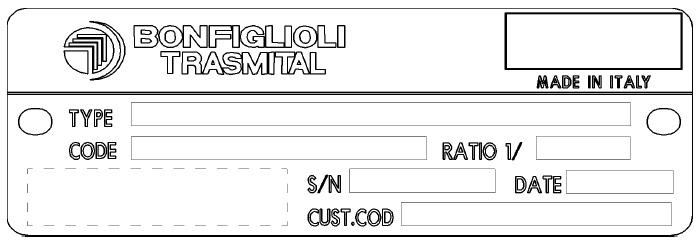

IMPORTANT: Early- and late series track drive motors are not interchangeable and must be installed with the identical track drive motor on the opposite side. If ordering only one drive motor, be sure to refer to the ID plate that is fastened to the face of the drive motor. The part number for the drive motor is stamped in the "CUST.COD" box; be sure to order the same track drive motor already on the machine. If ordering both drive motors, be sure to order the same part number for both sides.

1750RT (T4) S/N 811221 and up and 1750RT (iT4) S/N 10802-131000 were originally equipped with track drive motor P/N 50305572.

Units previous to the serial numbers listed were originally equipped with track drive motor P/N 273269.

0150305572MOTOR, DRIVE 1049cc W/FLANGE2

(refer to "IMPORTANT" note)

(Late Series)

02273269MOTOR, DRIVE 1049cc W/FLANGE2

(refer to "IMPORTANT" note)

(Early Series)

03274604SHCS M14-2x50 C12.9PSPDIN9122

1750RT - TRACKS

Track Drive Motor And Sprocket

0450312342SPROCKET, DRIVE (17 teeth)1

SN 131301 and up; EU—SN 511051 and up; RW—SN 031051 and up.

0550312632SPROCKET, DRIVE (16 teeth)1

SN 131300 and before EU—SN 511050 and before; RW—SN 031050 and before.

06274603SHCS M16-2X45 C12.9 PSPDIN9128

0750309811GAUGE, SPROCKETWEAR1

(included with service kit)

SN 131300 and before EU—SN 511050 and before; RW—SN 031050 and before.
