Operating elements

Lifting the excavator

Raise arm and dozer blade.

Fasten rope, chains, etc., to the boom and to the dozer blade on the left and the right (3-point suspension).

To prevent damage, ensure there is enough distance between the ropes/chains and the excavator. The fastening points are indicated with stickers. Ensure the ropes/chains etc., cannot come undone. Ensure the ropes/chains etc., are rated strong enough to support the weight of the excavator.

Minimum force required per lift: 9 tonf (80 kN)

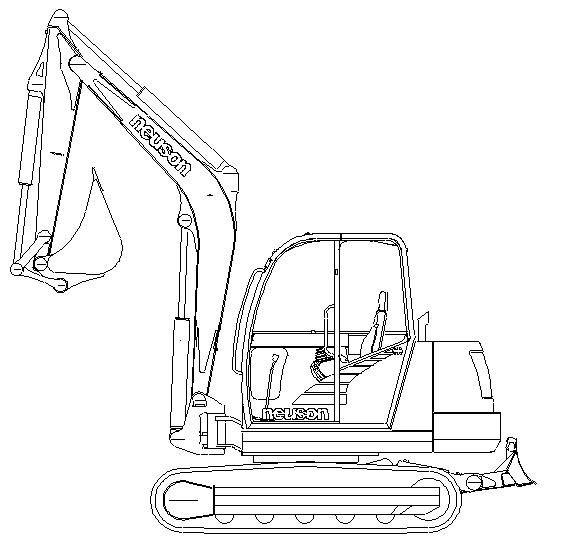

L1 = about 9’ 0”. (2.75 m) L2 (2X)= about 15’ 7” (4.75 m)

P1 ...Fastening point boom

P2 ...Fastening points left and right side of dozer blade
