Malfunction displays: Descrip- tion

Driver's area controls

Malfunction displays: Description

Malfunction displays: Description

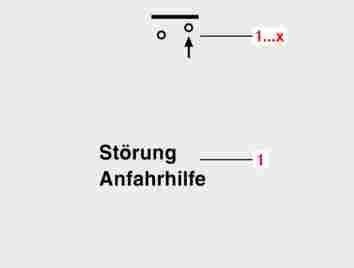

M54_30-0099-71 A distinction is made between major and minor malfunctions. Malfunctions that have occurred are indicated on the screen by a malfunction display. Malfunction displays always consist of a symbol (1...x) and a malfunction text (1). These are displayed one under the other on the screen.

Note:

The malfunction texts are displayed in the language selected.

Major malfunctions

M68_00-0203-71 Major malfunctions are displayed immediately in conjunction with red warning lamp (4) and remain active until the malfunctions themselves have been rectified. A warning signal also sounds. It is not possible to clear the malfunction display or switch to a different display mode.

Danger.

Risk of accident. Red warning level malfunctions (4) indicate that the operating safety or roadworthiness of the bus is at risk. The driving and braking characteristics of the bus may change. The bus must be stopped immediately (traffic conditions permitting) and an EvoBus Service Partner must be notified.

Minor malfunctions

Minor malfunctions are subdivided into warning levels A, B and C. Minor malfunctions from warning levels A and B are displayed immediately as they occur in conjunction with yellow warning lamp (5). No warning signal sounds.
