Jacking points, rear
M00_00-0534-01
Raise the bus at the jacking points on the centre axle shown in the illustration.
Caution:
Never position the jack at the centre of the axle casing.
Jacking points, rear
Danger.
Secure the bus against rolling away. Apply the parking brake and chock the front wheels.

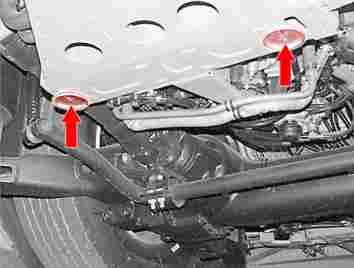

M00_00-0530-01
Raise the bus at the jacking points at the rear of the bus underbody shown in the illustration. Practical advice
Jacking points, rear

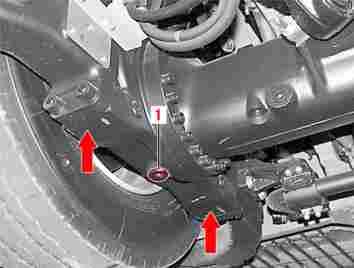

M00_00-0531-01
Raise the bus at the jacking points on the rear axle shown in the illustration.
Caution:
Never position the jack against oil drain plug (1) or in the centre of the axle casing.
