7 Lubrication
Chapter 7
LUBRICATION
GENERAL INFORMATION
WARNING
NEVER lubricate or service this unit when any part of the machine is in motion. ALWAYS exercise the MANDATORY SAFETY SHUT-
DOWN PROCEDURE (SAFETY chapter p. 9)
before lubricating or servicing this equipment. Hydraulic System Reservoir
NOTE: The MAINTENANCE chapter in this manual has provisions for recording the dates and hourmeter readings after lubrication or other service has been performed; use those spaces to keep a log for maintaining a current service interval record. Proper routine lubrication is an important factor in preventing excessive part wear and early failure.
LUBRICANTS
The chart on this page lists the locations, temperature ranges and types of recommended lubricants to be used when servicing the machine. Refer to the separate engine manual for additional information regarding recommended engine lubricants, quantities and grades required. NOTE: Refer to Operator Services topic in the Service and Storage chapter of this manual for detailed information regarding periodic checking and replenishing of lubricants.
GREASING
Refer to the illustration and listing on the next page for fitting locations. Wipe dirt from the fittings before greasing them to prevent contamination. Replace any missing or damaged fittings. To minimize dirt buildup, avoid excessive greasing. Use a Mobil DTE 15M, or an equivalent that contains anti-rust, anti-foam and anti-oxidation additives and conforms to ISO VG46. Capacity:
45 Gallons (170 Liters) Transfer Case
Use SAE 40W motor oil. Capacity: 3 Quarts (2.8 Liters) All Grease Fittings
Use No. 2 Lithium-based Grease
Engine Crankcase Oil
Ambient Temperature Grade*
-22°F - 104°F(-30°C - 40°C) SAE 5W-30 -13°F - 104°F(-25°C - 40°C) SAE 10W-30 -13°F - 122°F(-25°C - 50°C) SAE 10W-40 -4°F - 122°F(-20°C - 50°C) SAE 15W-40

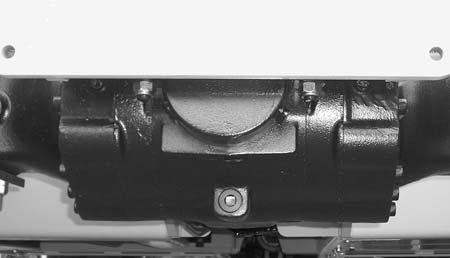

*API Service Classification: CJ-4/Cl-4 PLUS/CI-4 *API Service Classification for first 100 hours on new or rebuilt John Deere engines: CE, CD, or CC Capacity: 15.5 quarts (14.7 Liters) Axle Gear Oil
Use API-GL-5 80W-90 Differential Capacity: 12 Quarts (11.3 Liters) Planetary Capacity (each side): 1.4 Quarts (1.3 Liters) Transmission Oil
Use Sunco Multi-ATF or equivalent Capacity: 12 Quarts (11.3 Liters)

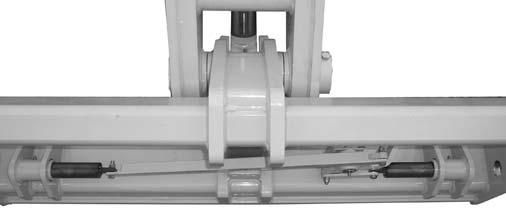

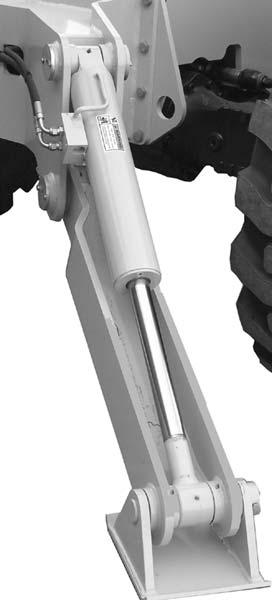

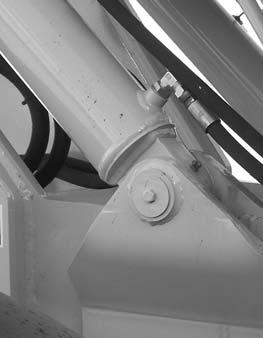

5 6
8
7

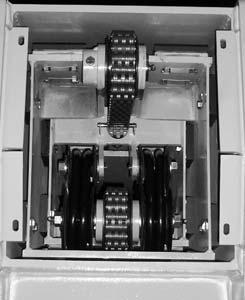

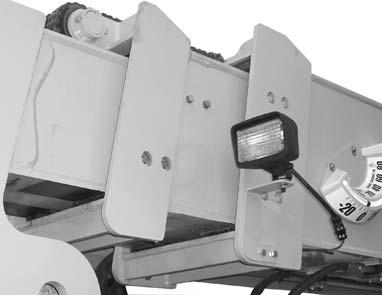

Three-Section Boom
8

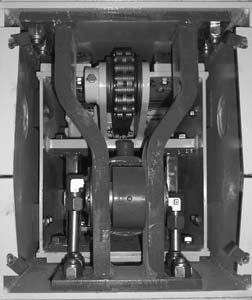

Four-Section Boom
7
