6 - PERMANENT 4 WHEEL SHAFT DIS-ASSEMBLY AND RE-ASSEMBLY

6-1 6-2

The permanent 4 wheel drive shaft.

6-3 Using the appropriate bearing puller remove the front and rear bearings. (Tool No. 563390)

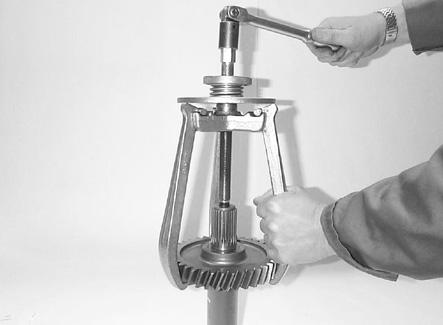

Remove the 4 wheel drive gear using suitable pullers or a press.

6-4

Replace the 4 wheel drive gear using Loctite (ref.: 548110), on the shaft splines. Then using a suitably sized tube re-fit the front and rear bearings.

6-5

Using a suitably sized tube re-fit the front and rear bearings.
