Controls

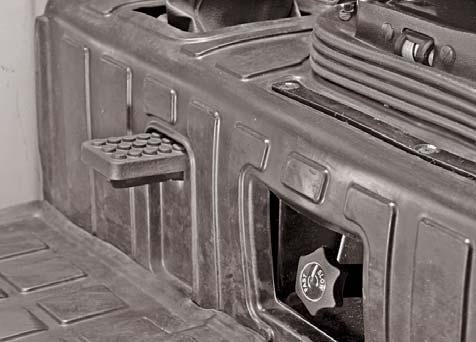

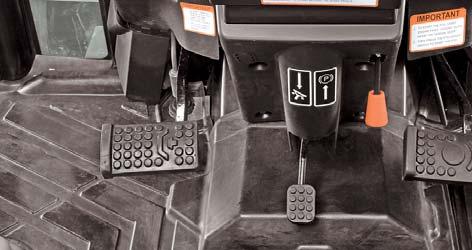

Differential Lock Pedal

This pedal located on the LH side of the Operator's Seat when depressed by heel pressure, operates a differential lock mechanism which locks both of the axle shafts together.

Its purpose is to overcome completely one-wheel slip encountered under bad field conditions, especially when plowing or when hauling heavy trailers on slippery surfaces.

The condition where one wheel spins completely uselessly digging itself Into the soil while the other stands idle, is thus overcome resulting in saving fuel, brake wear and tire abuse.

Differential lock is designed for occasional use. Do not attempt to lock differential while, a.The tractor is in high speed. b.Turning tractor.

Clutch

Tractor is fitted with hydraulic control valve to engage / disengage drive to transmission. For Independent PTO a separate hydraulically operated clutch pack is mounted on the PTO Shaft.

The Differential Lock design is solely for the use with pneumatic tires. If steel wheels, girdles etc. are fitted, the differential lock should be removed as a precaution.

Attempting to turn the tractor while differential lock is engaged may result in damage to transmission.

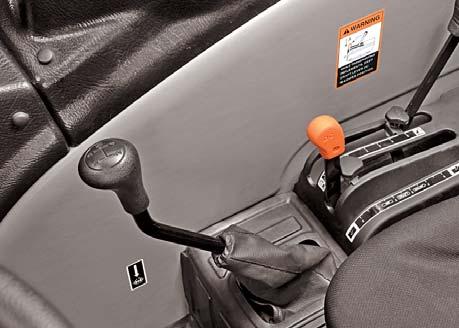

F-R Shuttle Shift Lever

This lever is located on LH side of Steering. This lever enables to choose the direction of tractor motion and has three positions as follows:

1.Forward– for forward motion of tractor.

2.Reverse– for rearward motion of tractor.

3.Neutral

The lever can be engaged as follows.

1.Lift the Forward / Reverse shuttle shift lever from its neutral position and shift to choose Forward or Reverse mode as desired.

2.Forward / Reverse shifts can be made without depressing clutch pedal.

Refer Specification for road speed of tractor in different positions.

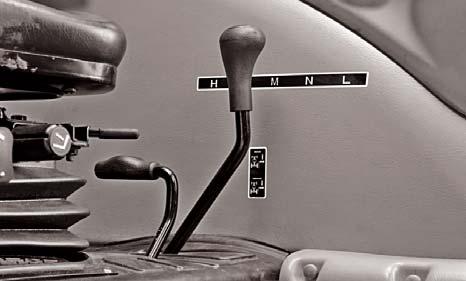

Range Shift Lever

It is located on LH side of operator’s seat. This lever has 4 positions as follows.

1.Low- For low speed range

2.Neutral

3.Medium- For medium speed range

4.High- For high speed range speed range

This lever enables 3 different speed options for every speed gear selection. It can be engaged as follows,

1.Depress the clutch pedal and stop tractor motion completely.

2.Choose High / Medium / Low range to match work application.

3.Release clutch pedal gradually.

Refer Specification for road speed of tractor in different positions.

Speed Shift Lever

This lever is located on RH side of operator’s seat. This lever has five positions. This lever enables 4 different speed options within a particular “Range Gear” selection. The road speed increases in higher gears.

1.Depress Clutch pedal completely.

2.Choose any one gear from 1 to 4 to match work application.

3.Release clutch pedal gradually. The gears can be shifted on-the-go.

Refer Specification for road speed of tractor in different positions.
