INSTRUMENTS AND CONTROLS

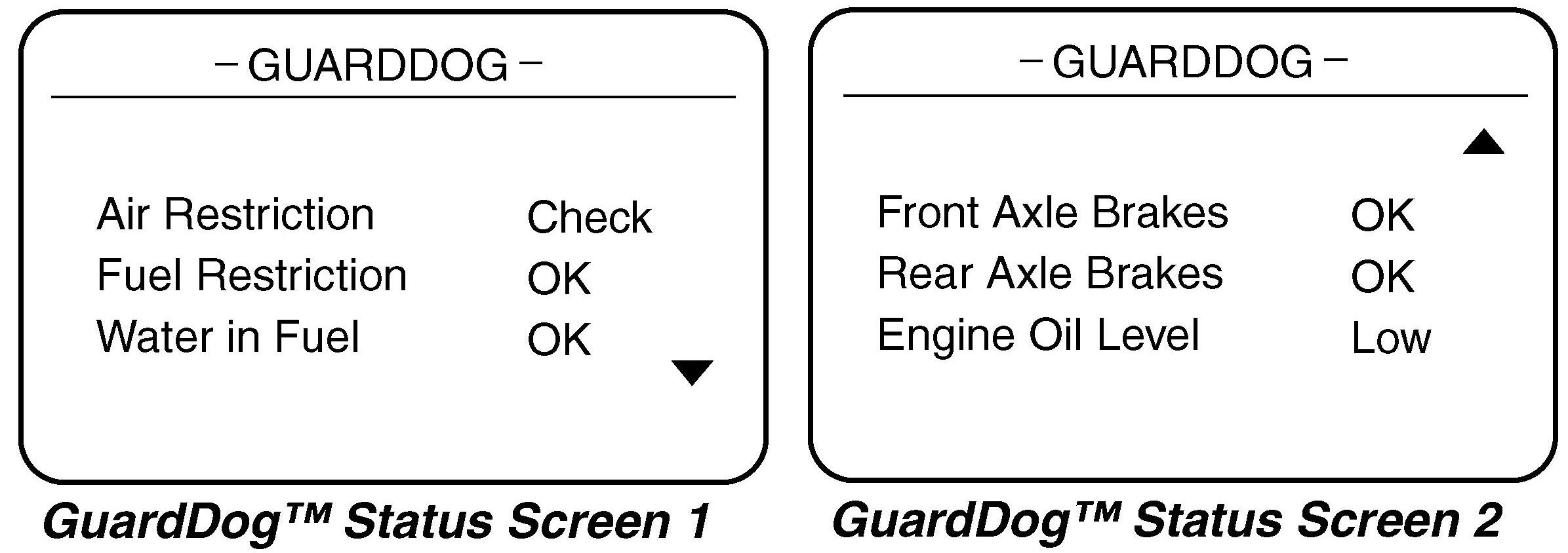

• Manually through the GuardDog™ Status screen

C0029145

For more information GuardDog™, - Pilot® display and Basic Display , please refer the V - MAC® Operator ’ s Guide, TS898.

20. W ater Fuel Indicator (Amber) (If Equipped) – Illuminates when water accumulates the primary fuel filter sediment Stop the engine and drain the fuel from the sediment

21. Engine Over Speed Indicator (Red) – Illuminates when maximum engine RPM exceeded.

22. T railer Anti - Lock Brake System (ABS) Indicator (Amber) – Indicates ABS the light turns and stays a malfunction For additional information operating ABS - equipped refer - Lock Brake System (ABS)” , page 157 the Operation

Note: When ABS malfunction anti - lock braking the fected wheel(s) will disabled and normal braking will return; the other wheels will retain anti - lock Operate the vehicle normally and have the ABS system serviced correct the fault.

23. Cruise Control Indicator (Green) – Indicates that cruise control engaged.

24. Power T ake - Off Operating Indicator (Green) – Indicates O

25. Right T urn Signal Indicator (Green) – Flashes green when turn signal activated.

26. Inter - Axle Power Divider Lockout Indicator (Amber) – Indicates the Inter - Axle Power Divider Lockout

27. Reverse Indicator (Amber) – Indicates that the transmission

28. Automatic T raction Control TC) Indicator (Amber) – Indicates that A operating and will flash when deep mud and snow mode.

29. Neutral Indicator (Amber) – Indicates that the transmission

30. Fasten Seat Belt W arning Indicator (If Equipped) (Red)

Instruments And Controls

31. High Exhaust System T emperature (HEST) Icon when (HEST) illuminates not park operate the vehicle near any flammable

32. Fuel Gauge – Registers the fuel level the supply tank(s).

33. Speedometer Indicates road speed miles and/or kilometers per hour .

34. T achometer – Indicates engine speed revolutions per minute T achometer readings should used a guide for well prevent engine damage due

36. Air Application Gauge (If Equipped) – Indicates the air pressure being delivered the service brake chambers the tractor (and trailer , equipped);

Air Suspension Gauge (If Equipped) – Indicates the air pressure being delivered the air suspension system 689 kPa (100 psi range).

37. Hand - Control Brake Lever – Pull down activate the trailer the rear axle brakes the case a platform

W Arning

The hand - contr brake system must NOT used for parking. NOT use apply service brakes while vehicle motion. not leave the vehicle while hand - contr brake applied.

38. Front Rear Axle and 39. Rear Rear Axle Oil T emperature Gauges (If Equipped) – Indicate rear axle oil temperature.

Caution

The maximum safe oil temperatur e for MACK r ear axles 121°C (250°F). Continued with oil above this temperatur e will cause rapid deterioration the s lubricating operties and NOT r ecommended. Consult the vendor manual for non - MACK components.
