REPLACING A BUCKET

Removal

STEP 1 Place the bucket flat on flat, horizontal ground. Operate the attachment controls so that the arm/bucket linkage pin is not gripped by the weight of the dipper. STEP 2 Stop the engine and remove the starter switch key. STEP 3

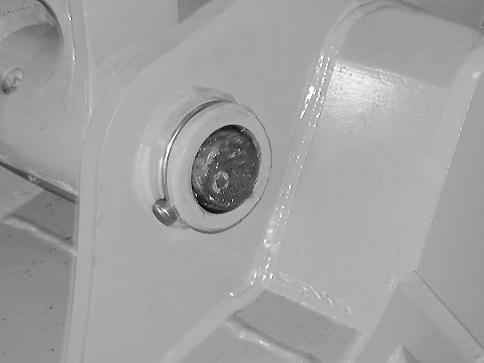

CD00E096 Remove the retaining rings and pins. STEP 4 STEP 5

CD00E099 Start the engine, disengage the attachment from the bucket and retain the linkage seals for re-use.

Installation

STEP 1

Make sure the bucket is in a stable position. STEP 2

Remove the bucket pins.

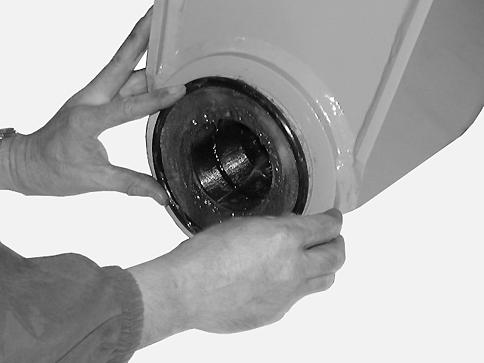

CD00E097 CD00E099 Install the linkage seals on the arm bushing shoulders. Change them if necessary.

STEP 3 Start the engine. Extend the bucket cylinder rod to bring it into its housing. Stop the engine and remove the starter switch key. STEP 4

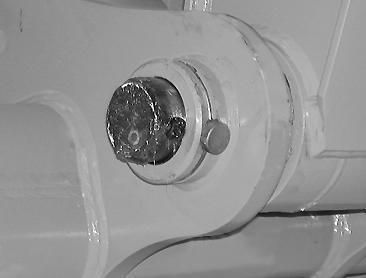

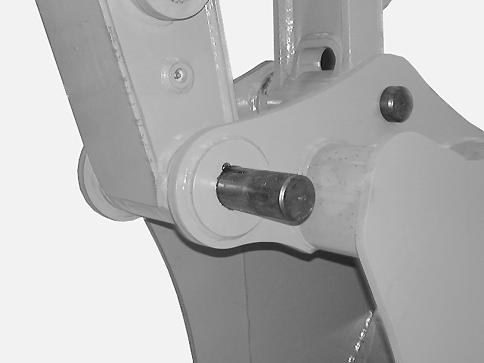

CD00E100 Install the arm/bucket linkage pin and then install the retaining pin and ring. STEP 5 Start the engine and bring the bucket connecting rod into its housing. Stop the engine and remove the starter switch key. STEP 6

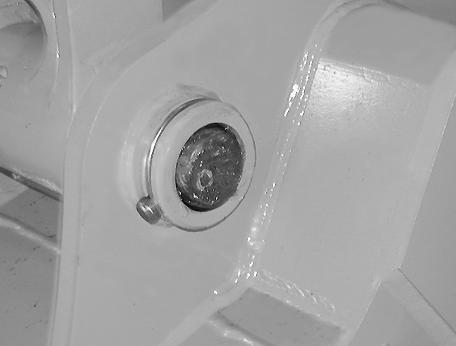

CD00E096 Install the connecting rod/bucket linkage pin and then install the retaining pin and ring. STEP 7

Push the seals back into their housings. STEP 8 Adjust the arm/bucket shimming. See “Shimming the bucket”. STEP 9 Grease the linkages.
