LOWERING ATTACHMENT IN EVENT OF FAILURE

If the engine breaks down, use the following procedure to lower the attachment.

STEP 2

STEP 1

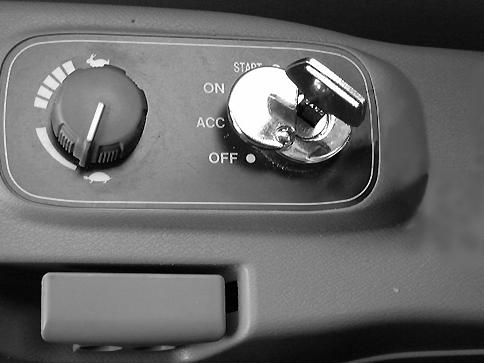

CD00E060 Turn the starter switch key to the “ON” position.

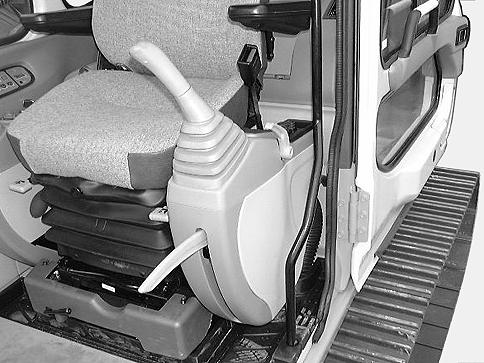

CD00E006 Lower the gate lock lever to extend the gate lock.

STEP 3

CD00E111 Place the control lever (s) in the position corresponding to the downward movement required.

WARNING: The capability to lower the attachment in the event of a machine failure is dependent upon a fully charged pilot circuit accumulator. Repeated use of the controls after a machine failure will deplete the accumulator charge.
