TOOL SUPPLY VALVES (OPTIONAL

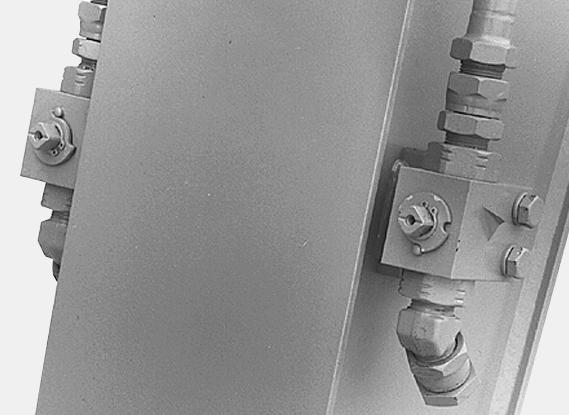

A24690 Located on the end of the arm, these two valves are used to ensure oil supply to optional tools, for example, hydraulic breakers, etc... These valves have two positions.

CD00E055

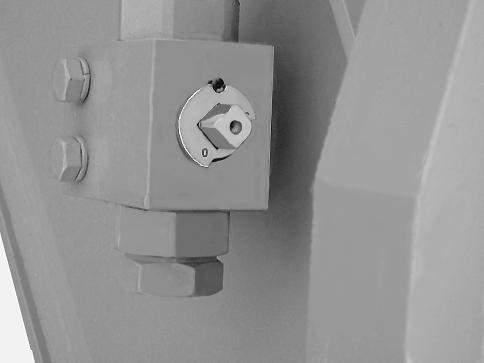

Position “O” (open) : In this position, oil is supplied to the tool. The valves can be locked in open position “O” .

STEP 1

CD00E056

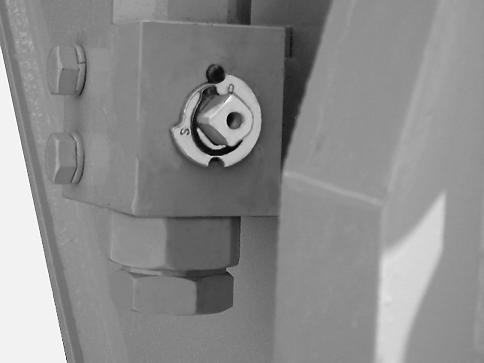

Position “S” (closed) : In this position, there is no supply of oil to the tool.

CD00E055 Using a hexagonal wrench, place the supply valves in “O” position (open).

STEP 2

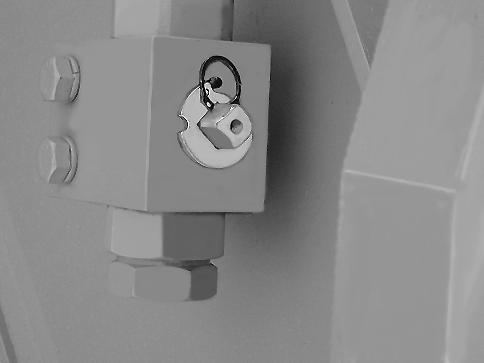

Remove the snap ring.

STEP 3

CD00E057

CD00E058 Remove the locking plate and then reinstall it, turning it a quarter of a turn so that the notch is over the locking pin. Install the snap ring.
