SIDE DOORS

Right-hand door

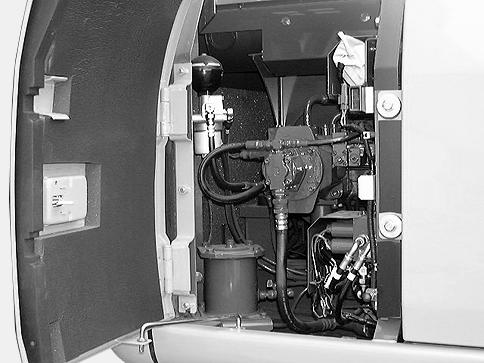

CD00E155 The right-hand door gives access to a number of hydraulic components (filters, etc...).

Left-hand doors

Warning: Always install the struts when the doors are open.

Warning: Never leave tools or other objects behind the side doors.

Warning: Before undertaking any travel, make sure the side doors are properly closed.

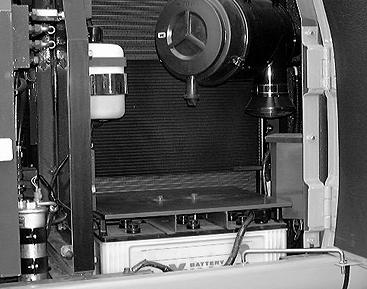

CD00E156 The left-hand doors are for obtaining access to the batteries, air filter, radiator, oil cooler, etc... Use the outside handle to open the doors. To hold the doors, open, remove the struts from their storage position and install them in the holes provided. When closing, put the struts back into storage position.

Use the starter switch key to lock the side doors.

Opening ENGINE HOOD Closing

CD00E157 Unlatch the fasteners and then raise the hood completely until the strut locks automatically in position.

Warning: Once the hood is completely opened, make sure the locking system is correctly engaged.

CD00E158 Raise the hood slightly, pull the strut back and then lower the hood and close it with the fasteners.

Warning: Before undertaking any travel, make sure the hood is properly closed.

LOWER PANELS

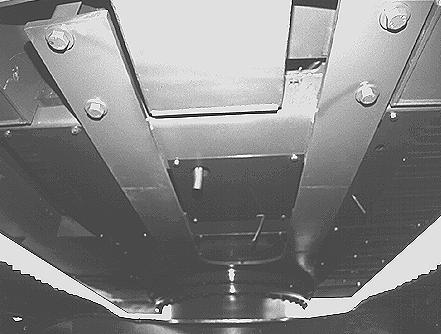

These panels are located under the upperstructure frame and gives access to certain machine components. IMPORTANT: Do not operate the machine with the panels removed.

Warning: Before undertaking any travel, make sure the panels are correctly secured.

CP99A014

WINDSHIELD WASHER RESERVOIR

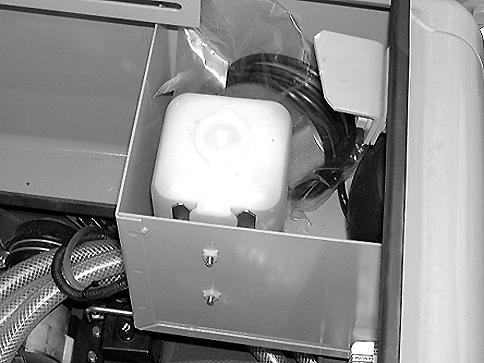

CD00E041 This reservoir, located on the front box, is equipped with an electric pump which is operated from the control panel. See item 16 under “Systems display and control panel” . IMPORTANT: Never operate the windshield washer control when the reservoir is empty. This could cause damage to the electric pump. Remove the cap to fill the reservoir. NOTE: In cold weather, add anti-freeze to the windshield washer water.
