DECALS

Warning: Make sure that the decals are perfectly legible, clean them regularly and replace decals that are destroyed, lost, painted over or no longer legible. When parts bearing decals are replaced, be sure to put new decals on each new part.

KHP1525-02

When you clean the decals, use only a cloth, water and soap. Do not use solvents, gasoline, etc. This chapter only covers decals relating to safety and machine operation and servicing. For information on all decals on the machine, consult your LBX Link-Belt Parts Manual. New decals can be obtained from your authorized LBX Link-Belt distributor. The part numbers are shown at the bottom of each decal.

KHP1537-00 This decal draws attention to the fact that, in certain positions, there can be interference between the attachment tool and the operator’s compartment.

CS96D164 This decal advises to engage gate lock when leaving the cab for any reason.

CS00F530 This decal shows the function of the lefthand and right-hand control levers. See “Left-hand control lever” and “Right-hand control lever” in the “Controls/ Instruments/Accessories” Section.

KHP1484/CS00E529 These decals show the function of the travel control levers and pedals. See “Travel control levers and pedals” in the “Controls/Instruments/Accessories” Section.

KHP1498-00

PA160007 This decal instructs you to use diesel fuel only.

P9290026

This decal reminds the operator to read the manual and is located inside the cab on the right rear window.

KHP1539-00 This decal advises the operator not to dig with the arm cylinder in the transport pin position and that with the arm cylinder in the transport pin position there may be interference between the bucket and the operators cab.

This decal is located on the back glass inside the operator KHP1360-00’s cab.It shows the operator procedures for an emergency exit.

KHP1538-00

This decal cautions the operator to lock the window in order to ensure that it will remain in safe position.

P9290020

This decal advises that before removing the hydraulic tank cap the pressure should be relieved. See “releasing pressure “ in the Hydraulic System.

1

1

P9290004

2

KHP1533-00

This decal wars of the hazard associated with rotating parts and components.

This decal cautions that Interference may occur between the blade and boom during deep digging.

2

P9290008

KHP1316-00/BS00M132

3

P9290006

3

KHP1534-00 This decal warns of the hazards associated with removing the radiator cap before relieving the pressure. See the “cooling system” section of this manual

4

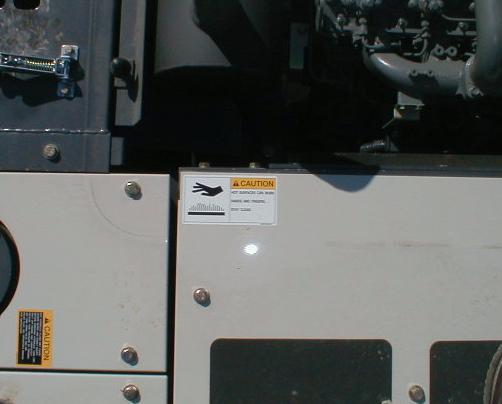

BD00G059 Hot Surfaces Caution This decal warns that some surfaces associated with the engine compartment may be hot to the touch and cause burns.

4

KHP1525-01 38P0108/BS00M141

This decal warns of Danger and to keep clear of swinging upperstructure to prevent serious bodily injury.

5

P9290014

Battery Acid Warning This decal warns of the hazards that may be encountered when servicing the batteries and using jumper cables.

5

KHP1011

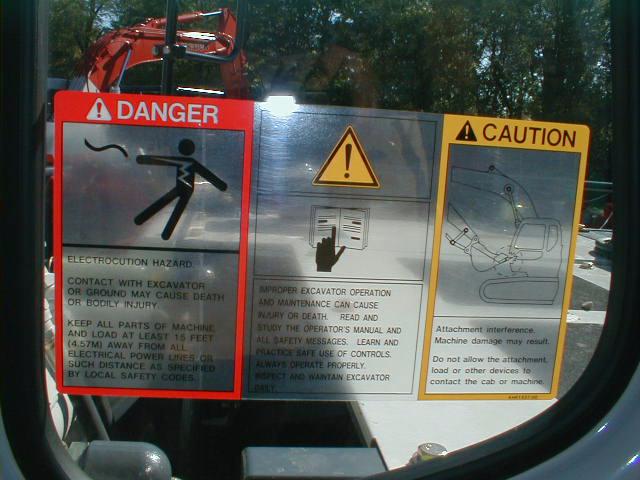

This decal warns of Electrocution Hazard and is located inside the cab on the right rear window.

KHP1525-03

KHP1011-00

k KHP1010-00 These decals caution of falling engine hood and slippery surfaces. They are located side by side on the enging hood survace.

1P2240 This decal warns of the Danger if standing too close to a machine that becomes electrified.

KHP1015-00

This decal reminds the operator proper procedures for checking the Hydraulic Oil Level.

KHP1014-00/BS00M134

This decal Warns the operator that grease may be under Heavy spring pressure. Pressure should be released before disassembly.
