Control, operation

Wire fault list E-elec.:

Select list E-elec.

Press the Menu button. The submenu is displayed.

It contains a list of all electrical faults with codes.

The "Test" column shows the number of faults that have occurred since the last reset of the list.

The figure in the "reset test at x Hrs" field (e.g. 12Hrs) indicates the time at which the "Test" column was last deleted.

Press the BACK button. Select a different fault type, if required.

Other error list S-Exxx:

This menu shows additional information when the service plug is connected to the machine.

To exit the menu: copyright by

Repeatedly press the Menu button until the operator's menu is displayed.

Menu: Time

Fig. 3-23 Adjusting the time settings

This menu is used to adjust the time settings. When the menu is called up, the right digit of the time is highlighted.

To adjust the time, press the UP or DOWN button. Press the Menu button.

The next figure to the left is highlighted. Repeat the above procedure to adjust all digits of the time display. Press the BACK button.

The new time is confirmed, and the operator's menu is displayed.

3.2Control

3.2.1Entering and exiting machine

Danger!

When accessing or exiting the cab, workers might slip or fall from the machine. Persons might be injured by parts of the rotating uppercarriage. This can lead to serious injury or even death.

If you wish to work with the machine, access it on your own and unaccompanied by other people.

Never allow other persons to approach the machine or access it while it is in operation.

Do not access the machine while it is in operation.

Ensure that only the machine operator has a key to the access doors. Always access and exit the machine using the provided climbing aids.

Ensure that your body is resting on at least 3 points: Hold on to the machine with both hands when lifting a foot, and stand on both feet when letting go with one hand.

When entering and exiting the operator's cab, ensure that the safety lever is in its top position.

Do not use operating elements as handles.

3.2.1.1Access system Safety concept

The access system has been devised to enhance the operational safety of the machine by preventing unauthorised persons from accessing the platform. From the outside, the access doors to the platform can only be opened with a key. When an access door is opened, the slewing gear is automatically locked, so that the uppercarriage cannot be swivelled. After the access door has been closed, the slewing gear remains locked and is only released when the person who has accessed the machine presses two buttons, confirming that he/she is the only person standing on the machine.

Emergency procedure:

The access doors can be quickly opened from the inside by pressing down the door handle. No key is required. If the machine operator is unable to exit the machine and must be rescued, a helper can access the machine as follows: A key box with glass panel is mounted beside each access door. Break the glass and remove the emergency key for the access door.

Change of machine operator

The machine must only be accessed after the machine operator has shut down the diesel engine. The machine operator must then climb down to one of the access doors, open it to let the other person in and exit the machine. The machine operator who has just accessed the machine must again press the two buttons to release the slewing gear.

Pressing door buzzer

Each door is equipped with a door buzzer. When this button is pressed, a buzzer signal is audible in the operator's cab. Persons who wish to access the platform while the machine operator is in the cab must signal this by pressing the buzzer button.

A Access to platform

C Platform

E Operator's cab

Climbing onto machine

B Access door to platform

D Access to uppercarriage

B Access door to platform

1 Button "Slewing gear release"

D Access to uppercarriage

Climb one of the climbing aids A to an access door B Open the access door B using the key.

Close both access doors B.

Proceed across the platform C and the climbing aid D to the operator's cab.

Releasing slewing gear:

After the access door B has been opened or the ignition has been started, the machine operator must press two buttons to confirm that no other person is standing on the machine. Subsequently, the slewing gear is released.

Enter the operator's cab E and switch on the ignition.

Descend to platform C

Ensure that no persons other than the machine operator are standing on the machine.

At the climbing aid D , press the button 1

Enter the operator's cab E again.

Confirm that you have entered the operator's cab: press the button OK The slewing gear is released.

Access the machine only after the diesel engine has been shut down. Press the buzzer button 1 copyright by

A buzzer sound is audible in the operator's cab.

Emergency access: Using the hammer 2, break the glass of the key box 3 and remove the key.

3.2.1.2Entering and exiting operator's cab

Fig. 3-27 Cab door

1 Door handle

3 Inside door handle

Entering cab:

2 Locking mechanism

4 Lever of locking mechanism

Press the lock at the door handle 1 and open the door.

Always enter the cab facing the machine, and sit down on the operator seat. Close the door.

If necessary, adjust the operator seat and steering column.

To keep the door open:

Swivel the door back by 180° and secure it with the locking mechanism 2.

Exiting cab:

Shut down the machine and push the safety lever upwards. Push down the door handle 3 at the door lock. Open the door and exit the cab. Close the door.

Releasing door locking mechanism:

The door is secured with the locking mechanism 2. Move the lever 4 outward. The door is now released. Close the door.

3.2.2Safety lever

3-28 Safety lever

To prevent inadvertent movements of the machine, the left control console is equipped with a safety lever.

Caution!

When entering or exiting the operator's cab, always ensure that the safety lever is in its top position (arrow).

When the safety lever is tilted up, a number of machine functions are disabled or otherwise modified:

. joysticks or pedals) does not result in movement of the machine.

By moving the safety lever to its bottom position, the initial switching statuses are reestablished, and the pilot control units are enabled.

Before commencing work with the machine while seated on the operator seat, move the safety lever to its bottom position.

3.2.3Operator seat

Danger!

The adjustment of the operator seat could result in an inadvertent actuation of control elements, moving the machine or the attachment. This can lead to injury to persons or damage to property. Therefore do not adjust the seat while the engine is running.

Before adjusting the operator seat, fold the safety lever upwards.

3.2.3.1Adjusting armrest

Turn knurled screw in direction a The angle of the armrest is adjusted upwards. Turn knurled screw in direction b

The angle of the armrest is adjusted downwards.

3.2.3.2Adjusting seat and backrest

Seat inclined backwards: Pull the lever 1 up, adjust the angle of the seat and release the lever.

Seat inclined forward: Pull the lever 2 up, adjust the angle of the seat and release the lever.

Backrest: Pull the lever 3 up, adjust the angle of the backrest and release the lever.

3.2.3.3Adjusting horizontal seat position

Fig.

Horizontal adjustment

Pull the lever 1 upwards and move the seat in horizontal direction.

Pull the lever 2 upwards and move the seat with the control console in horizontal direction.

3.2.3.4Adjusting seat suspension

Fig. 3-33 Adjusting seat suspension

Adjust the seat suspension to suit your body weight by turning the turning knob.

3.2.3.5Switching bar (air-cushioned operator seat, optional equipment)

Adjusting vibration absorption: Press the button 1 (+ or -) to adjust the suspension system to suit your body weight.

Adjusting lumbar support: Press the button 2 (+ or -), to add or release air from the lumbar cushion. Press the button 3 (+ or -), to add or release air from the upper lumbar chamber.

Switching on seat heating: Operate the switch 4 to switch the seat heating on or off.

The seat heating switches off automatically when the set temperature is reached.

3.2.3.6Wearing/taking off seat belt

The seat belt is an inertia seat belt. It is thus not necessary to adjust the belt length. Pull the belt 2 from the reeling mechanism 1 When the belt is pulled with a jerk, it might lock. Push the locking piece into the buckle 3 so that it engages.

Danger!

In the event of an accident, seat belts significantly reduce the risk of injury. Prior to starting the machine, put on the seat belt. Ensure that the seat belt is not twisted.

To ensure proper safety, regularly check the seat belt and replace it without delay if you detect any damage to parts.

To open the buckle 4, push the lock button down, using your thumb. The reeling mechanism 1 automatically pulls in the belt.

3.2.4Sun blind

The operator's cab is equipped with two sun blinds, one for the windscreen and one for the glass panel in the cab roof.

Windscreen

Pull the sun blind down, holding it by the cross bar 1 The sun blind can be individually adjusted. Press the switch 2 (red). The sun blind is automatically rolled up.

Cab roof

Pull out the sun blind and engage it in the holders provided.

To open the sun blind, remove it from the holders and let it roll up slowly.

3.2.5Emergency exit through rear window

Emergency exit through rear window

Pull the latch 1 at the inside of the rear window to remove the rubber seal 2 In the event of an emergency, pull out the rubber seal 2 along the entire circumference of the rear window panel and push out the window.

3.2.6Inside lighting

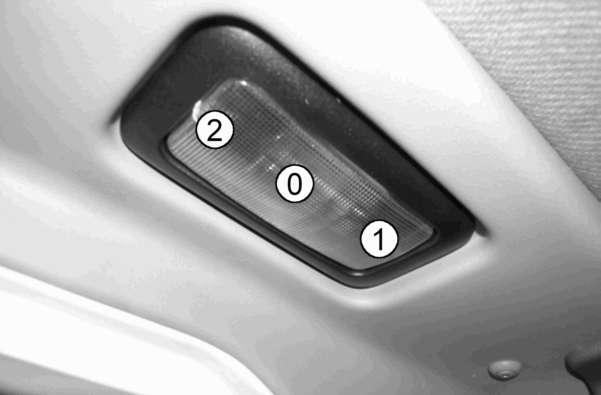

The inside lighting is switched on/off with a rocker switch. Set the rocker switch to position 1 The light is switched on. Set the rocker switch to position 0 The light is switched off. Switch position 2 is not assigned a function.

3.2.7Fire extinguisher (optional equipment)*

*Operator instructions

3.2.8Windscreen wiper

3.2.8.1Front windscreen wiper

Continuous/interval mode:

To switch on the windscreen wiper, actuate the switch S14

Press the switch.

Interval mode

The left LED is on.

Press the switch again. Continuous mode

The left LED is off, the right LED is on.

Press the switch again. The windscreen wiper is switched off. The red LED is off.

Adjusting interval for interval mode:

To adjust the interval for the windscreen wiper, actuate the switch S14. Adjustment range: 2 to 10 seconds.

Press and hold the switch until the windscreen wiper is switched off. Continue pressing and holding the switch. The left LED flashes.

Release the switch when the desired interval time is reached. The interval time is set to the new time.

Switching on windscreen washer system:

To switch on the windscreen washer system, actuate the button S11

Press and hold the button.

Windscreen detergent solution is sprayed through the nozzles onto the windscreen.

The wiper is on in continuous mode. Release the button.

Washing spray is stopped.

The windscreen wiper runs in continuous mode for another approx. 3 seconds.

3.2.8.2Wiper for cab roof

To switch on the wiper for the cap roof, actuate the switch S218

Turn the switch to the left.

The wiper is on in continuous mode.

Turn the switch to the right and hold it there. Windscreen detergent solution is sprayed through the nozzles onto the roof panel.

The wiper is on in continuous mode.

Turn the switch to its neutral position. The windscreen wiper is switched off.

3.2.8.3Windscreen detergent tank

Fig. 3-40 Windscreen detergent tank

This tank is located at rear of the operator's cab. Add conventional windscreen detergent through the filling opening (arrow).

3.2.9Lighting

1 Revolving deck headlight

3 Attachment headlight

2 Rear roof headlight

Revolving deck headlight, roof headlight, attachment headlight

The headlights can be switched on with the switch S10. The revolving deck and roof headlights remain switched on for 3 minutes after they are switched off at the switch. Press the switch.

The revolving deck and roof headlights are on.

The left LED is on.

Press the switch again.

The attachment headlight is on.

The revolving deck and roof headlights are switched off after a delay time of 3 minutes.

The left LED is off; the right LED is on.

Press the switch again.

All headlights (revolving deck, roof and attachment) are on.

The right and left LEDs are on.

Press the switch again.

The attachment headlight is immediately switched off.

The revolving deck and roof headlights are switched off after a delay time of 3 minutes.

The right and left LEDs are off.

Remote control

All headlights can be switched on simultaneously by means of the remote control device. This facilitates accessing the operator's cab, for example in unfavourable light conditions.

Press the ON button.

All headlights (revolving deck, roof and attachment) are on.

All headlights are automatically switched off after 3 minutes. The LED of the remote control is on.

Press the OFF button.

The LED of the remote control is off.

The headlights are on for 3 minutes before they are slowly dimmed. They cannot be switched off with the remote control device. The OFF button can only be used to switch off the LED of the remote control (to save battery power).

Roof headlights

The roof headlights can be switched on independently from the other headlights by actuating the switch S275

Press the switch.

Roof headlights on.

The indicator light in the switch is on.

Press the switch again.

Roof headlights off.

The indicator light in the switch is off.

Auxiliary headlight (optional equipment)

The auxiliary headlights are switched on with the switch S22

Press the switch.

Auxiliary headlights on.

The LED is on.

Press the switch again.

Auxiliary headlights off.

The LED is off.

Beacon (optional equipment)

The beacon can be switched on with the switch S41

Press the switch.

The beacon flashes. The LED is on.

Press the switch again. The beacon is switched off. The LED is off.

3.2.10Heating and air-conditioning system

The operator's cab is equipped with a heating and air-conditioning system as standard. The operator's cab can be heated, air-conditioned and ventilated.

Control keys

1 - A/C operation (cooling)

2 - Increase cab temperature / fan speed

3 - Reduce cab temperature / fan speed

4 - Control ON / OFF

5 - Fan speed manual / automatic

6 - REHEAT function

7 - Heating operation manual / automatic

8 - Fresh air operation / recirculated air mode

9 - Rear wall ventilation flap OPEN / SHUT

10 - Right control console ventilation flap OPEN / SHUT

11 - Windscreen and legroom ventilation flap OPEN / SHUT

12 - Windscreen ventilation flap OPEN / SHUT

Display screens

13 - Recirculated air

14 - REHEAT function

15 - Air conditioning (cooling)

16 - Rear wall ventilation flap OPEN

17 - Right control console ventilation flap OPEN

18 - Windscreen ventilation flap OPEN

19 - Legroom ventilation flap OPEN

20 - Automatic operation

21 - Fan speed indicator bar for manual operation

22 - Fan speed symbol for manual operation

23 - Heating operation symbol for manual operation

24

- Heating performance indicator bar for manual operation

25 - Specified value / error code

26

- Temperature unit (°)

A flashing error code F1-F5 will be displayed if the control unit identifies an error.

Note!

In the event of an error, please contact the LIEBHERR customer service centre.

Note!

To avoid the starter and battery from overloading, only switch on the airconditioning system after starting the diesel engine. If the machine is to be used for a lengthy period of time without switching on the air conditioning system, operate the compressor every 2 weeks by pressing

REHEAT key 6

Switch on the control unit:

Fig. 3-43 Control unit self-test

Switch on the system by pressing key 4 The software version will be displayed for approximately 12 seconds while the control unit performs its self-test.

The heating and air conditioning in the cab are in operation. Heating performance and fan speed are automatically controlled when the AUTO (20) symbol is displayed.

Adjusting the cab temperature:

3-44 Example: increase the temperature

The desired cab temperature is displayed on-screen. Press key 2 to increase the temperature.

Press key 3 to reduce the temperature.

Example: Press key 2 five times to increase the cab temperature by 5°C. The set temperature value will remain stored until the next change is made. To start cooling, switch on a/c operation (key 1).

Manually adjusting the heating performance:

Fig. 3-45 Manually adjusting the heating performance

Press key 7 to manually adjust the heating performance. Symbol 23 (manual heating operation) and symbol 24 (heating performance indicator bar) are displayed, the text "AUTO" disappears. Symbol 23 flashes for 5seconds; during this time the heating performance can be manually adjusted.

Use keys 2 or 3 to increase/reduce heating performance.

Press key 7 twice in quick succession to restart automatic mode.

Symbols 23 and 24 are no longer displayed

The text "AUTO" is displayed; automatic heating operation is activated.

Switching a/c operation on and off:

Fig. 3-46 A/C operation and REHEAT function

Press key 1

A/C operation is switched on, symbol 15 is displayed. The compressor will now be switched on by the control unit as required. It automatically controls the speed (rpm) of the heating and air conditioning unit.

Press key 1 again.

A/C operation is switched off, symbol 15 is no longer displayed.

Press REHEAT key 6 if you need to defog the cab. Symbol 14 is displayed.

The REHEAT function automatically switches off again after 10 minutes.

Recirculated air and fresh air, fan speed:

The heating and air conditioning system can be switched to either recirculated or fresh air mode.

Press key 8 to open / close the fresh air flap. Symbol 13 indicates that the fresh air flap is closed. Symbol 13 is no longer displayed when the fresh air flap is open.

Manually adjusting the fan speed:

Press key 5 to manually set the fan speed. Manual fan speed mode is activated, the text "AUTO" disappears. Symbol 22 (manual fan operation) flashes for 5seconds; during this time fan performance can be manually adjusted.

Use keys 2 or 3 to increase/reduce fan performance. Symbol 21 (fan performance bar indicator) changes accordingly

Press key 5 twice in quick succession to restart automatic mode. Symbols 21 and 22 are no longer displayed. The text "AUTO" is displayed; automatic fan speed operation is activated.

Changing the air supply:

To obtain optimum comfort:

During heating operation, open the air outlets in the legroom area a, on right control console b and (if required) for windscreen c

During a/c operation, open the air outlets in the rear cab wall d and right control console b

The best heating or air conditioning performance is achieved when using the recirculated air function.

The air flow is regulated by pressing keys 9 - 12 and using the rotating and lockable air outlets.

Press key 9 Symbol 16 is displayed. Air outlets d are opened.

Press key 9 again to re-close the ventilation flaps. Symbol 16 is no longer displayed. Air outlets d are closed.

Open / close ventilation flap on control console:

Press key 10 Symbol 17 is displayed. Air outlet b is opened.

Press key 10 again to re-close the ventilation flaps. Symbol 17 is no longer displayed. Air outlet b is closed.

Open / close the ventilation flap for the windscreen and legroom:

Press key 11

Symbols 18 and 19 are displayed Air outlets a and c are opened.

Press key 11 again to re-close the ventilation flaps. Symbols 18 and 19 are no longer displayed Air outlets a and c are closed.

Open / close windscreen ventilation flap:

Press key 12 Symbol 18 is displayed. Air outlet c is opened.

Press key 10 again to re-close the ventilation flaps. Symbol 18 is no longer displayed. Air outlets c are opened.

Switching the temperature display: The displayed temperature can be switched from °Celsius to °Fahrenheit

Press and hold key 8.

Press key 3

The temperature is displayed in °Fahrenheit

Repeat this procedure to switch the temperature display to °Celsius.

Auxiliary heater operation (option):

3-50 Auxiliary heater operation

Switch on the auxiliary heater

When the air conditioning system is switched on: the text SH (auxiliary heater) is displayed for several seconds.

The air conditioning system switches itself off and cannot be switched on again during auxiliary heater operation. The air conditioning system is ready for operation again once the auxiliary heater has been switched off and the run-on time has expired.

3.3Operation

3.3.1Safety instructions

3.3.1.1Bringing the machine into service

rm a thorough walkaround inspection. remain unlocked.

he inside and outside mirrors are clean. Secure all doors and windows to prevent unintentional movement.

and the other items to ensure comfortable and safe working conditions. e machine must be in working order.

3.3.1.2Starting the machine

and instruments for proper function, bring all controls into neutral position and insure that the safety lever is in the raised position.
