Control, operation
The stick cylinder shut-down can be adjusted in various ways, depending on the equipment of the machine:
Menu optionDescription teach max Saving of current stick position as the maximum permissible stock position for retraction of the stick.
Move the attachment to its highest position.
Carefully retract the stick with the respective attachment (e.g. grapple) to the desired position.
Move the cursor to the teach max line and press the RIGHT key to change to the right field.
Press the UP button to enter the value "1" and confirm with ENTER stl max point Enter the maximum permissible stock position for retraction of the stick.
The current stick position (act. position) is stored as the maximum permissible stick position (stl max point).
Move the cursor to the >back line and press the RIGHT button.
The display shows the subordinate menu.
Position the stick within the planned range of movement.
Move the cursor to the stl max point line and press the RIGHT button to change to the right field.
Press the UP or DOWN button to select the new value and confirm with ENTER teach min Saving of current stick position as the maximum permissible stock position for extension of the stick *).
The maximum permissible stick position for retraction is saved.
Move the cursor to the >back line and press the RIGHT button.
The display shows the subordinate menu.
Carefully retract the stick with the respective attachment (e.g. grapple) to the desired position.
Move the cursor to the teach min line and press the RIGHT key to change to the right field.
Press the UP button to enter the value "1" and confirm with ENTER
The current stick position (act. position) is stored as the maximum permissible stick position (stl min point).
Move the cursor to the >back line and press the RIGHT button.
The display shows the subordinate menu.
Menu optionDescription
stl min point Enter the maximum permissible stock position for extension of the stick *)
Position the stick within the planned range of movement.
Move the cursor to the stl min point line and press the RIGHT button to change to the right field.
Press the UP or DOWN button to select the new value and confirm with ENTER
The maximum permissible stick position for extension is saved.
Move the cursor to the >back line and press the RIGHT button.
The display shows the subordinate menu.
*)Special equipment: The movement range of the stick can also be restricted when it is extended.
Checking stick cylinder shut-down:
Carefully extend and retract the stick to check the stick shut-down function. When the set shut-down positions are reached, the stick movement must be automatically stopped.
If required, readjust the stick cylinder shut-down.
Prop. control (optional equipment)
In this menu, the maximum achievable speed of the "rotate grapple" function can be adjusted.
For the selection of the tool attachments, see "tool option" menu.
Note!
If you wish to adjust the speed of the "rotate grapple "function: Before resuming work, check the response of the machine to the control movements. Familiarise yourself with the operation of the control devices at the modified settings.
The bar indicator indicates the maximum achievable speed of the "rotate grapple" function. The speed can be set to slow (min) or fast (max).
The higher the chosen value, the faster the working tool is moved when the mini joystick is operated. If a high value (bar near "max") is selected, the tool attachment is moved at high speed, even if the mini joystick is only moved a short distance. We recommend choosing low to medium values.
The settings remain permanently activated and can only be disabled or modified in the menu.
Menu navigation:
Use the UP and DOWN key to select the desired speed of the "rotate grapple" function
Press the RIGHT keys to confirm your selection. The "prop. control" settings have been adjusted.
3.2Control
3.2.1Entering and exiting the operator's cab
Mounting, descending:
Caution!
Risk of injury when operator's cab is entered or exited without due regard to the safety instructions!
When entering and exiting the operator's cab, ensure that the safety lever is in its top position.
Always access and descend from the machine using the provided climbing aids. Ensure that your body is resting on at least 3 points: Hold on to the machine with both hands when raising a foot, and stand on both feet when letting go with one hand.
Do not use operating elements as handles. Never jump from the machine.
Mount the machine/descend from the machine facing it.
1 Steps at the front side
2 Footboards
3 Steps at the side of the machine
To use the steps 1 and footboards 2 at the front: Swivel the uppercarriage across the steering axle A by approx. 45° to the right alternatively
Step at the side of the machine 3: Swivel the uppercarriage by 180° (across the rigid axle B).
The operator's cab is located above the rigid axle.
Mount the machine/descend from the machine facing it.
Entering and exiting operator's cab:
1 Door handle
2 Locking mechanism
Entering cab:
3 Inside door handle
4 Lever of locking mechanism
Press the lock at the door handle 1 and open the door.
If you wish to leave the door open, open it fully (swivel by 180° backwards) and secure it with the locking mechanism 2
Always enter the cab facing the machine, and sit down on the operator seat.
If necessary, adjust the operator seat and steering column.
Exiting cab:
Shut down the machine and push the safety lever upwards. Push down the door handle 3 at the door lock.
Open the door fully and secure it with the locking mechanism 2 Face the machine when descending from it.
Releasing door locking mechanism:
The door is secured with the locking mechanism 2. Move the lever 4 beside the operator's cab frame outwards. The door is now released. Close the door.
3.2.2Adjusting vertical position of the operator's cab (optional equipment)
The height of the operator's cab can be adjusted steplessly.
Danger!
Risk of collision of elevated operator's cab with obstacles!
There is a risk of injury, if the elevating cab's paths of travel are obstructed or inclined. The stability of the machine might be compromised when the operator's cab is lifted.
Do not move the machine while the operator's cab is elevated, and if the paths of travel are obstructed or inclined. Adjust the cab height only when the machine is stationary. During the adjusting procedure, ensure that no persons are standing in the danger area of the machine.
Danger!
If the operator's cab is inadvertently lowered, there is a serious risk of injury or even death.
Familiarise yourself with the emergency operating devices of the cab so that you can take appropriate measures, if the need arises.
Ensure that no persons are standing in the danger area of the cab (i.e. under it). Keep a safe distance to moving parts while the operator's cab is being lowered.
Danger!
There is an increased risk of injury when repair and maintenance work is to be carried out while the operator's cab is elevated.
If at all possible, carry out such work when the operator's cab is lowered.
If it is necessary to carry out work on the elevated cab, prop it up with suitable supports.
Fig. 3-24 Height adjustment of the operator's cab
The machine is in ready mode. The engine is running. The safety lever is moved down. The servo control is switched on. Operate the control lever 1 to lift a or lower b the operator's cab.
3.2.3Safety lever
Safety lever
To prevent inadvertent movements of the machine, the left control console is equipped with a safety lever.
Caution!
When entering or exiting the operator's cab, always ensure that the safety lever is in its top position (arrow).
When the safety lever is tilted up, a number of machine functions are disabled or otherwise modified: –Servo control is disabled. –Actuation of the pilot control units (e.g. joysticks or pedals) does not result in movement of the machine.
–The parking brake and the slewing gear brake are applied, and the oscillating axle is locked. The respective indicator lights are on.
–The brakes and the oscillating axle cannot be released.
By moving the safety lever to its bottom position, the initial switching statuses of the brakes and the oscillating axle are re-established, and the pilot control units are enabled.
Before commencing work with the machine while seated on the operator seat, move the safety lever to its bottom position.
3.2.4Operator seat
Danger!
The adjustment of the operator seat could result in an inadvertent actuation of control elements, moving the machine or the attachment. This can lead to injury to persons or damage to property. Therefore do not adjust the seat while the engine is running. Before adjusting the operator seat, fold the safety lever upwards.
3.2.4.1Adjusting the seat suspension
Adjustment
Seats with mechanical spring mechanism: Adjust the seat to the body weight, turning the handle 1 The indicator beside the handle indicates the set body weight.
Seats with pneumatic suspension:
Before adjusting the height, set the shock absorber to "soft". Sit down on the seat.
Pull the lever 1 briefly upwards. The seat is automatically adjusted to suit the body weight of the operator.
3.2.4.2Adjusting seat height
Adjustment
Seats with mechanical spring mechanism: The seat can be adjusted at various height levels.
Caution!
To adjust the seat height, pull it up with both hands. Danger! The hands could become squeezed between the seat and the control consoles. Do not reach below the seat surface from the side to move it from its top to its bottom position.
To lift the seat, place both hands under the front part of the seat. When pushing the seat down, hold it firmly.
Lift the seat to the desired height and ensure that it engages properly in this position.
If the seat is lifted to a position above the last step (stop), it is lowered automatically to its lowest position.
Seats with pneumatic suspension:
The seat height can be adjusted steplessly by means of compressed air and a compressor. If the upper or lower stops are reached, the height is automatically adjusted near that position to provide minimum suspension travel. To prevent damage to the equipment, do not let the compressor run for longer than 1 minute.
Before adjusting the height, set the shock absorber to "soft".
Adjust the seat height by pulling or pushing the lever 1 to the respective stop.
3.2.4.3Adjusting horizontal seat position
Pull the lever 1 and move the seat into a horizontal position.
Pull the lever 2 and move the seat together with the control consoles horizontally.
3.2.4.4Adjusting seat angle
Lift the button 1
Sit on the seat and move it to the desired angle.
3.2.4.5Adjusting seat depth
Lift the button 1
Sit on the seat and move it to the desired position.
3.2.4.6Adjusting backrest
Pull up the locking lever 1.
Sit on the seat and move the backrest to the desired position. Release the locking lever. Ensure that the locking lever engages in the desired position and that the backrest cannot be moved to another position.
3.2.4.7Adjusting lumbar support
Adjustment of lumbar support
Only for seats with pneumatic suspension: Adjust the shape of the lumbar support by pressing the button 1 at the rear side of the seat.
3.2.4.8Adjusting shock absorption
Adjustment of shock absorption
Only for seats with pneumatic suspension: The shock absorption level can be adjusted to suit the road or terrain conditions. Turn the handle 1 to the desired position and release it.
Position 1 = hard
Position 2 = medium
Position 3 = soft
3.2.4.9Adjusting horizontal shock absorption mechanism (optional equipment)
Adjustment of horizontal shock absorption mechanism
Only for seats with pneumatic suspension: Under certain operating conditions (e.g. travelling with trailer), operator comfort can be increased by actuating the horizontal shock absorption. Move the handle 1 to the desired position. Position 1 = horizontal shock absorption OFF Position 2 = horizontal shock absorption ON
3.2.4.10Adjusting armrests
Adjustment of armrest angle
Adjusting the armrest angle: Turn the hand wheel 1 until the armrests are in the desired position.
Adjusting armrest height: The armrests can be folded back and adjusted individually in height.
Adjustment of armrest height:
Remove the cover cap 1 from the seat covering. Loosen the hex nut 2 (wrench size 13 mm). Set the armrest to the desired position. Tighten the hex nut. Replace the cover cap on the hex nut.
3.2.4.11Adjusting headrest (optional equipment)
Adjustment of head rest
Adjusting head rest: Adjust the head rest by pulling it from the engaging mechanism. Adjust the headrest angle by pushing it forward or back.
Removing headrest: Move the headrest to the upper stop and then pull it sharply from the seat.
3.2.4.12Seat heating (optional equipment)
Fig. 3-39 Seat heating
Actuate the switch 1 to switch on the seat heating.
3.2.4.13Wearing/taking off safety belt
3-40 Seat belt
The safety belt is an inertia seat belt. It is thus not necessary to adjust the belt length. Pull the belt 1 from the reeling mechanism 2 When the belt is pulled with a jerk, it might lock. Push the locking piece into the buckle 3 so that it engages.
Danger!
The seat belt is designed to protect the machine operator. Prior to starting the machine, put on the seat belt. Ensure that the seat belt is not twisted.
To ensure proper safety, regularly check the seat belt and replace it without delay if you detect any damage to parts.
To open the buckle 4, push the lock button down, using your thumb. The reeling mechanism 1 automatically pulls in the belt.
3.2.5Adjusting steering column
The steering column can be adjusted to reposition the steering wheel for improved operator comfort.
Using your foot, press the release lever 1 down. Adjust the position of the steering wheel. Release the lever 1.
The steering column is locked in the new position.
3.2.6Windscreen
The windscreen can be placed to 2 positions. –Position a: Windscreen closed.
–Position
Caution!
The windscreen is very heavy. There is a risk of injury to fingers, if they become caught between the panel and the frame when closing the windscreen.
Hold the windscreen with both hands by the handle brackets 2
Caution!
Risk of glass break.
If the windscreen impacts with the steering wheel knob 3 or is closed without holding it, it could shatter.
Before closing the windscreen, ensure that the steering column is not in a fully vertical position.
Hold the windscreen with both hands by the handle brackets 2
Ensure that the windscreen cannot collide with the steering wheel knob when closing it.
Opening windscreen:
Pull the latch 1 inwards and down. The windscreen is released.
Hold the windscreen by the two brackets and slide it upwards until it engages.
Lock the windscreen in its position by engaging the latch 1
Closing windscreen:
Pull the latch 1 inwards and forward. The windscreen is released.
Hold the windscreen by the two handle brackets and slide it carefully down until it engages.
Lock the windscreen in its position by engaging the latch 1.
The operator's cab is equipped with two sun blinds, one for the windscreen and one for the glass panel in the cab roof.
Windscreen
Pull the sun blind down, holding it by the cross bar 1. The sun blind can be individually adjusted. Press the switch 2 (red). The sun blind is automatically rolled up.
Cab roof
Pull out the sun blind and engage it in the holders provided.
To open the sun blind, remove it from the holders and let it retract slowly.
3.2.8Emergency exit through rear window
Fig. 3-44 Emergency exit through rear window
Pull the latch 1 at the inside of the rear window to remove the rubber seal 2. In the event of an emergency, pull out the rubber seal 2 along the entire circumference of the rear window panel and push out the window.
3.2.9Inside lighting

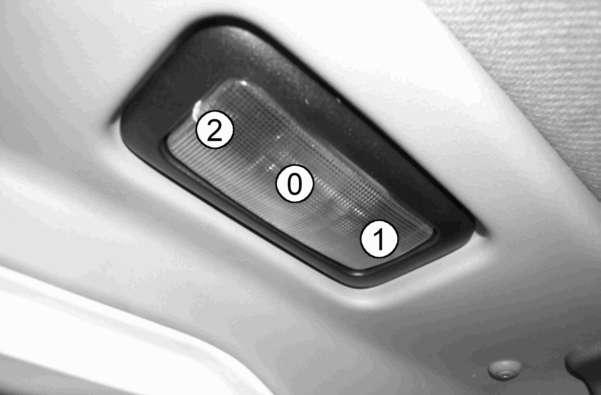

Inside lighting
The inside lighting is switched on/off by a rocker switch.
Set the rocker switch to position 1. The light is switched on. Set the rocker switch to position 0 The light is switched off. Switch position 2 is not assigned a function.
3.2.10Fire extinguisher (optional equipment)*
3.2.11Windshield wiper
3.2.11.1Windshield wiper
With the ignition turned on, press switch S14 on control panel C to activate the windshield wiper operation. This switch has two settings: Push the switch in position 1 down (center position). Continuous operation is activated. Push the switch in position 2 down (final position). Intermittent control is activated.
3.2.11.2Window washer system
With the ignition turned on, press switch S11 on control panel C fo activate the windshield washer system. Press the button down and hold. Water will be sprayed onto the front windshield through nozzles. The windshield wiper runs continuously. Release the button. The water flow stops. The windshield wiper continues to run continuously for approx. 3 seconds.
3.2.11.3Windshield washing fluid container
The container for the windshield washing fluid is located at the rear of the cab. Open the cover (see arrow) to refill the container with commercially available windshield washing fluid.
Quantity: see Lubrication Chart
3.2.11.4Window wiper on cab roof
With the ignition turned on, press switch S14 on control panel C to activate the windshield wiper operation. This switch has two settings: Push the switch in position 1 down (center position). Continuous operation is activated. Push the switch down to position 2 and hold (final position). Water will be sprayed on the windshield. The windshield wiper runs continuously.
3.2.12Lighting
1 Attachment headlight
3 Beacon (optional equipment)
5 Parking light/travel light, turn signal light
* optional equipment
2 Rear roof light*
4 Rear light, brake light, turn signal light
6 Front roof light*
Parking and travel light (dipped light)
Ignition is on or off.
The switch can be set to three different positions:
–Position 0: off
–Position 1 (centre position): parking light
–Position 2 (stop position): travel light
When the parking or travel light is on, the rear light is also on.
Front attachment light, front roof light (optional equipment)
The ignition is switched on.
The switch can be set to three different positions:
–Position 0: off
–Position 1 (centre position): attachment light
–Position 2 (stop position): attachment light and roof light
Rear roof light (optional equipment)
The ignition is switched on.
The switch can be set to three different positions:
–Position 0: off
–Position 1 (centre position): no function assigned
–Position 2 (stop position): attachment light and roof light
Beacon (optional equipment)
The ignition is switched on.
The switch can be set to two different positions:
–Position 0: off
–Position 1: beacon is on
Turn signal
The ignition is switched on.
The switch can be set to three different positions:
–Position 1: turn signal right
–Position 0: off
–Position 2: turn signal left
3.2.13Heating system
The operator's cab is equipped with a heating system as standard. The heating system can be used to heat or ventilate the operator's cab. The switch of the heating system is located on the control console B
S92 Air distribution in legroom S318 A/c system*
S93 Heating output
S284 Blower output
* optional equipment
S398 Switching of blower air output
A Legroom, front windscreen C Rear of cab
B Legroom, operator's seat
Adjusting blower output:
The output of the blower is adjusted by means of the rotary switch S284
Position 0: The blower is switched off.
Positions 1 to 4: The blower motor can be run at 4 different speeds.
Changing air outlet:
Use the switch S398 to choose whether the air is to be let out in the legroom (A and B) or at the rear of the cab C.
Press the switch down.
The air flow from the blower is fed through the ventilation openings in the legroom (A and B).
The indicator light in the switch is on.
Press the switch up.
The air flow from the blower is fed through the ventilation openings in the rear panel of the cab C
The indicator light in the switch is off.
Adjusting air distribution in the legroom:
This rotary switch S92 is used to adjust the air distribution in the legroom. The air is fed to the legroom (reverse switch light is on).
Turn the rotary switch to the left.
The air is blown through the openings 1 (windscreen).
Turn the rotary switch S92 to the right. The air is blown through the openings 2 (operator's seat).
If the rotary switch is set to an intermediate position, the air is distributed between the two openings 1 and 2
Adjusting heating output: Turn the rotary switch S93 to adjust the heating output. The diesel engine must be on.
Turn the rotary switch S93 to the left. The heating output is reduced. When the switch is in position "0" (left stop), the heating is switched off.
Turn the rotary switch S93 to the right. The heating output is increased.
Note!
In order to achieve optimum comfort in the cab, we recommend feeding the air through the openings in the legroom (A and B).
3.2.14A/c system (optional equipment)
On request, the machine can be equipped with an a/c system. The a/c system is activated by means of the switch S318.
The diesel engine must be on.
Press the switch S318 down. The a/c system is active. The indicator light in the switch is on.
Press the switch S18 up. The a/c system is off. The indicator light in the switch is off.
If the rotary switch S284 (blower output) is in position 0 when the a/c system is switched on, the blower speed is automatically set to 1
During a/c operation, the blower air is cooled. Use the rotary switch S93 (heating) to adjust the room temperature. The blower air is coolest when the rotary switch S93 is in position 0 (left stop).
In order to dehumidify the cab, switch on the a/c system while the system is in heating mode. Switch off the a/c system when all windows are completely defogged.
Note!
In order to achieve optimum comfort in the cab with a/c operation, we recommend feeding the air through the openings at the rear of the cab ( C).
3.3Operation
3.3.1Safety instructions
3.3.1.1Bringing the machine into service
–Before starting the machine, perform a thorough walkaround inspection.
–Visually check the machine for loose bolts, cracks, wear, leaks and damage.
–Never start or operate a damaged machine.
–Make sure to correct any problems immediately.
–Verify that all hoods, covers and doors are closed, however, the locks should remain unlocked.
–Verify that all safety signs are in place.
–Make sure that all windows, as well as the inside and outside mirrors are clean. Secure all doors and windows to prevent unintentional movement.
–Before operating the machine, adjust the operator’s seat, the mirror, the armrests and the other items to ensure comfortable and safe working conditions.
–The noise protection devices on the machine must be in working order.
–Never operate the machine without the cab.
3.3.1.2Starting the machine
–Before start up, check all indicator lights and instruments for proper function, bring all controls into neutral position and insure that the safety lever is in the raised position.
–Blow the horn briefly prior to starting the diesel engine, in order to warn persons located near the machine.
–Only start the machine from the driver’s seat.
–Start the diesel engine according to the regulations in the operating instructions, if you have not received any other instructions.
–Lower the safety lever and check all indicators, gauges, warning devices and controls for their proper indication.
–Only operate the diesel engine in a well-ventilated area, if the area is enclosed. If necessary, open doors and windows in the building to provide ample fresh air.
–Bring the engine and hydraulic oil to operating temperature. Low oil temperatures cause aslow reaction of the controls.
–Check that all attachment functions are operating properly.
–Carefully take the machine to an open area and check all control functions.
3.3.1.3Shutting down the machine
–Park the machine on level and stable ground whenever possible. Otherwise, chock or block wheels when parking on a slope.
–Lower the attachment so that it rests on the ground.
–Move all control elements into the neutral position. Set the parking and slewing gear brake.
–Switch off the diesel engine according to the operating instructions and move the safety lever up, prior to leaving the driver’s seat.
–Lock the machine, as well as all hoods, covers and doors; remove all keys and secure the machine against any unauthorized use.
3.3.1.4Towing the machine
–Always observe the correct procedure: See chapter “Towing the machine” in this operating manual.
–The machine may only be towed in exceptional circumstances, such as moving a disabled machine from a hazardous location.
–Before pulling or towing the machine, check all cables, hooks and couplers for safety and stability.
–Towing equipment must have sufficient tensile strength and must be attached to the undercarriage at the designated tiedown attachment points.
–Never allow anyone to remain in the area of the towing devices.
–During the towing procedure, keep within the required transport position, the permissible speed and distance.
–Proceed as outlined in the operating manual when putting the machine back into service.
3.3.2Starting machine
3.3.2.1General instructions
Note!
When using the machine above a certain height above sea level and at low ambient temperatures, the performance and the service life of the diesel engine with turbo charger is considerably reduced. Under such conditions, there is an increased risk of overheating of the coolant circuit and the hydraulic oil.
To prevent damage to the diesel engine, the output of the engine is automatically in line with the elevation above sea level and the ambient temperature. Simultaneously observe the coolant circuit and the hydraulic oil cooling system.
3.3.2.2Tasks to be completed prior to machine start
Caution!
A fire can only be extinguished, if it is accessible.
Before starting the machine, open all locks of the hydraulic excavators panels. In the event of a fire, these doors can than be opened without delay to extinguish the fire.
Position of the locks: see chapter "Maintenance".
Caution!
When the tasks listed below are completed and the machine is already at operating temperature, there is risk of injury from scalding by hot coolant or oil.
Before completing the tasks described below, read the respective sections in chapter "Maintenance".
Before starting the machine, carry out the following routine procedure:
–Check oil level in engine*.
–Check coolant level of diesel engine*.
–Check oil level in hydraulic tank*. –Remove water from fuel system*.
–If necessary, remove ice and snow from the cooling air and combustion air intake openings.
* For instructions on how to complete these tasks, refer to chapter "Maintenance".
3.3.2.3Deactivating the electronic immobiliser (optional equipment)
On request, the machine can be equipped with an electronic immobiliser. Prior to start-up the electronic system checks whether the ignition key code is correct. If this is the case, the control system is enabled.
The machine is delivered with two sets of keys (blue and red):
1 Programmed ignition key (blue)
2 Master key (red)
Note!
The red master key cannot be used to start the machine. It is only used for the programming and deprogramming of additional blue ignition keys.
It is very important that the red master key is kept in a safe place (e.g. machine owner's office) and only the blue key is handed over to the machine operator. Start the machine with a blue programmed key.
Safety functions
The electronic immobiliser is automatically activated after five seconds, provided that the diesel engine is shut down and the ignition key is removed.
If more than five keys with different codes are inserted into the ignition within a period of one minute, the immobiliser remains activated for 15 minutes. During this period, it is not possible to start the machine with any other key.
Manipulation protection
The electronic immobiliser cannot be deactivated by manual manipulation to the machine.
Deprogramming keys
If a programmed key is lost, the remaining programmed keys must be deprogrammed and reprogrammed.
For detailed information (functions, deletion of program, programming of keys, troubleshooting), see the user manual of the manufacturer.
3.3.2.4Switching on the electrical system
Switch on the main battery switch:
Turn battery main switch to position 1 (ON).
Switching on the ignition:
0 Neutral position
1 Contact position
2 Ignition position
P Parking position
Turn the ignition key to contact position 1
The ignition is switched on.
As soon as the system is switched on, it completes a self-test of the control panel keyboard and the indicating instruments: all indicator lights are on for a short period of time.
During the self-test, observe the indicating instruments.
Note!
If the system fails to complete a self-test of the control panel keyboard and the indicating instruments, check whether the battery main switch is in the "ON" position.
3.3.2.5Starting the diesel engine
Note!
Incorrect starting can damage the diesel engine! Only operate the starter, if the diesel engine is off. Do not operate the starter for periods of more than 20 seconds.
If the machine fails to start after 20 seconds of starter operation: Wait at least 1minute until the next start attempt.
Turn the ignition key to position 0 before starting the engine again.
After three unsuccessful start attempts: identify the cause of the failure and eliminate it.
Engine starting process:
The ignition key must be in position 1
Set the engine to speed step 3
Turn ignition key to ignition position 2
As soon as the engine is running, release the ignition key. All indicator lamps must be off.
A buzzer signal is audible while the engine oil pressure is built up.
Starting engine at low ambient temperatures: Pre-heating improves the starting behaviour of the diesel engine at lower temperatures. Depending on the temperature, the diesel engine is automatically preheated.
Turn key switch to position 1.
If the diesel engine is pre-heated , the pre-heating symbol is displayed.
Set the engine to speed step 3
Wait until the symbol disappears. The pre-heating process is completed.
Turn ignition key to ignition position 2
As soon as the engine is running, release the ignition key. All indicator lamps must be off.
A buzzer signal is audible while the engine oil pressure is built up.
3.3.2.6Warm-up phase for the diesel engine
If the engine coolant is cold (temperature below 20°C), the speed of the diesel engine is automatically set to step3.
This process is continued until the engine coolant temperature reaches 20°C, or for maximum 3minutes.
Gradually increase the speed of the diesel engine to the desire value, using the key +
Note!
The engine is damaged if it is operated for a prolonged time at idle speed. Shut down the diesel engine, if the machine is not operated.
3.3.2.7Adjusting engine speed
Fig. 3-55 Speed indicator
The speed range of the diesel engine is displayed on a scale from 1 to 10.
The display indicates the current actual speed (see circle), while the speed indicator shows the set nominal speed (see arrow).
If there is a discrepancy between the two displays, the control system has automatically reduced the speed (idle speed).
The following events result in an automatic reduction of the speed:
–The servo controlS35 is switched off.
–The safety lever is moved up.
–The set idle automatic function detects that the operator does not touch any of the pilot control units.
After the initial operating status is restored, the machine is again run at nominal speed.
In the example, the diesel engine is running at speed of 1, while the nominal speed is 7.
Adjust the speed with the + and - buttons.
3
4
5
E Speed step 8 (Economy)
For particularly economical and environmentally-friendly operation.
For excellent digging performance at low fuel consumption.
PP Speed step 10 (Power Plus)
For highest digging performance and heavy-duty applications.
3.3.2.8To be observed after start-up
Danger!
Risk of asphyxiation from exhaust gases.
In confined rooms, do not start the engine unless you have ensured sufficient ventilation.
Open doors and windows in the window to provide ample fresh air.
Caution!
Risk of injury, if function check is not carried out properly.
Run the diesel engine until the engine and hydraulic oils have reached operating temperature. At low oil temperature, the steering responds only slowly.
Move the machine to an open space to test the function of the travel and the slewing gear brake.
Check the operating devices of the attachment to ensure that they work properly.
3.3.2.9Preventing overheating of engine
If the engine is overheating, the coolant temperature indicator light is on and an audible alarm signal (buzzer) is issued.
Immediately switch the diesel engine to the lower idle speed and shut it down (see also operating and maintenance instructions of Deutz engine).
Note!
In order to ensure optimised conditions for the operation of the engine, remove any ice and snow from the bonnet of the engine and the intake openings for cooling and combustion air.
3.3.3Switching off the diesel engine
Caution!
Risk of damage to the engine!
Do not suddenly shut down the engine from full-load operation.
Set the engine speed to the lower idle speed (step 1).
Let the diesel engine run for approx. 1 minute at lower idle speed to allow for temperature adjustment.
Turn the ignition key to position 0 to shut down the engine. Remove the ignition key.
3.3.4Starting aid (Optional extra)
Starting may be assisted using a fuel heating device.
The fuel feed is electrically heated to prevent the fuel from gelling at low outdoor temperatures.
Fuel preheating should be switched on at least 5minutes before starting in low outdoor temperatures.
Press switch S213 on the right control panel before starting and with the ignition switched on.
Fuel preheating is switched on. Indicator light in the switch illuminates. Starting the diesel engine.
Note!
Only switch off fuel preheating when the fuel tank has warmed up sufficiently. This may take up to 30minutes at low outdoor temperatures.
Press switch S213 again. Fuel preheating is switched off. Indicator light in the switch goes out.
3.3.5Jump start procedure
Danger!
When connecting to jump start batteries, old batteries can be subject to increased gas formation.
Wear safety glasses and protective gloves during the jump start procedure and avoid open flames and creating any sparks in the vicinity of the discharged vehicle battery. DANGER OF EXPLOSION!
Only use jump start cables with a sufficient cross section. Always follow the established jump starting procedure.
3.3.5.1Connecting the batteries
First connect the cable to the positive terminal (+) of the discharged battery and then to the positive terminal (+) of the jump start battery.
Connect the second cable to the negative terminal (-) of the discharged battery and then to the negative terminal (-) of the jump start battery.
Start the engine as described above.
Caution!
Before removing the jump start cable, be sure to bring the Diesel engine of the jump started machine into low idle.
For safety reasons, turn on a large user, such aswork headlights, uppercarriage lighting etc. to avoid overvoltage. The electronics could otherwise be damaged.
3.3.5.2Disconnecting the batteries
First remove the cable from the negative terminal (-) of the jump start battery and then from the negative terminal (-) of the discharged battery.
Remove the second cable from the positive terminal (+) of the jump start battery and then from the positive terminal (+) of the discharged battery.
Check the electrical functions of the machine.
For battery care and maintenance, see the chapter "Battery care".
3.3.6Travel operation
Before setting the machine to travel operation, put on the safety belt. For travel operation, the uppercarriage must be positioned in travel position on the undercarriage, i.e. the steering axle (oscillating axle) must be at the front of the machine, the rigid axle at the rear.
7
Before starting the machine, use your foot to release the retainer (arrow) at the brake pedal 6
Release the parking brake S16
3.3.6.1Shifting gear
The machine is equipped with a 2-speed gear system with shift lock that allows for gear shifting under load.
–1. gear: low travel speed
–2. gear: maximum travel speed can be reached
Switching gear when machine is standing still: Press the switch S42 down. The machine is in first gear. Press the switch S42 up. The machine is in second gear.
Switching gear when machine is in motion:
As the gear is switchable under load, it can be operated during travel. During travel in second gear: Press the switch S42 down. The first gear is preselected. The gear is only switched automatically when the necessary low speed is reached.
During travel in first gear: Press the switch S42 up. The gear is switched immediately. The machine is in second gear.
Selecting creeper gear:
Note!
To shift to creeper gear, the machine should be fully halted or at least slowed down to a very low speed, in order to prevent jerking.
Before travelling or when the machine is in motion, actuate the switch S21 to set the machine to creeper gear.
To deselect the creeper gear, press the switch S21 up.
3.3.6.2Travelling
The direction of travel is selected by pressing the rocker switch S263 on the right joystick.
Danger
There is a risk of injury due to lack of attention: when the uppercarriage is at an angle of 180° to the undercarriage, the travel and steering directions are reversed. Before travelling backwards, ensure that no persons or obstacles are in the path of the machine.
After completion of the travelling movement, set the travel direction switch to its neutral position (0 position).
Travelling forward
Press the rocker switch S263 down a The indicator light for forward travel is on.
Push the travelling pedal 7 slowly down.
Travelling backwards:
Press the rocker switch S263 up b The indicator light for reverse travel is on.
Push the travelling pedal 7 slowly down.
The travelling pedal 7 allows for stepless adjustment of the travel speed.
Adjust the engine speed to the desired travel speed.
Automatic:
If the servo control S35 is switched off (e.g. for on-road travel), the speed is controlled depending on the position of the travel pedal. The engine speed is automatically increased, if this is required.
Manual:
In excavator mode (servo control S35 on), the engine speed must be adjusted manually. Pushing down the travel pedal does not change the speed.
3.3.6.3Travelling on slopes
Caution!
To secure the machine on a slope, it is not sufficient to apply the working brakes (risk of pressure loss due to leakage).
Before leaving the operator's cab and/or when shutting down the machine, always apply the parking brake S16.
Tilt the safety lever upwards.
The machine is equipped with an automatic brake valve that prevents overspeeding of the hydraulic travel drive.
Travelling on slopes of inclination by more than 10%
Caution!
When travelling on slopes with an inclination of more than 10%, there is a risk that the machine is accelerated too quickly when shifted to second gear. On slopes with an inclination of more than 10%, always travel in first gear. Before accessing the slope, halt the machine and shift it to first gear.
3.3.6.4Using Tempomat
The Tempomat allows you to save the current drive pedal position. The travel speed is maintained even if the foot is removed from the pedal.
In excavator mode (servo control S35 on), the Tempomat can be used for forward and reverse travel.
In on-road travel mode (servo control S35 off), the Tempomat can only be used for forward travel.
Set the switch S363 to position 1 The Tempomat is activated. The indicator light in the switch is on. Press down the travel pedal 7 until the desired speed is reached.
