4. CHECKING AND ADJUSTING

[1] MANUAL TRANSMISSION TYPE

(1) Range Gear Shift Lever

Caution

•Park the tractor on a firm and level ground and set the parking brake.

•Lower the loader and other implement to the ground.

•Stop the engine, and remove the key.

When shifting slowly the range gear shift lever from the position H (High) to the position N (Neutral), the gear inside sometimes remains at the position H and does not move, although the range gear shift lever is at the position N

It has been caused by a bad adjustment of the turnbuckle.

Please verify and adjust the turnbuckle as follows.

9Y1211121TRS0001US0

Checking Range Gear Shift Lever Neutral Position

1.Shift the range gear shift level to N (Neutral) position on the H (High) speed side. Keeping the lever slightly being pushed forward (to the left of the photo), measure the overlapping length "A" of the level and guide.

2.Judgement

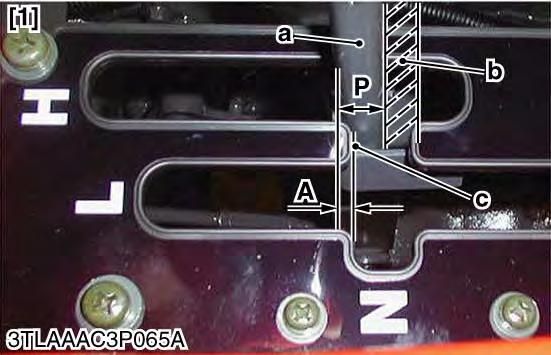

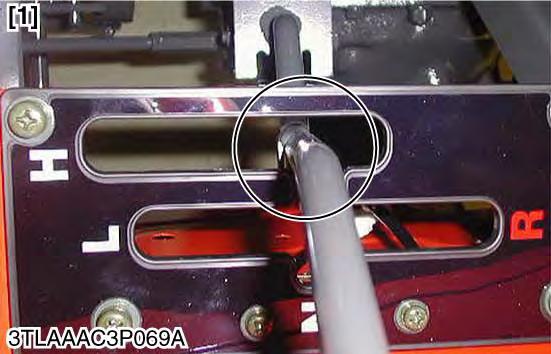

[1] CORRECT

Length "A" is 1 to 5 mm (0.04 to 0.1 in.) when the guide and lever are overlapping.

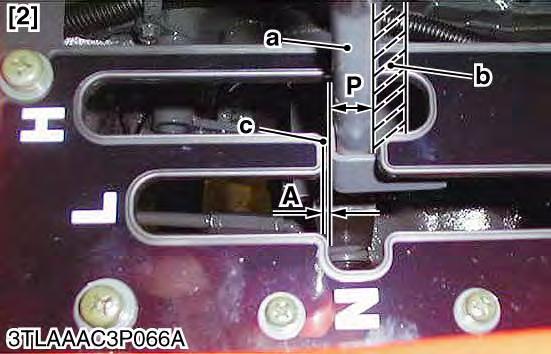

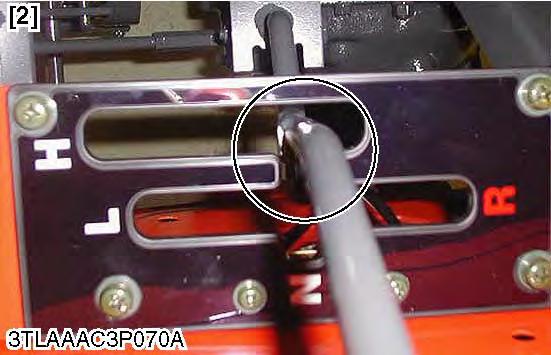

[2] INCORRECT a:The forward position of range lever in neutral position. b:The backward position of range lever in neutral position. c:The end of the guide.

The overlapping length "A" is less than 1 mm (0.04 in.), or when there is a clearance between the guide and lever. In this case, carry out the following adjustment.

A:Overlapping length of the level and guide.

P:The free play stroke of range lever.

9Y1211121TRS0002US0

Range Gear Shift Lever Position

1.Adjust (shorten) the turnbuckle H (3) so that the overlapping length becomes 1 to 5 mm (0.04 to 0.1 in.).

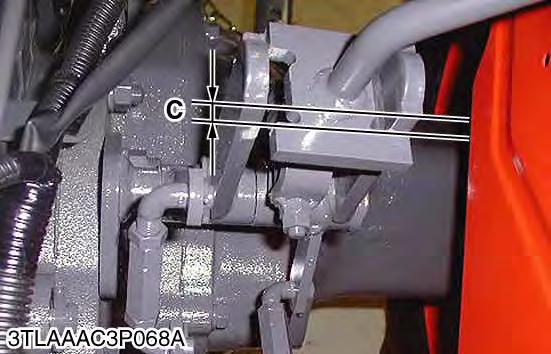

(Reference) a)If shifting to the directions of left and right (H→ L and L → H) is possible, the adjustment has been completed. b)When shifting to the directions of left and right is not possible, this is because the drift "C" in the forward and backward of the arm H (2) and arm (L - R) (4) in the neutral position has become too large. So make adjustment to the turnbuckle (L - R) (5) to correct the drift. c)Again, check by shifting and complete the adjustment.

2.Repeat shifting in a sequence of (H → L → H → R → H) and confirm the shifting is possible.

NOTE

•Lock securely the lock screws of adjusted turnbuckle to prevent from becoming loose.
