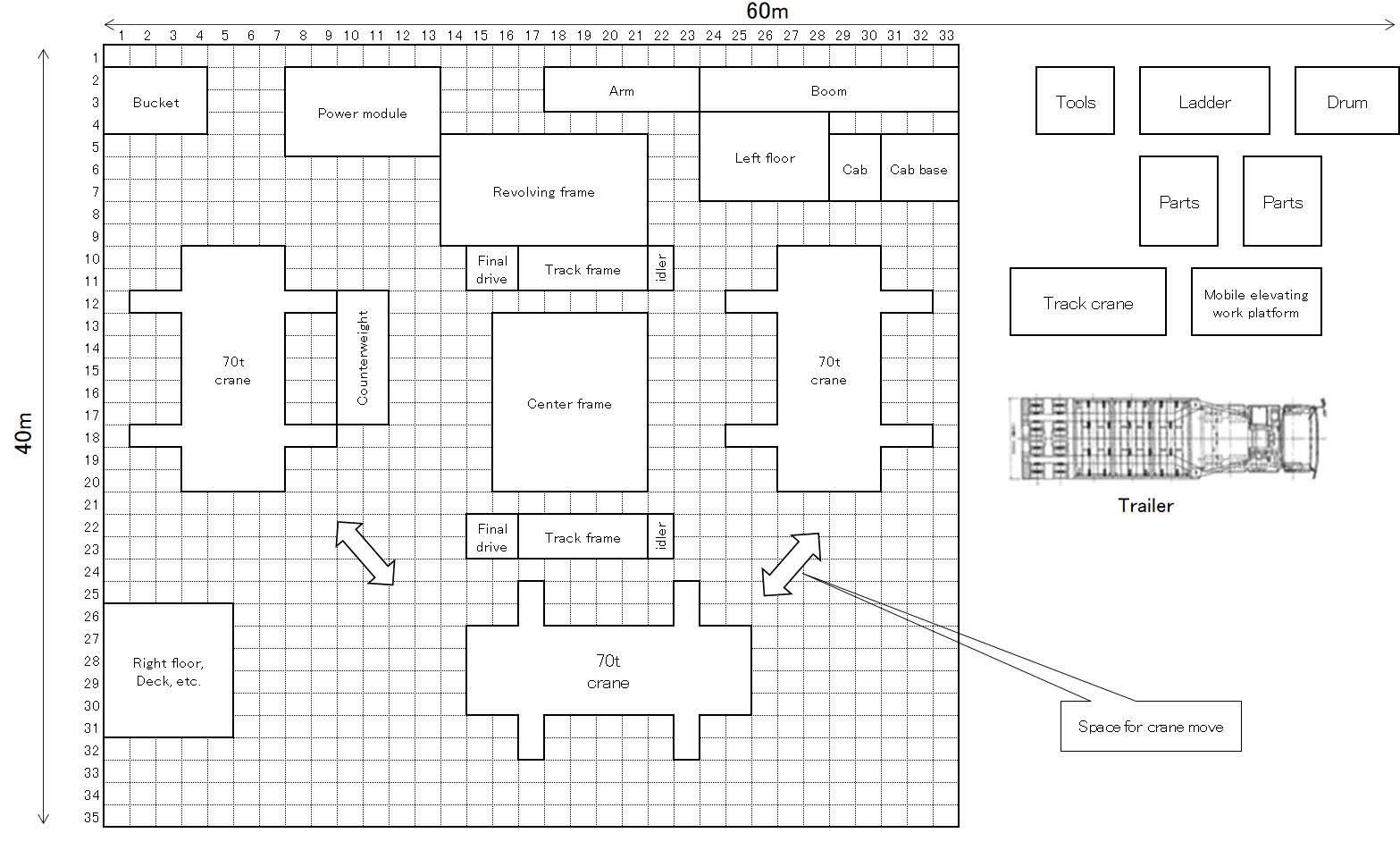

KIT LAYOUT DIAGRAM
from KOMATSU PC2000-11 PC2000-11E0 HYDRAULIC EXCAVATOR FIED ASSEMBLY INSTRUCTION MANUAL GEN00224-02 - PDF
• The dimensions given below are the minimum dimensions needed. • When selecting a work place, see "Points regarding local assembly". • When installing the revolving frame, place wooden blocks 700 mm high under it.
