Group32: FrontPlate

ReproducedbypermissionofDeere&Company, E 1988Deere&Company. Allrightsreserved.

Part

Item Number Description

1 360092 Stud 2 GM17461 Plate 3 360514 Stud 4 360516 Screw 5 360113 LockWasher 6 360101 Shaft 7 GM50613 Gear 8 360147 ThrustWasher 9 360179 SpringPine 10 # Screw,M10X65 11 360083 Shaft 12 336446 ThrustWasher 13 360140 Stud -- GM50612 Sealant

#Commonhardware;procurelocally.

Quantity Variation 3602

3 1 2 4 1 1 1 1 1 1 1 1 4 1

ReproducedbypermissionofDeere&Company, E 1988Deere&Company. Allrightsreserved.

Part

Item Number Description

1 GM23829 Plate,front 2 360092 Stud 3 360514 Stud 4 360140 Stud 5 336446 Washer,thrust 6 360101 Shaft,upper 7 360179 Pin,spring 8 360020 Gear 9 360147 Washer,thrust 10 # Screw 11 360083 Shaft,lower 12 360516 Screw

#Commonhardware;procurelocally.

Quantity Variation 3618

1 3 2 4 2 1 1 1 1 1 1 4

ReproducedbypermissionofDeere&Company, E 1988Deere&Company. Allrightsreserved.

Part

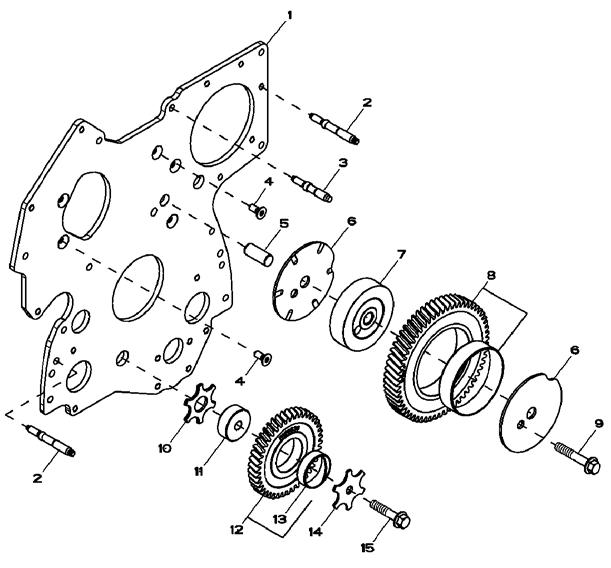

Item Number Description

1 GM46690 Plate 2 GM52531 Stud,84mm 3 360514 Stud,84mm 4 360516 Screw,M8x20 5 GM46693 Pin,dowel 6 GM46691 Washer,lock 7 GM46692 Shaft,upper 8 GM46694 Gear 9 # Screw,M10x60 10 336446 Washer,thrust 11 360083 Shaft 12 360021 Gear 13 360082 Bushing 14 360148 Washer,thrust 15 # Screw,M10x50

# Commonhardware;procurelocally.

Quantity Variation 3612

1 7 2 5 1 2 1 1 1 1 1 1 1 1 1
