FIGURE 6 2. OSCILLATING AXLE HYDRAULIC DIAGRAM CE SPEC

from JLG E600 E600J E600JP M600 M600J M600JP Parts Manual (3121814)_english

FIGURE 9 2. MODEL E600/J/JP & M600/J/JP VARIABLE PARTS

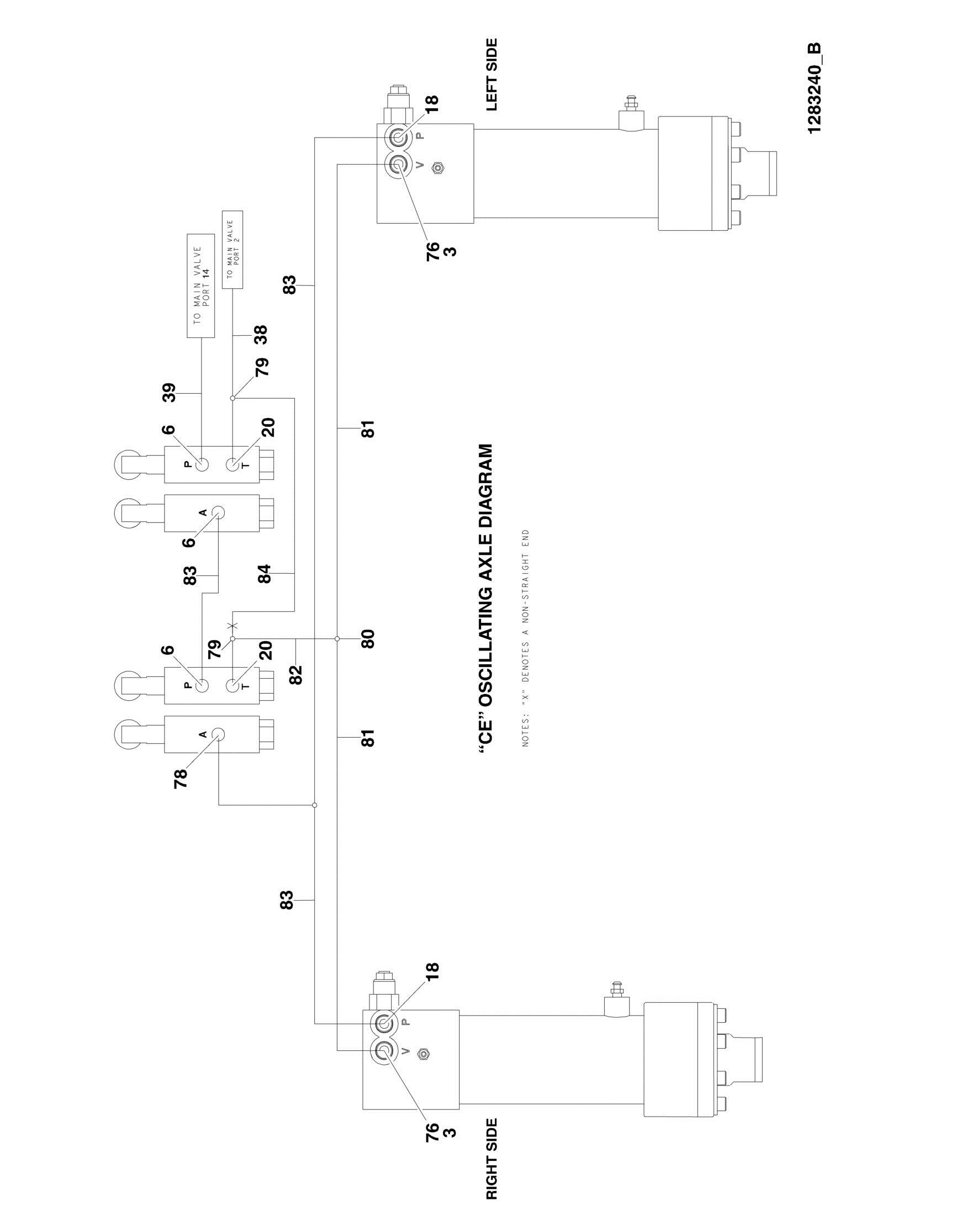

FIGURE 6-2. OSCILLATING AXLE HYDRAULIC DIAGRAM - CE SPEC

ITEM PART NUMBER QTY DESCRIPTION REV

2792456 Ref OSCILLATING AXLE HYDRAULIC DIAGRAM (CE SPEC) 1 3 2220371 2 Fitting, Straight 6 2220415 1 Fitting, Straight 18 2220582 2 Fitting, Straight 20 2220603 2 Fitting, Straight 38 2752631 1 Hose 39 2752977 1 Hose 76 2221074 2 Fitting, Straight Orifice 78 2221034 1 Fitting, Tee 79 2220635 2 Fitting, Tee 80 2220490 1 Fitting, Tee 81 2752479 2 Hose 82 2752649 1 Hose 83 2752588 3 Hose 84 2752463 1 Hose
