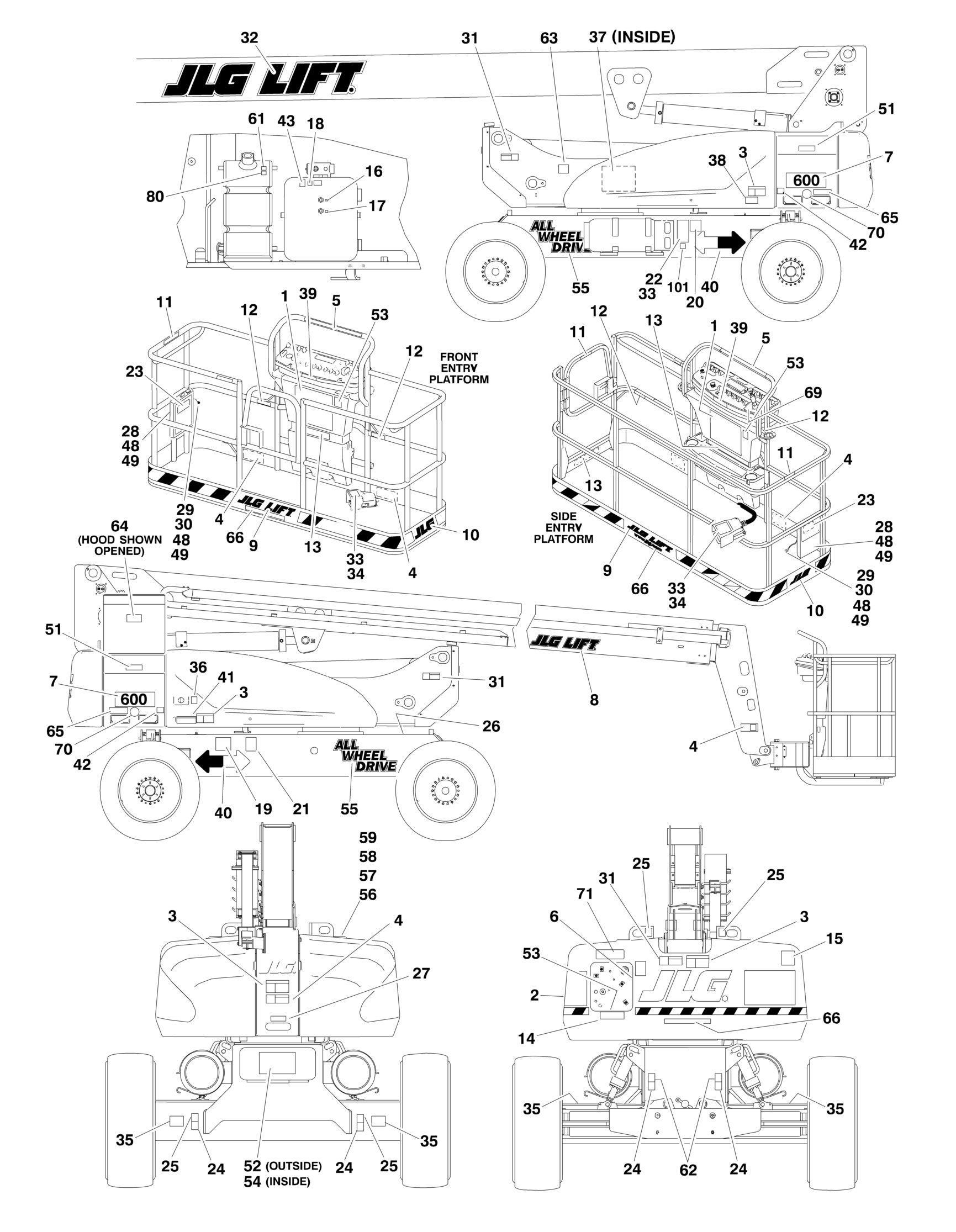

FIGURE 8 2. DECALS INSTALLATION (SN 0300095686 through 0300219271
ITEM PART NUMBER QTY DESCRIPTION
Ref DECAL INSTALLATION 0270031 Ref Standard Decal Installations E600 0270033 Ref Standard Decal Installations E600J 0270036 Ref Standard Decal Installations E600JP 0270032 Ref Standard Decal Installations M600 0270034 Ref Standard Decal Installations M600J 0270035 Ref Standard Decal Installations M600JP 0259937 Ref JLG Decals (E/M600 & E/M600J) 0270869 Ref JLG Decals (E/M600JP) 0275062 Ref CE Spec and Australian Spec 1 1705921 1 Decal - Danger/Caution (Platform) 2 1705822 1 Decal - Danger/Caution (MTB) 4 1701518 3 Decal - Crushing 7 Ref Decal - Model Designation Options: 7 1704490 2 Decal - Model Designation E600 7 1704492 2 Decal - Model Designation E600J 7 1704495 2 Decal - Model Designation E600JP 7 1704491 2 Decal - Model Designation M600 7 1704493 2 Decal - Model Designation M600J 7 1704494 2 Decal - Model Designation M600JP 8 1702860 1 Decal - JLG Lift (5in) 9 1702774 1 Decal - JLG Lift (3-1/2in) 10 Ref Decal - JLG Options: 10 1702773 2 Decal - JLG E/M600 & E/M600J 10 1704200 2 Decal - JLG E/M600JP (Jib Plus) 12 1704277 3 Decal - Attach Lanyard 13 1705978 1 Decal - 500lbs Max Capacity (Platform) 14 1705978 1 Decal - 500lbs Max Capacity (Ground) (SN 0300102556 through
0300219271)
15 1705084 1 Decal - Sound Power Level 16 1701502 1 Decal - Hydraulic Oil Level High 17 1701503 1 Decal - Hydraulic Oil Level Low 18 1701504 1 Decal - Hydraulic Oil 20 See Note NSS Decal - Bar Code (Note: Not Available for Purchase) 21 1700584 1 Decal - Patent (Prior to SN 0300161219) 22 See Note NSS Nameplate - Serial Number (Note: Not Available for Purchase) 23 1701509 1 Decal - Manual 24 1702300 4 Decal - Tie Down 25 1701500 4 Decal - Lift 26 1701529 2 Decal - Arrow 28 0860520 1 Box, Manual Storage 29 1060279 1 Lanyard (SN 0300095686 through 0300208739) 30 0641408 AR Bolt 1/4in-20NC x 1in 31 1701518 3 Decal - Warning/Crushing 32 1702862 1 Decal - JLG Lift (12in) 33 3820001 4 Rivet 34 1705928 1 Nameplate - Footswitch 35 1704708 4 Decal - Maximum Tire Load 36 1701644 1 Decal - Charger 37 1704705 1 Decal - Manual Descent
REV
2 2 2 4 4 4 C 1 C
ITEM PART NUMBER QTY
DESCRIPTION
38 1706392 1 Decal - Instructions Inside 40 1701501 2 Decal - Arrow 41 1706378 1 Decal - Battery Charger Instructions 42 1702155 2 Decal - Battery Disconnect 43 1704412 1 Decal - Oil Chart 48 3311405 AR Locknut 1/4in-20NC 49 4751400 AR Flatwasher 51 1705670 2 Decal - Warning Battery Ventilation 52 1706377 1 Decal - Lift Diagram 53 Ref Decal - Generator Danger Options: 53 Not Required 0 Decal - Generator Danger E600 & E600J & E600JP 53 Ref Decal - Generator Danger M600 & M600J & M600JP 53 1704286 1 Australian Spec (Prior to SN 0300107148) 53 1001093687 1 Australian Spec (SN 0300107148 through 0300219271) 53 1706899 1 Danish Spec (Prior to SN 0300107148) 53 1001093687 1 Danish Spec (SN 0300107148 through 0300219271) 53 1704360 NLA Dutch Spec (Use p/n 1001093687) 53 1704358 NLA French Spec (Use p/n 1001093687) 53 1704361 NLA German Spec (Use p/n 1001093687) 53 1704359 NLA Italian Spec (Use p/n 1001093687) 53 1704286 1 Norwegian Spec (Prior to SN 0300107148) 53 1001093687 1 Norwegian Spec (SN 0300107148 through 0300219271) 53 1704362 NLA Spanish Spec (Use p/n 1001093687) 53 See Note NSS Swedish Spec (Note: Not Available for Purchase) 53 1704286 1 UK English Spec (Prior to SN 0300107148) 53 1001093687 1 UK English Spec (SN 0300107148 through 0300219271) 54 1704254 1 Decal - Cable Routing 55 Ref Decal - All Wheel Drive Options: 55 Not Required 0 Decal - All Wheel Drive 2WD 55 1704724 2 Decal - All Wheel Drive 4WD 56 Ref Cover, Exhaust Hole Options: 56 1670954 1 Cover, Exhaust Hole E600 & E600J & E600JP 56 Not Required 0 Cover, Exhaust Hole M600 & M600J & M600JP 57 3900283 AR Screw, Button Head 58 4711600 AR Flatwasher 3/8in Thin 59 3311605 AR Locknut 3/8in-16NC 61 Ref Decal - Fuel Options 61 Not Required 0 Decal - Fuel E600 & E600J & E600JP 61 1701505 1 Decal - Fuel M600 & M600J & M600JP 62 1701499 2 Decal - No Lift 63 Ref Decal - Warning Hand Crushing Options: 63 1702391 2 UK English Spec 63 1701517 2 All Other Specs 64 1704728 2 Decal - Tip Over (Battery Weight) 65 1704723 2 Decal - Patents Pending Only (SN 0300095686 through
0300143328)
66 1704885 Ref Decal - Website Options: 66 1704885 2 Decal - Website (Prior to SN 0300176058) 66 1704885 1 Decal - Website (SN 0300176058 through 0300219271) 70 1001121510 2 Decal - Hybrid (M600/M600J/M600JP Only) (SN 0300143328
through 0300219271)
71 1001189882 1 Decal - MSSO (CE Spec) (SN 0300208739 through
REV
ITEM PART NUMBER QTY DESCRIPTION
0300219271)
1001214029 Ref Decal - EAC Installation (CIS and Russia Specs) (SN
0300216507 through 0300219271)
101 1001173703 1 Decal - EAC
REV
A
