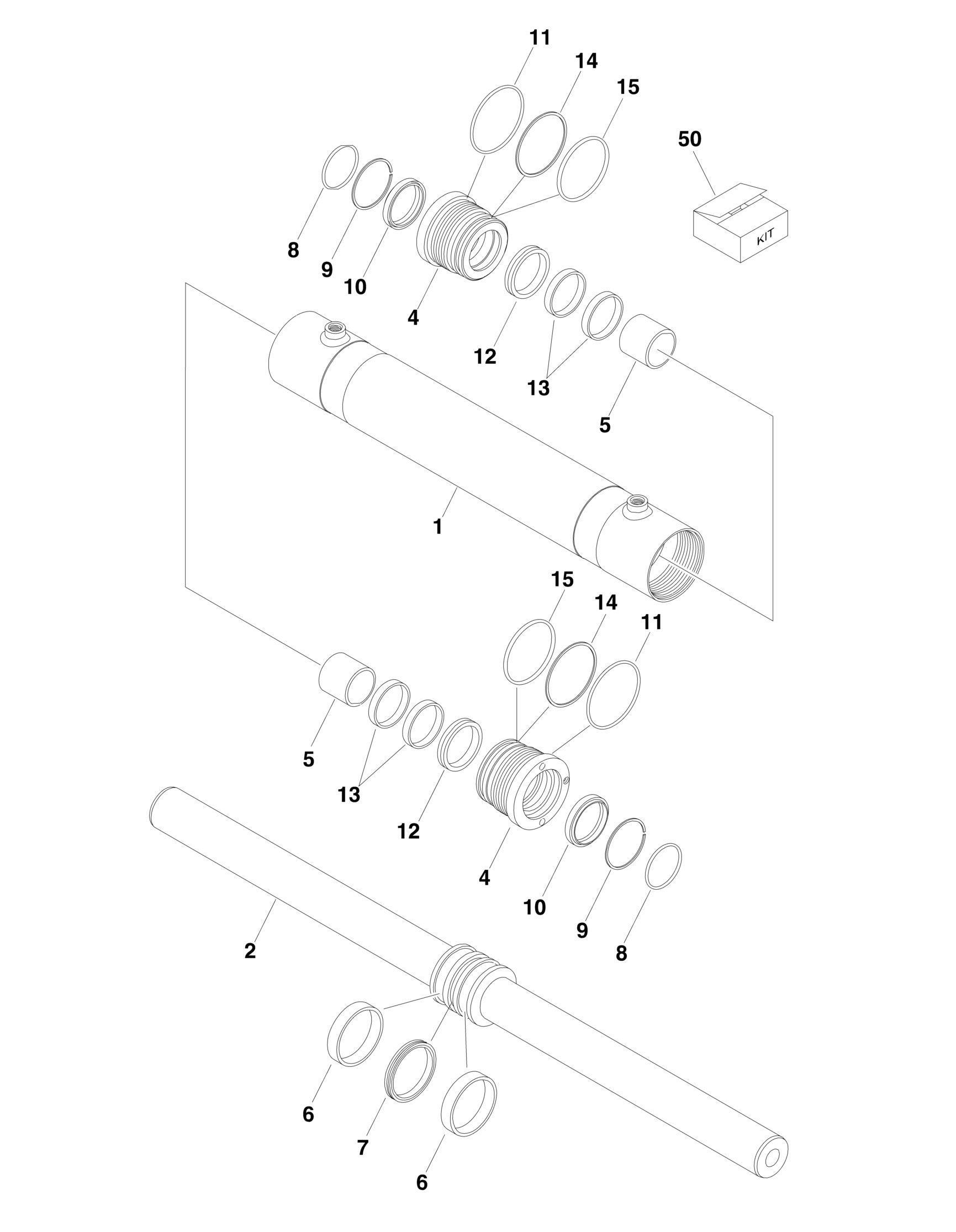

FIGURE 5 10. STEER CYLINDER ASSEMBLY (SN 0300165153 through 0300219271
ITEM PART NUMBER QTY
DESCRIPTION
1001140281 Ref STEER CYLINDER ASSEMBLY Ref Note: Original Equipment components may have been
replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts.
1 70004134 1 Barrel 2 70004135 1 Rod 4 70004132 2 Head 5 70004133 2 Spacer 6 See Note NSS Ring, Wear (Note: Use Item 50) 7 See Note NSS T-Seal (Note: Use Item 50) 8 70003820 2 O-Ring 9 70002219 2 Retainer 10 See Note NSS Wiper (Note: Use Item 50) 11 See Note NSS O-Ring (Note: Use Item 50) 12 See Note NSS Seal (Note: Use Item 50) 13 See Note NSS Ring, Wear (Note: Use Item 50) 14 See Note NSS Ring, Back-up (Note: Use Item 50) 15 See Note NSS O-Ring (Note: Use Item 50) 50 70004127 1 Seal Kit - 1001140281 Cylinder (Includes Items 6-7 & 10-15)
REV
A
