FIGURE 6 1. 4WD HYDRAULIC DIAGRAM

from JLG E600 E600J E600JP M600 M600J M600JP Parts Manual (3121814)_english

FIGURE 9 2. MODEL E600/J/JP & M600/J/JP VARIABLE PARTS

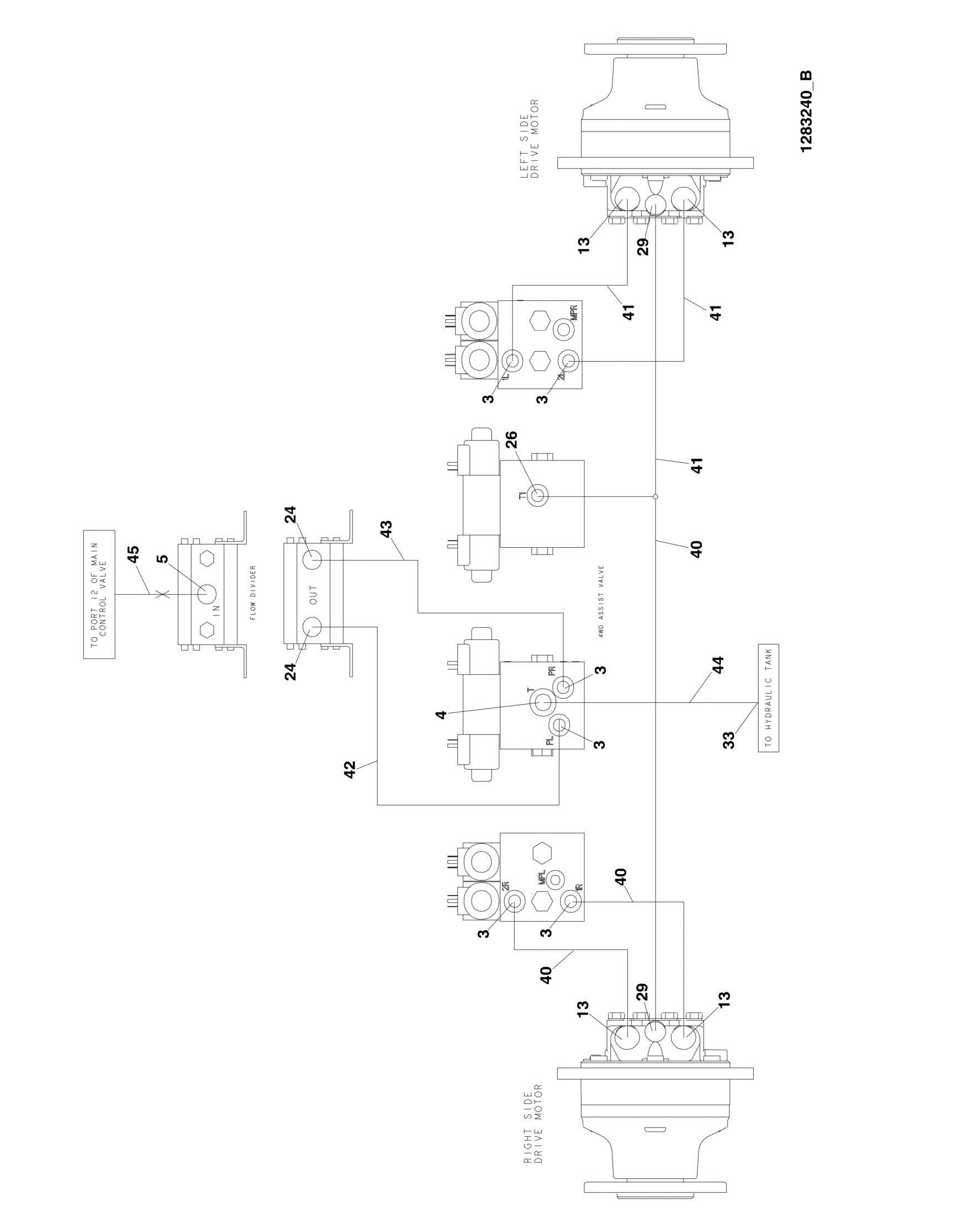

FIGURE 6-1. 4WD HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

2792423 Ref DRIVE HYDRAULIC DIAGRAM - 4WD 3 2220371 6 Fitting, Straight 4 2220373 1 Fitting, Straight 5 2220374 1 Fitting, Straight 13 2220497 4 Fitting, Straight 14 2220828 2 Fitting, Elbow 16 2220899 1 Fitting, Tee 19 2220998 2 Fitting, Straight 40 2753459 3 Hose 41 2753460 3 Hose 42 2753118 1 Hose 43 2752648 1 Hose 44 2753452 1 Hose 45 2753461 1 Hose

FIGURE 6 1. 4WD HYDRAULIC DIAGRAM

Next Article

FIGURE 9 2. MODEL E600/J/JP & M600/J/JP VARIABLE PARTS

FIGURE 6-1. 4WD HYDRAULIC DIAGRAM

FIGURE 6-1. 4WD HYDRAULIC DIAGRAM

ITEM PART NUMBER QTY

DESCRIPTION

REV
