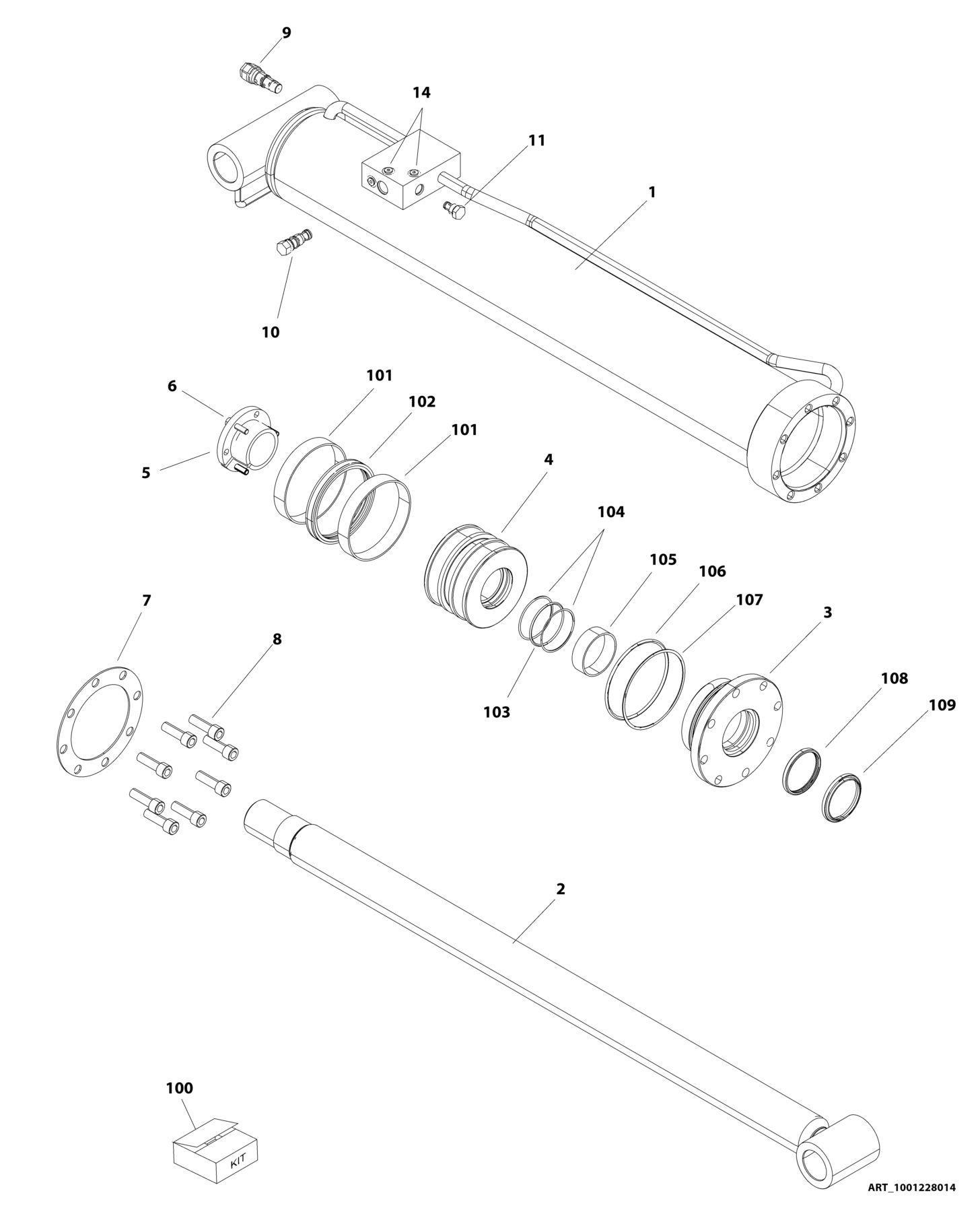

FIGURE 5 7. LIFT CYLINDER ASSEMBLY MAIN (SERVICE REPLACEMENT
ITEM PART NUMBER QTY DESCRIPTION REV
1001228014 Ref LIFT CYLINDER ASSEMBLY - MAIN (SERVICE REPLACEMENT) A Ref Note: Original Equipment components may have been replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts. 1 See Note NSS Barrel Weldment (Note: Not Available for Purchase) 2 70006368 1 Rod Weldment 3 70006367 1 Head 4 70006366 1 Piston 5 70006365 1 Bushing, Tapered 6 0630536 1 Screw 7 70006364 1 Washer 8 3932032 8 Capscrew 9 4640509 1 Valve, Counterbalance 10 4640438 1 Cartridge, Check Valve 11 4641129 1 Cartridge, Check Valve 12 See Note NSS Plug (Not Shown) 13 See Note NSS Plug 14 2220883 4 Plug 100 2901886 1 Seal Kit (Includes Items 101-109) 101 See Note NSS Ring, Wear (Note: Use Item 100) 102 See Note NSS Seal, Piston (Note: Use Item 100) 103 See Note NSS O-Ring (Note: Use Item 100) 104 See Note NSS Ring, Back-up (Note: Use Item 100) 105 See Note NSS Ring, Wear (Note: Use Item 100) 106 See Note NSS O-Ring (Note: Use Item 100) 107 See Note NSS Ring, Back-up (Note: Use Item 100) 108 See Note NSS Seal, Rod (Note: Use Item 100) 109 See Note NSS Wiper, Rod (Note: Use Item 100)
