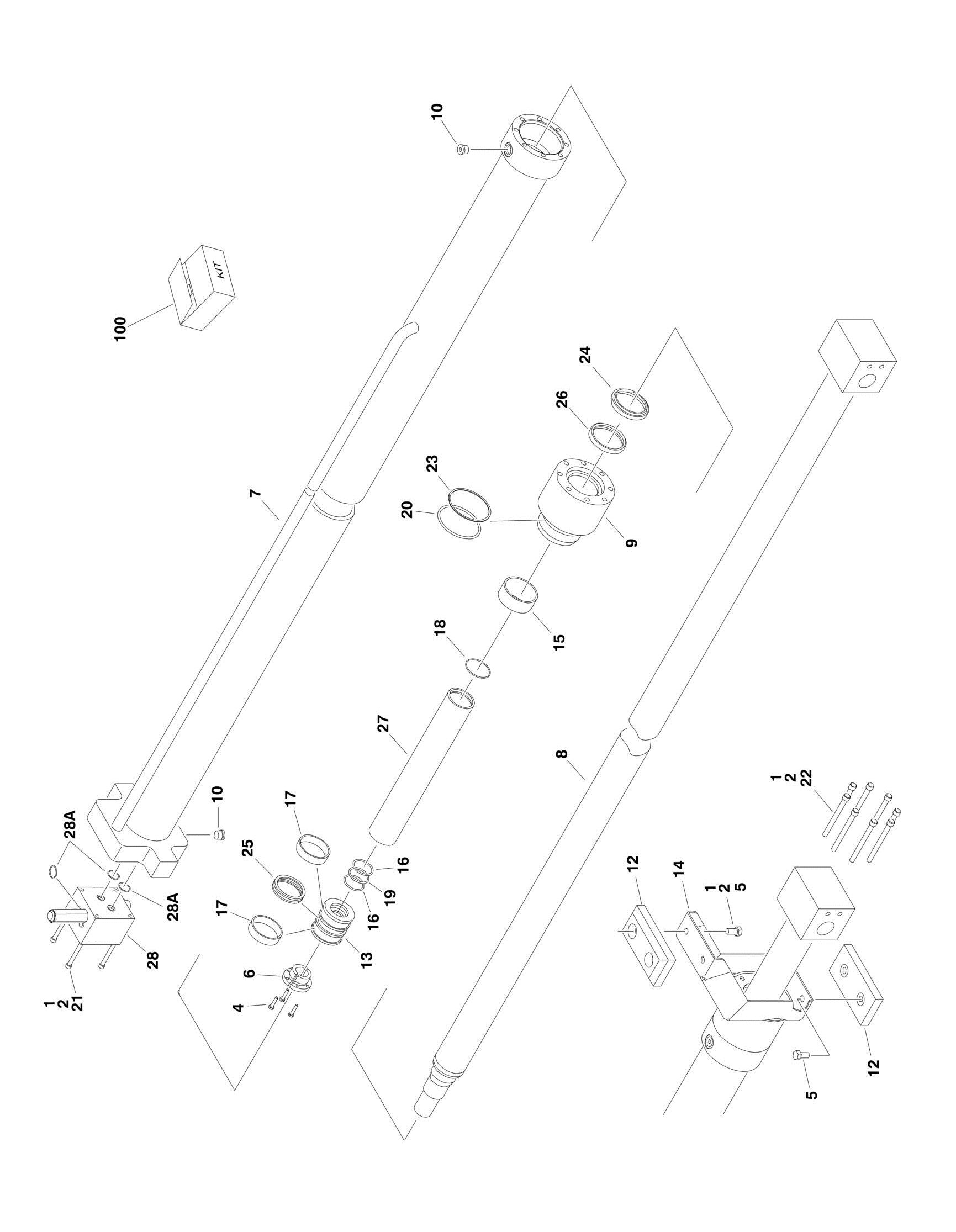

FIGURE 5 11. TELESCOPE CYLINDER ASSEMBLY

FIGURE 5-11. TELESCOPE CYLINDER ASSEMBLY

FIGURE 5-11. TELESCOPE CYLINDER ASSEMBLY

ITEM PART NUMBER QTY

DESCRIPTION

Ref TELESCOPE CYLINDER ASSEMBLY 1684009 Ref Telescope Cylinder Assembly E600/M600 1684010 Ref Telescope Cylinder Assembly E600J/M600J/E600JP/M600JP

(Original Equipment)

1 0100011 AR Locking, Compound 2 0100038 AR Primer, Locking 4 0630535 3 Bolt 1/4in-20NC x 1-1/8in 5 0641606 4 Bolt 3/8in-16NC x 3/4in 6 0961902 1 Bushing, Tapered 7 Ref Barrel Options: 7 1683905 1 Barrel E600/M600 7 1683900 1 Barrel E600J/M600J/E600JP/M600JP 8 Ref Rod Options: 8 1683907 1 Rod E600/M600 8 1683902 1 Rod E600J/M600J/E600JP/M600JP 9 1684008 1 Head 10 2220885 2 Plug, O-Ring 12 3340880 2 Pad, Support 13 3480257 1 Piston 14 3572040 1 Plate, Support 15 See Note NSS Ring, Wear (Note: Use Item 100) 16 See Note NSS Ring, Back-up (Note: Use Item 100) 17 See Note NSS Ring, Wear (Note: Use Item 100) 18 See Note NSS O-Ring (Note: Use Item 100) 19 See Note NSS O-Ring (Note: Use Item 100) 20 See Note NSS O-Ring (Note: Use Item 100) 21 3931448 4 Capscrew, Socket Head 1/4in-20NC x 3in 22 3931528 8 Bolt, Socket Head 5/16in-18NC x 1-3/4in 23 See Note NSS Ring, Back-up (Note: Use Item 100) 24 See Note NSS Wiper (Note: Use Item 100) 25 See Note NSS Seal (Note: Use Item 100) 26 See Note NSS Seal, Rod (Note: Use Item 100) 27 4568030 1 Spacer 28 4641179 1 Valve Assembly (Note: No Serviceable Parts - Purchase Complete Valve) 28A 7026616 1 Seal Kit - 4641179 Valve 100 2902019 1 Seal Kit (Includes Items 15-20 & 23-26)

REV

D D
