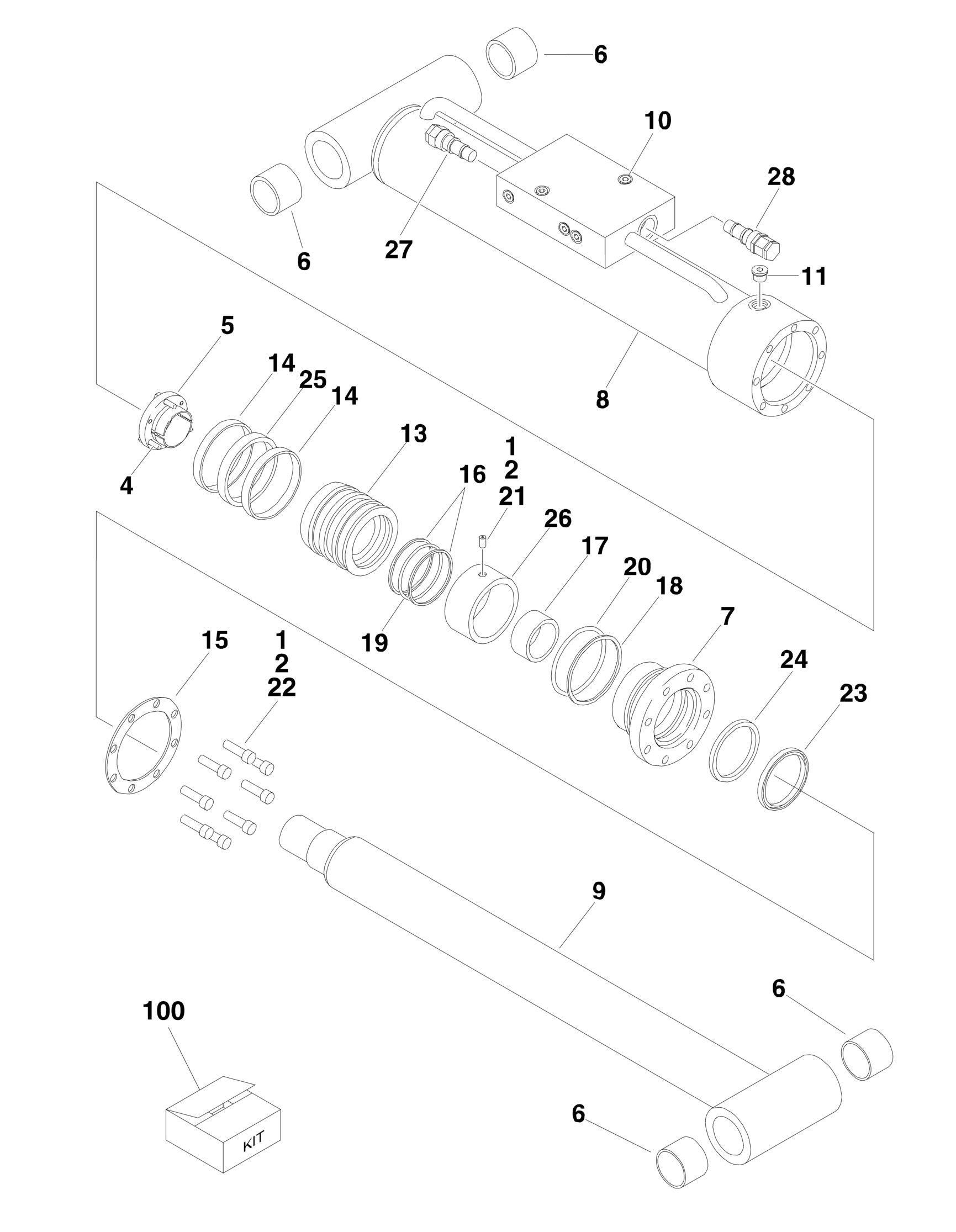

FIGURE 5 2. LEVEL CYLINDER ASSEMBLY PLATFORM SLAVE (Prior to SN 0300163480
ITEM PART NUMBER QTY DESCRIPTION REV
Ref LEVEL CYLINDER ASSEMBLY - PLATFORM SLAVE (Prior to
SN 0300163480)
1683867 Ref Level Cylinder Assembly E600 & M600 D 1683926 Ref Level Cylinder Assembly E600J, M600J, E600JP & M600JP F Ref Note: Original Equipment components may have been
replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts.
1 0100011 AR Locking, Compound 2 0100038 AR Primer, Locking 4 0630534 3 Bolt #10-24NC x 1in 5 Ref Bushing, Tapered Options: 5 0962185 1 Bushing, Tapered E600 & M600 5 0961893 1 Bushing, Tapered E600J, M600J, E600JP & M600JP 6 Ref Bushing Options: 6 0961947 4 Bushing E600 & M600 6 0961951 4 Bushing E600J, M600J, E600JP & M600JP 7 Ref Head Options: 7 1683050 1 Head E600 & M600 7 1683053 1 Head E600J, M600J, E600JP & M600JP 8 Ref Barrel Options: 8 1683868 1 Barrel E600 & M600 8 1683927 1 Barrel E600J, M600J, E600JP & M600JP 9 Ref Rod Options: 9 1683870 1 Rod E600 & M600 9 1683929 1 Rod E600J, M600J, E600JP & M600JP 10 2220883 8 Plug, O-Ring 11 2220885 1 Plug, O-Ring 13 Ref Piston Options: 13 3480232 1 Piston E600 & M600 13 3480260 1 Piston E600J, M600J, E600JP & M600JP 14 See Note NSS Ring, Wear (Note: Use Item 100) 15 Ref Washer, Ring 15 3760367 1 Piston E600 & M600 15 3760368 1 Piston E600J, M600J, E600JP & M600JP 16 See Note NSS Ring, Back-up (Note: Use Item 100) 17 See Note NSS Ring, Wear (Note: Use Item 100) 18 See Note NSS Ring, Back-up (Note: Use Item 100) 19 See Note NSS O-Ring (Note: Use Item 100) 20 See Note NSS O-Ring (Note: Use Item 100) 21 Ref Setscrew 1/4in-20NC x 1/2in Options: 21 3900139 1 Setscrew 1/4in-20NC x 1/2in E600 & M600 21 Not Required 0 Setscrew 1/4in-20NC x 1/2in E600J, M600J, E600JP & M600JP 22 3931516 8 Bolt, Socket Head 5/16in-18NC x 2in 23 See Note NSS Wiper (Note: Use Item 100) 24 See Note NSS Seal (Note: Use Item 100) 25 See Note NSS T-Seal Seal (Note: Use Item 100) 26 Ref Spacer, Tube Options: 26 4568068 1 Spacer, Tube E600 & M600 26 4566468 1 Spacer, Tube E600J, M600J, E600JP & M600JP
ITEM PART NUMBER QTY
DESCRIPTION
27 4640509 1 Cartridge, Valve (Counterbalance Non-Vented) 27 2900792 1 Seal Kit - 4640509 Valve 28 4640932 1 Cartridge, Valve (Counterbalance Vented) 28 7011112 1 Seal Kit - 4640932 Valve 100 Ref Seal Kit Options (Includes Items 14, 16-20 & 23-25) 100 2901549 1 Seal Kit E600 & M600 100 2901901 1 Seal Kit E600J, M600J, E600JP & M600JP
