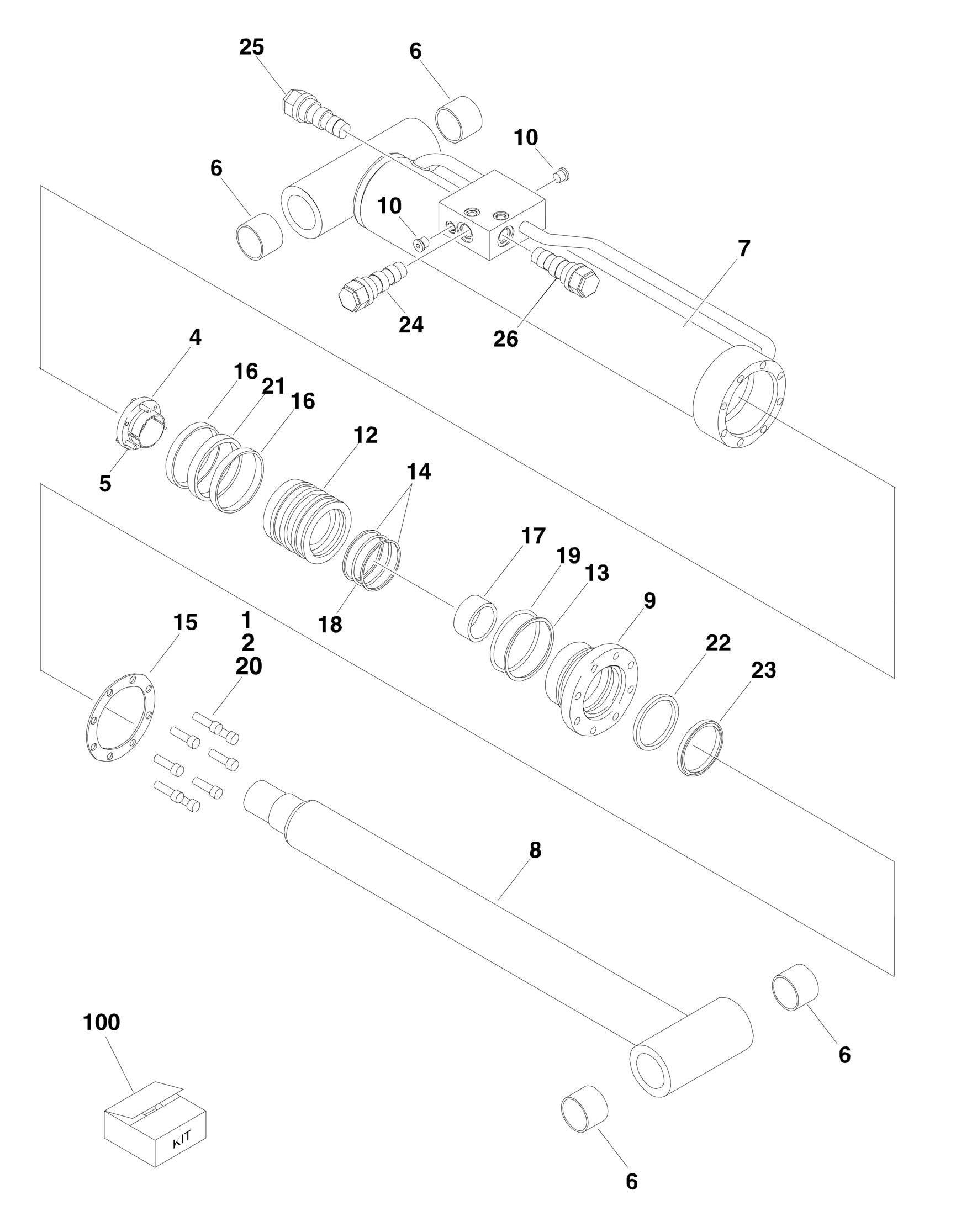

FIGURE 5 6. LIFT CYLINDER ASSEMBLY MAIN (ORIGINAL EQUIPMENT
ITEM PART NUMBER QTY
DESCRIPTION
1683876 Ref LIFT CYLINDER ASSEMBLY (ORIGINAL EQUIPMENT) Ref Note: Original Equipment components may have been
replaced with Service Replacement components part. Identify p/n stamped on cylinder before ordering parts.
1 0100011 AR Locking, Compound 2 0100038 AR Primer, Locking 4 0630536 3 Bolt, Socket Head #10-24NC x 1-1/4in 5 0961898 1 Bushing, Tapered 6 Ref Bushing Options: 6 0962224 4 Bushing (Prior to SN 0300065314) 6 0961950 4 Bushing (SN 0300065314 through 0300219271) 7 1683877 1 Barrel Weldment 8 1683879 1 Rod Weldment 9 1683910 1 Head 10 2220883 2 Plug, O-Ring #4 12 3480258 1 Piston 13 See Note NSS Ring, Back-up (Note: Use Item 100) 14 See Note NSS Ring, Back-up (Note: Use Item 100) 15 3760372 1 Ring, Washer 16 See Note NSS Ring, Wear (Note: Use Item 100) 17 See Note NSS Ring, Wear (Note: Use Item 100) 18 See Note NSS O-Ring (Note: Use Item 100) 19 See Note NSS O-Ring (Note: Use Item 100) 20 3932032 8 Capscrew 5/8in-11NC x 2in 21 See Note NSS Seal (Note: Use Item 100) 22 See Note NSS Seal, Rod (Note: Use Item 100) 23 See Note NSS Wiper (Note: Use Item 100) 24 4640438 1 Valve, Check 24 2900770 1 Seal Kit - 4640438 25 4640509 1 Valve, Counterbalance 25 2900792 1 Seal Kit - 4640509 26 4641129 1 Valve, Check 26 7012967 1 Seal Kit - 4641129 Valve 100 2901886 1 Seal Kit (Includes Items 13-14, 16-19 & 21-23)
REV
G
