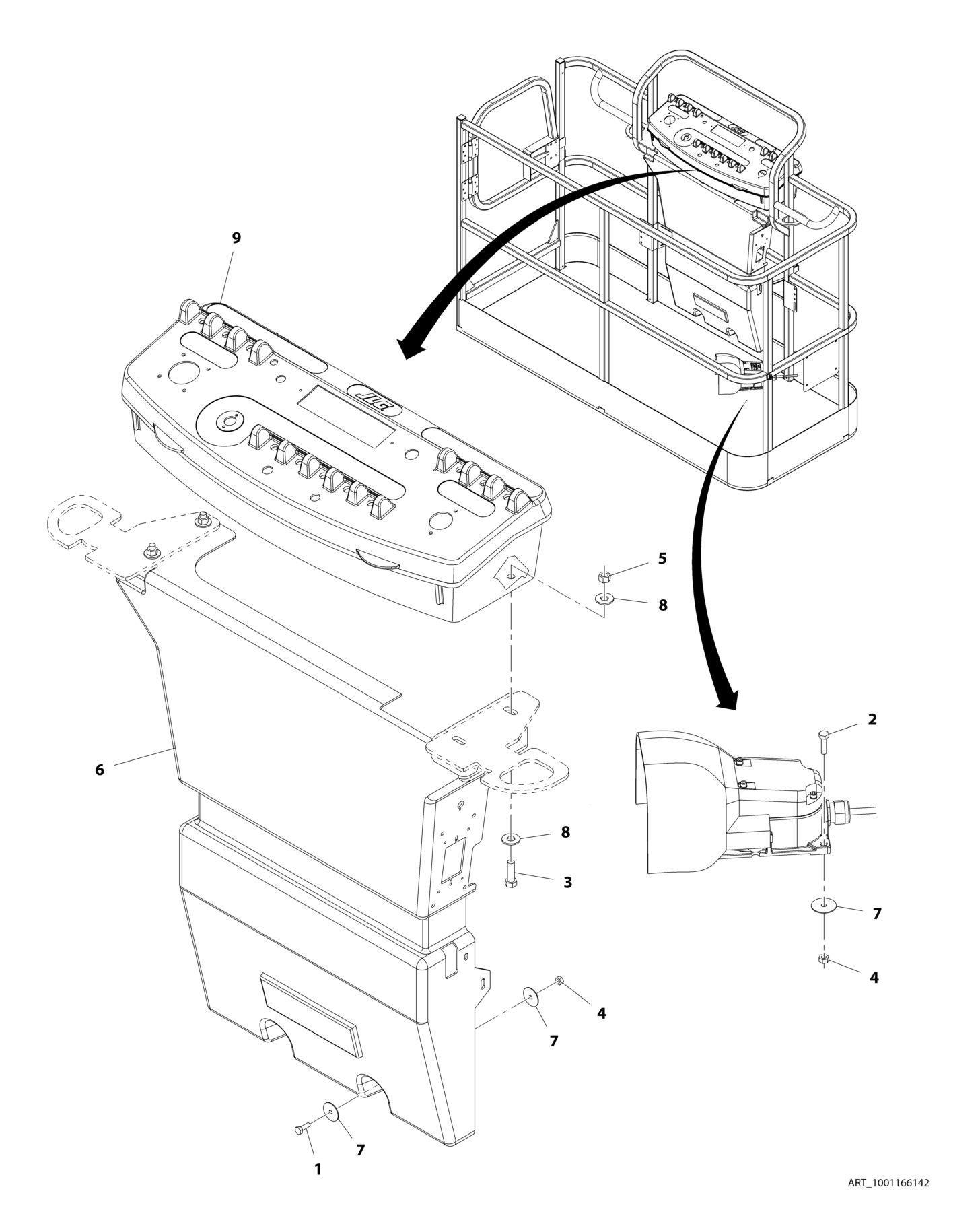

FIGURE 5-8. CONSOLE BOX INSTALLATION - WITHOUT SKYGUARD
ITEM PART NUMBER QTY DESCRIPTION REV
1001166142 Ref CONSOLE BOX INSTALLATION - WITHOUT SKYGUARD C 1 0641406 2 Bolt, 1/4-20 x 3/4 2 0641408 3 Bolt, 1/4-20 x 1 3 0641610 4 Bolt, 3/8-16 x 1-1/4 4 3311405 5 Nut, Lock 1/4-20 5 3311605 4 Nut, Lock 3/8-16 6 3380434 1 Panel, Decal Mount 7 4740362 7 Washer, 1/4 8 4751600 8 Washer, 3/8 9 1001167267 NLA Platform Console Box Assembly (See PLATFORM CONSOLE BOX ASSEMBLY - WITHOUT SKYGUARD for Breakdown) (Use p/n 1001202612) (Prior to SN E300003610) 9 1001202612 1 Platform Console Box Assembly (See PLATFORM CONSOLE BOX ASSEMBLY - WITHOUT SKYGUARD for Breakdown) (SN
1300007286 through 1300007383, SN E300003610 to Present)
10 1001164728 1 Harness, Platform Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) (SN 1300007286 through 1300007383,
