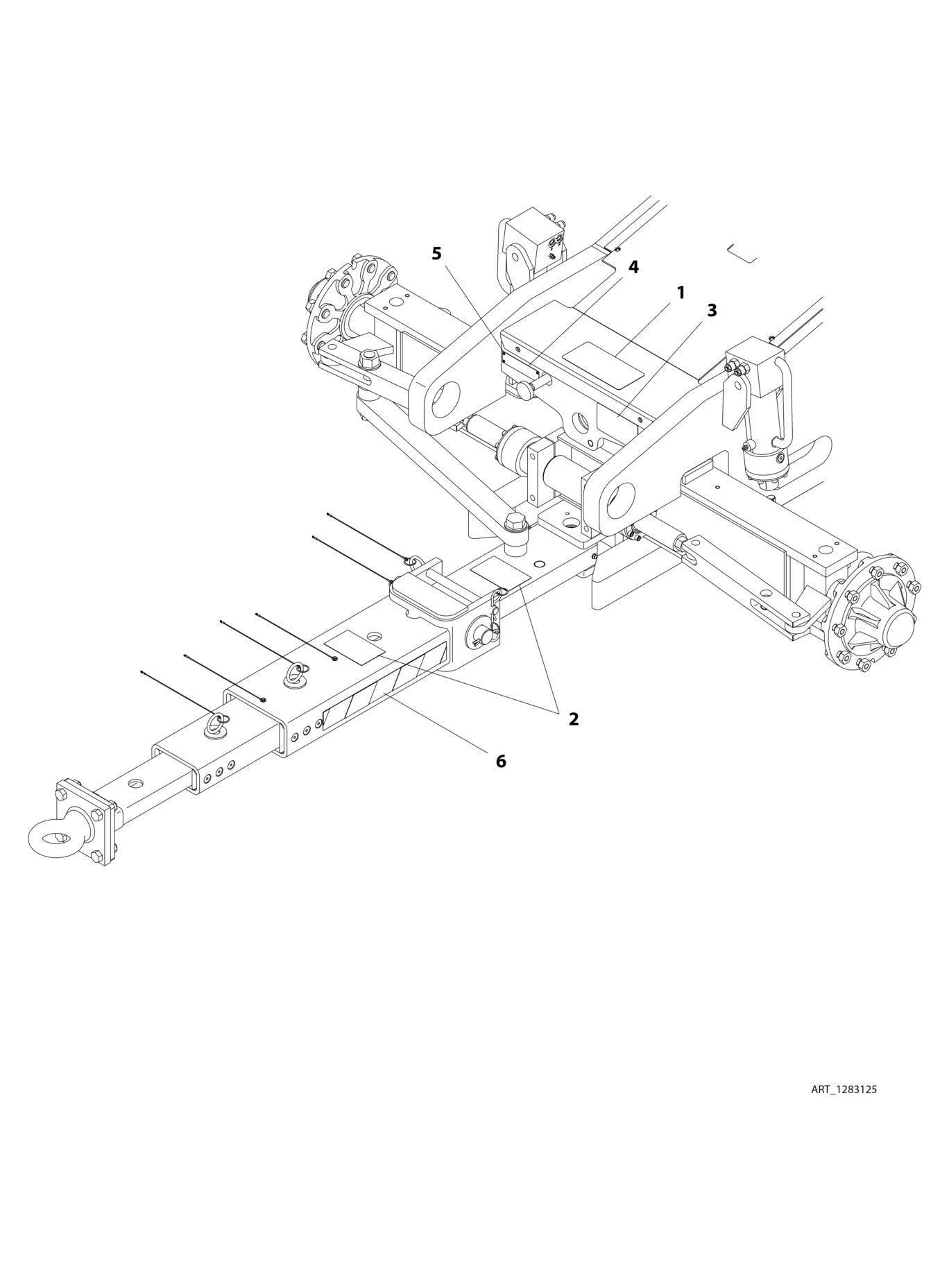

FIGURE 9-4. TOW BAR DECAL INSTALLATION - ENGLISH LANGUAGE (ANSI, ANSI EXPORT AND CE SPECS

FIGURE 9-4. TOW BAR DECAL INSTALLATION - ENGLISH LANGUAGE (ANSI, ANSI EXPORT AND CE SPECS)

FIGURE 9-4. TOW BAR DECAL INSTALLATION - ENGLISH LANGUAGE (ANSI, ANSI EXPORT AND CE SPECS)

ITEM PART NUMBER QTY

DESCRIPTION

0270115 Ref TOW BAR DECAL INSTALLATION - ENGLISH LANGUAGE (ANSI, ANSI EXPORT AND CE SPECS) 1 1704482 1 Decal - Tow Instructions 2 1704578 3 Decal - Crushing 3 1703450 1 Decal - Warning 4 3250872 1 Nameplate - Steer/Tow Select Valve 5 3820001 4 Rivet 6 4420051 43 in /1.1m Tape, Safety

REV

A
