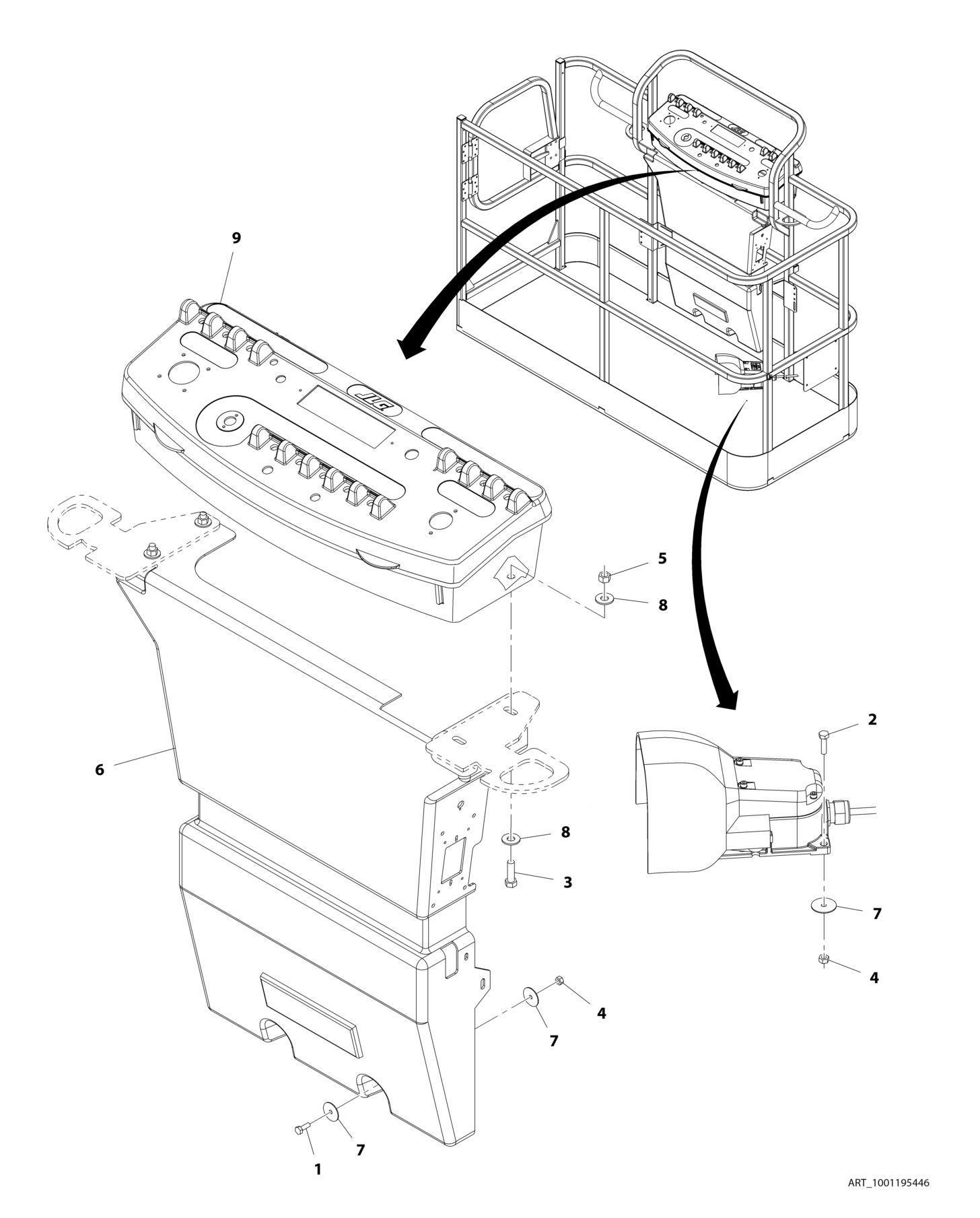

FIGURE 5-9. CONSOLE BOX INSTALLATION - WITH SKYGUARD (Prior to SN E300007543
ITEM PART NUMBER QTY
DESCRIPTION
1001195446 Ref CONSOLE BOX INSTALLATION - WITH SKYGUARD 1 0641406 2 Bolt, 1/4-20 x 3/4 2 0641408 3 Bolt, 1/4-20 x 1 3 0641610 4 Bolt, 3/8-16 x 1-1/4 4 3311405 5 Nut, Lock 1/4-20 5 3311605 4 Nut, Lock 3/8-16 6 3380434 1 Panel, Decal Mount 7 4740362 7 Washer, 1/4 8 4751600 8 Washer, 3/8 9 1001195444 NLA Platform Console Box Assembly (See PLATFORM CONSOLE BOX ASSEMBLY - WITH SKYGUARD for Breakdown) (Use p/n 1001242847) (Prior to SN E300003610) 9 1001202611 NLA Platform Console Box Assembly (See PLATFORM CONSOLE BOX ASSEMBLY - WITH SKYGUARD for Breakdown) (Use p/n 1001242847) (SN 1300007286 through 1300007383, SN
E300003610 through E300007542)
10 1001164728 1 Harness, Platform Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) (SN 1300007286 through 1300007383,
SN E300003015 through E300007542) REV
