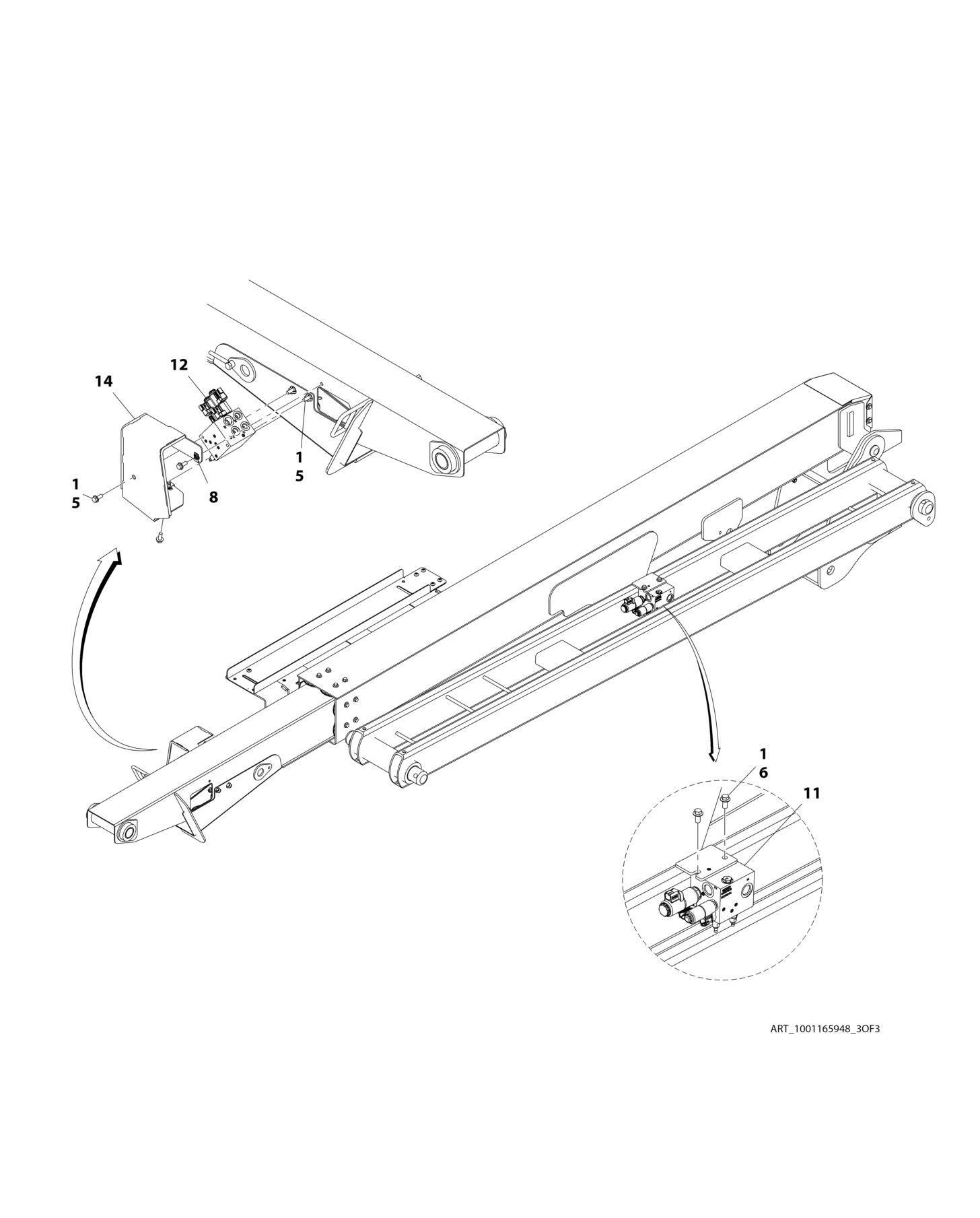

FIGURE 4-11. VALVES INSTALLATION - BOOM MOUNTED

FIGURE 4-11. VALVES INSTALLATION - BOOM MOUNTED

FIGURE 4-11. VALVES INSTALLATION - BOOM MOUNTED

ITEM PART NUMBER QTY

DESCRIPTION

1001165948 Ref VALVES INSTALLATION - BOOM MOUNTED 1 0100011 AR Compound, Locking 5 5250810 5 Bolt M8 x 20 6 5251010 2 Bolt M10 x 20 8 1001118274 2 Nut M8 11 1001162535 1 Upright Valve Assembly (See UPRIGHT VALVE ASSEMBLY for Breakdown) 12 1001162536 1 Boom Valve Assembly (See BOOM VALVE ASSEMBLY for Breakdown) 14 1001170375 1 Shield

REV

H
