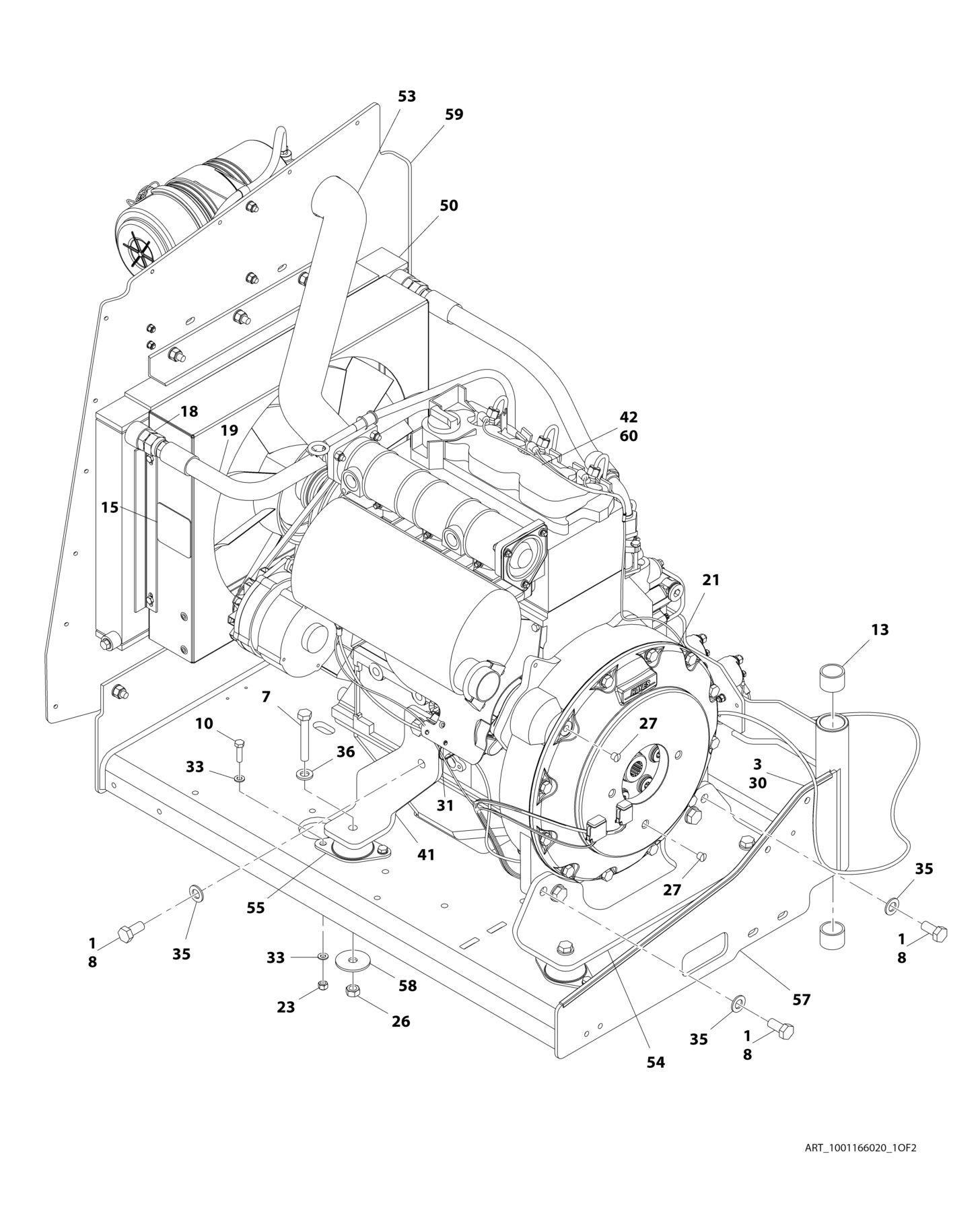

FIGURE 3-3. ENGINE ASSEMBLY - DEUTZ D2.3L3 ENGINE
FIGURE 3-3. ENGINE ASSEMBLY - DEUTZ D2.3L3 ENGINE
FIGURE 3-3. ENGINE ASSEMBLY - DEUTZ D2.3L3 ENGINE
ITEM PART NUMBER QTY
DESCRIPTION
1001166020 Ref ENGINE ASSEMBLY - DEUTZ D2.3L3 ENGINE 1 0100011 AR Compound, Locking 2 0100020 AR Sealant, Pipe 3 0100081 AR Adhesive 4 0080231 1 Spacer, Fan 7 0711224 4 Bolt, M12 x 80mm Grade 10.9 8 0771414 8 Bolt, M14 x 30mm Grade 10.9 9 0760610 6 Bolt, M6 x 20mm 10 0760814 8 Bolt, M8 x 30mm 11 0760815 9 Bolt, M8 x 35mm 12 0761015 11 Bolt, M10 x 35mm 13 0961951 2 Bushing 14 1320016 2 Clamp 15 1703162 2 Decal - Caution Fan 16 2060025 1 Fan 17 2220315 1 Fitting, Barbed 18 2220451 2 Fitting, Straight JIC/ORB 19 2720398 1 Hose 20 2720447 1 Hose 21 2902065 1 Pump Coupling Kit (See PUMP COUPLING KIT for Breakdown) 22 3290605 6 Nut, Lock, M6 x 1 23 3290805 13 Nut, Lock M8 x 1.25 25 3291005 11 Nut, Lock M10 x 1.5 26 3331215 4 Nut, M12 x 1.75 27 3520054 2 Plug 28 3740067 2 Relay Assembly 28 3300220 2 Nut 28 3321001 1 Nut, #10-32 28 3740140 1 Relay 28 4761000 1 Washer, Lock #10 28 1001111424 2 Washer 29 3960407 1 Gasket 30 4060805 2.3 ft /0.7m Trim, Flex Shield 31 4240099 AR Tie-Strap 32 4811700 15 Washer, M6 33 4811900 20 Washer, M8 34 4812000 22 Washer, M10 35 4812200 8 Washer, M14 36 5241200 4 Washer, M12 Hardened 37 8305401 2 Nut, Jam .250-20 38 8307109 2 Washer, .250 39 8310548 2 Screw, 1/4 NC x 1/2 40 1001132195 1 Bracket, Engine Mount 41 1001132196 1 Bracket, Engine Mount 42 1001136079 3 gal /11.3L Oil, Motor 43 1001138173 1 Support, Service Indicator 44 1001138175 1 Bracket, Service Indicator 45 1001138248 2 ft/0.6m Tube
REV
K
ITEM PART NUMBER QTY DESCRIPTION
46 1001139819 1 Adapter, Air Intake 47 1001141694 1 Clamp, Air Cleaner 48 1001141995 1 Fitting, Barbed 49 1001143390 1 Indicator 50 1001150998 1 Radiator 52 1001165388 1 Air Cleaner Assembly 52 70003783 1 Element, Air Cleaner 53 1001165389 1 Hose 54 1001166717 1 Bracket, Engine Mount 55 1001166718 4 Isolator, Engine Mount 56 1001167111 1 Harness Engine - Deutz D2.3L3 (See ELECTRICAL SECTION for Breakdown) 57 1001167520 1 Tray, Engine 58 1001168018 4 Washer, Snubbing 59 1001168059 1 Plate, Radiator Mounting 60 1001170693 1 Engine, Deutz D2.3L3 (See ENGINE COMPONENTS - DEUTZ D2.3L3 ENGINE for Breakdown) 61 4923451 1 Harness, Glow Plugs 62 0760614 3 Bolt, M6 x 30 63 8406109 1 Clip 64 1001178859 1 Cable, Alternator 65 1001179903 1 Bracket (Prior to SN E300003245) 65 1001214975 1 Bracket (SN 1300007286 through 1300007383, SN E300003245
