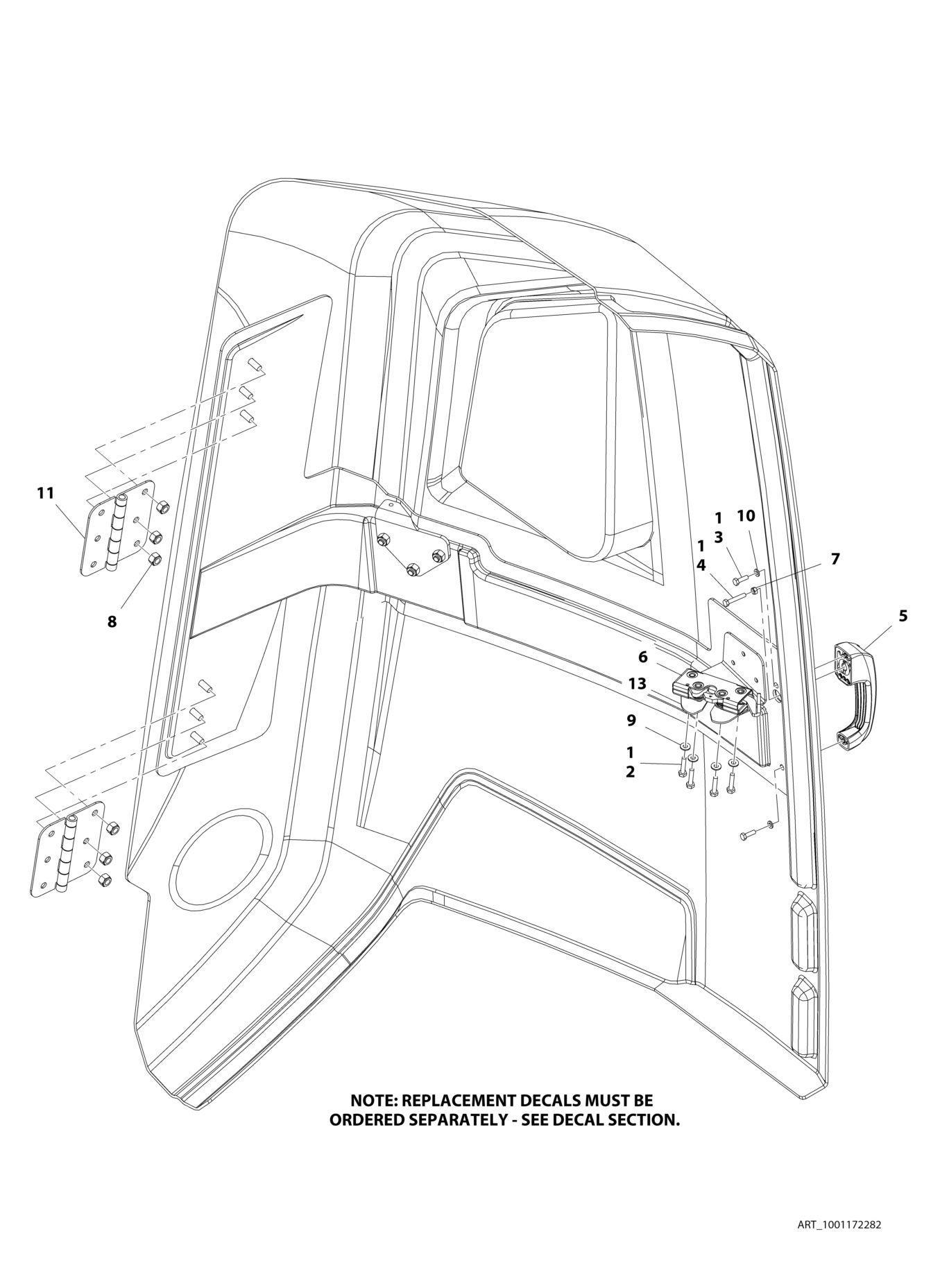

FIGURE 2-23. HOOD ASSEMBLY - TANK SIDE (Prior to SN E300006377

FIGURE 2-23. HOOD ASSEMBLY - TANK SIDE (Prior to SN E300006377)

FIGURE 2-23. HOOD ASSEMBLY - TANK SIDE (Prior to SN E300006377)

ITEM PART NUMBER QTY

DESCRIPTION

1001172282 Ref HOOD ASSEMBLY - TANK SIDE 1 0100011 AR Compound, Locking 2 0641410 4 Bolt 1/4 x 1-1/4 3 0760610 2 Bolt M6 x 20 4 0760615 1 Bolt M6 x 35 5 2560187 1 Handle 6 2940173 1 Latch 7 3290601 1 Nut M6 8 3291005 6 Nut M10 9 4711400 4 Washer 1/4 10 4811700 2 Washer M6 11 1001139384 2 Hinge 13 1001200458 1 Plate, Latch Guide

REV

C
