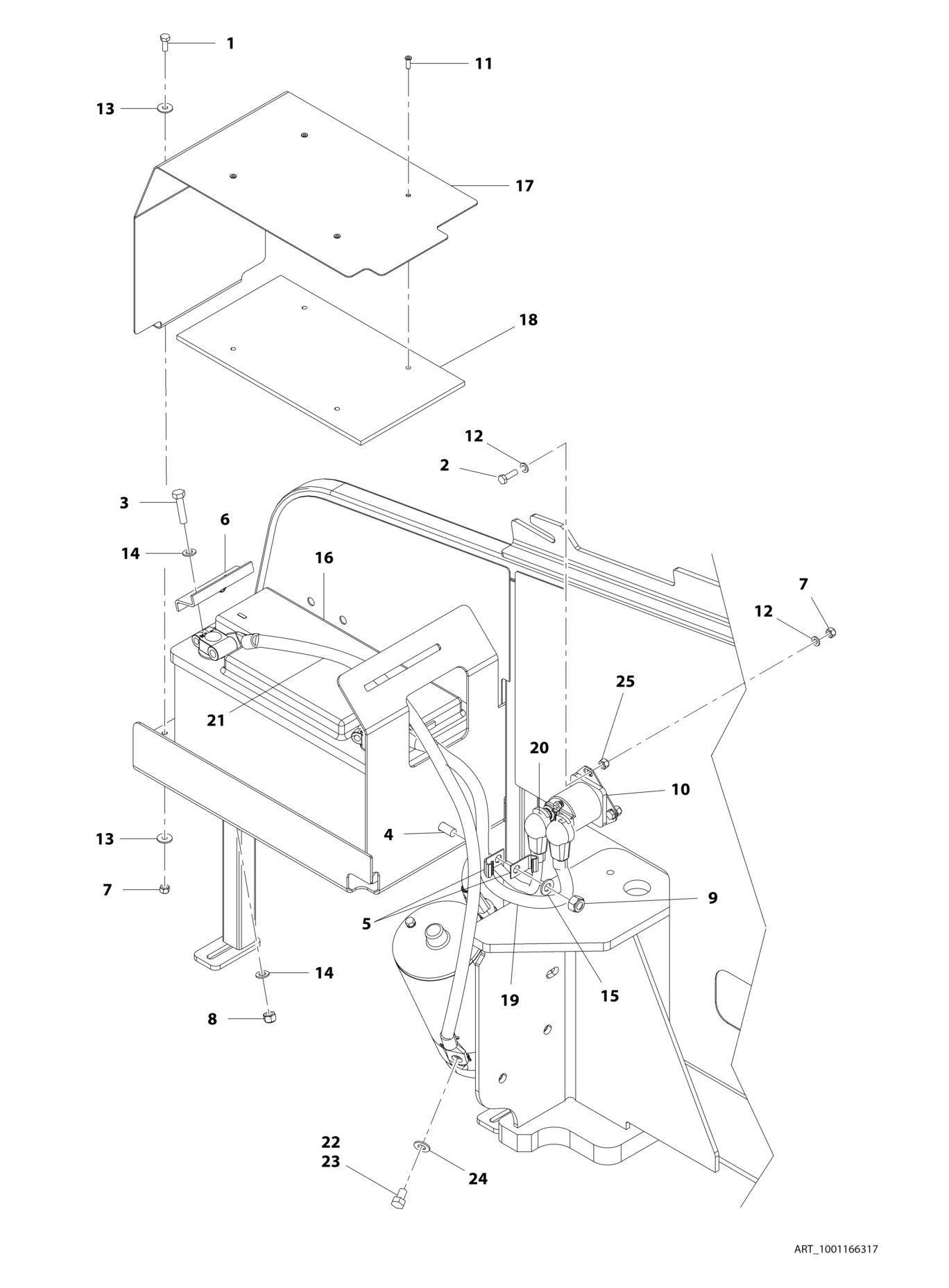

FIGURE 2-20. BATTERY AND CABLE INSTALLATION

FIGURE 2-20. BATTERY AND CABLE INSTALLATION

FIGURE 2-20. BATTERY AND CABLE INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001166317 Ref BATTERY AND CABLE INSTALLATION 1 0760608 2 Bolt M6 x 16 1 0760610 2 Bolt M6 x 20 2 0760612 2 Bolt M6 x 25 3 0760815 2 Bolt M8 x 35 4 0761012 1 Bolt M10 x 25 5 1320223 2 J-Clip 6 1787217 1 Clamp 7 3290605 4 Nut M6 8 3290805 2 Nut M8 9 3291005 1 Nut M10 10 3740067 1 Relay 10 3300220 2 Nut 3/8 10 1001111424 2 Washer 3/8 10 3321001 1 Nut #10 10 4761000 1 Washer #10 11 3820032 4 Rivet 12 4811700 4 Washer M6 13 4811702 4 Washer M6 14 4811900 4 Washer M8 15 4812000 2 Washer M10 16 8008750 1 Battery 17 1001117240 1 Cover 18 1001119278 1 Insulation 19 1001171678 1 Cable, Battery (Positive + to Aux Relay) (SN E300000001 through

E300002973)

19 1001205752 1 Cable, Battery (Positive + to Aux Relay) (SN 1300007286 through

1300007383, SN E300002974 to Present)

20 1001171679 1 Cable, Battery (Aux Relay to Aux Pump) 21 1001171680 1 Cable, Battery (Negative – to Aux Pump) (SN E300000001

through E300002973)

21 1001205750 1 Cable, Battery (Negative – to Aux Pump) (SN 1300007286

through 1300007383, SN E300002974 to Present)

22 0100011 AR Compound, Locking 23 0641504 1 Bolt 5/16 x 1/2 24 4711500 1 Washer 5/16 25 3290601 2 Nut M6

REV

F
