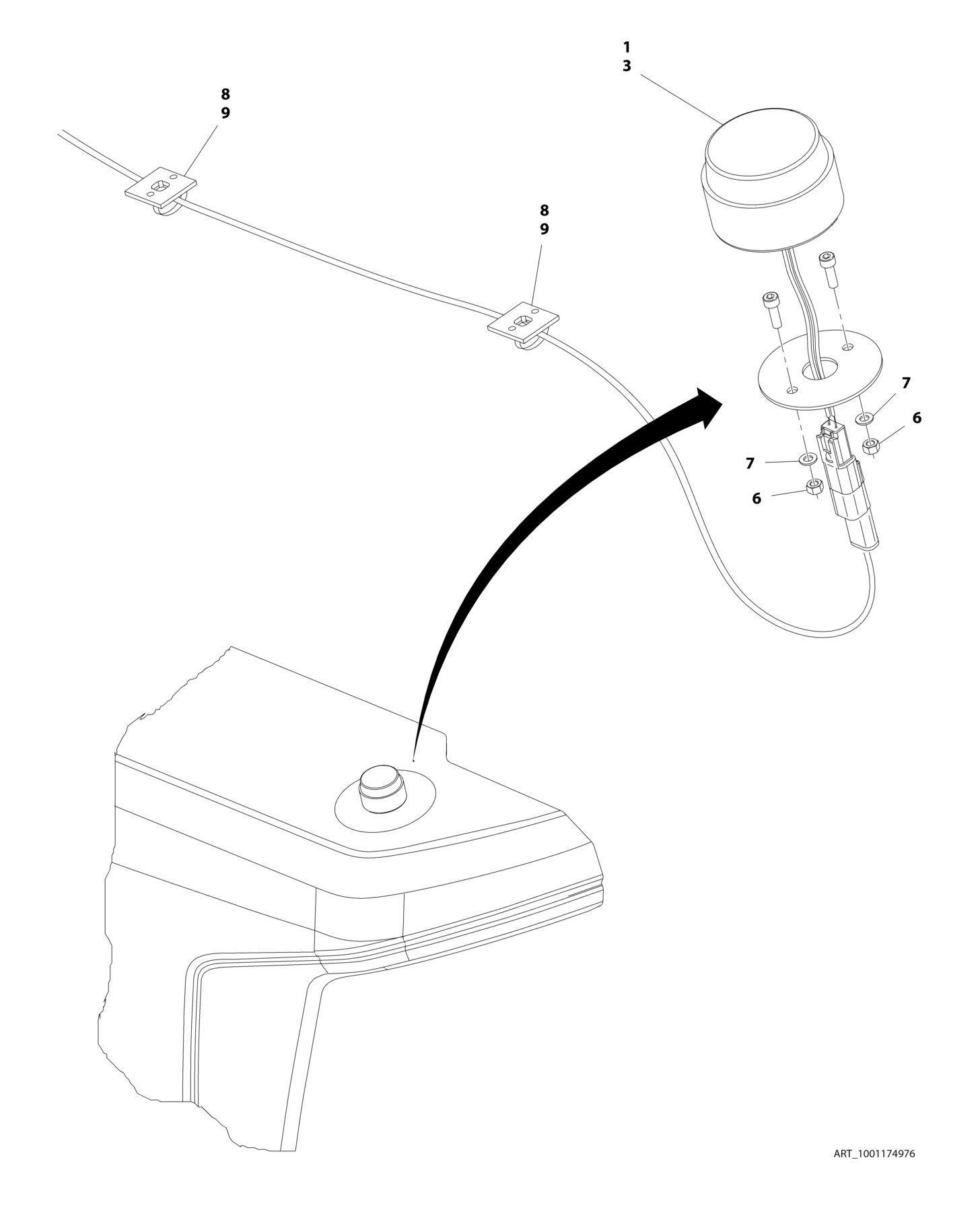

FIGURE 2-15. BEACON LIGHT INSTALLATION - AMBER

from JLG 520AJ Parts Manual (3121666) - PDF DOWNLOAD

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 2-15. BEACON LIGHT INSTALLATION - AMBER

ITEM PART NUMBER QTY

DESCRIPTION

1001174976 Ref BEACON LIGHT INSTALLATION - AMBER 1 0100048 AR Compound, Silicone 3 1001181405 1 Lamp, Strobe 3 4460897 1 Receptacle, Female - 2 Position 3 4460464 2 Pin, Male 6 3290505 2 Nut M5 7 4811600 2 Washer M5 8 4240032 AR Tie-Strap 9 4460234 2 Mount, Tie-Strap

FIGURE 2-15. BEACON LIGHT INSTALLATION - AMBER
