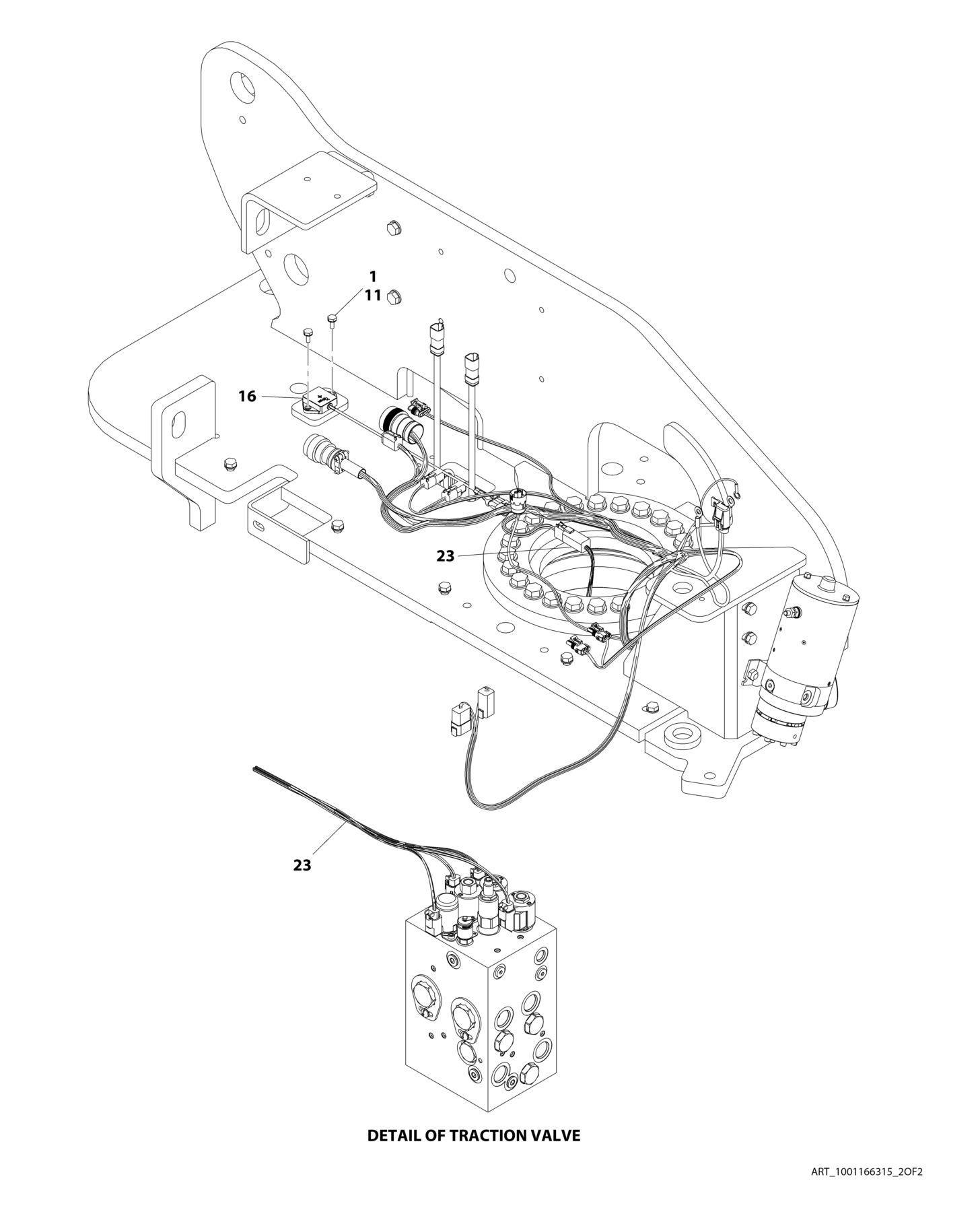

FIGURE 2-14. ELECTRICAL SYSTEM INSTALLATION

FIGURE 2-14. ELECTRICAL SYSTEM INSTALLATION

FIGURE 2-14. ELECTRICAL SYSTEM INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001166315 Ref ELECTRICAL SYSTEM INSTALLATION 1 0100011 AR Compound, Locking 2 0140043 1 Alarm 2 4460536 1 Receptacle, Female - 3 Position 2 4460943 3 Pin, Male 4 0760610 7 Bolt M6 x 20 5 0760621 5 Bolt M6 x 65 6 3290601 10 Nut M6 7 3290605 2 Nut M6 8 4460496 1 Washer, Terminal 9 4460497 1 Nut, Terminal 10 4811700 12 Washer M6 11 5250608 2 Bolt M6 x 16 14 1001106736 1 Cap, Dust 15 1001130220 3 Nut, Tinnerman M6 16 1001181325 1 Sensor (SN 1300007286 through 1300007383, Prior to SN

E300005354)

16 1001219601 1 Sensor (SN E300005354 to Present) 16 See Note 1 Receptacle, Female - 4 Position (Note: Not Available for Purchase) 16 See Note 4 Pin, Male (Note: Not Available for Purchase) 17 1001186007 1 Turntable Harness (See ELECTRICAL SECTION for Breakdown) 18 1001164736 1 Valve Harness - Main Valve (See ELECTRICAL SECTION for Breakdown) 19 1001164737 1 Ground Control Panel Harness (See ELECTRICAL SECTION for Breakdown) 21 1001170094 1 Module, Ground Control See Note Ref Note: Re-calibration Required when Replaced. 22 4811702 7 Washer M6 23 1001179236 1 Chassis Solenoid Harness (See ELECTRICAL SECTION for Breakdown) 24 1001196637 1 Decal - Fuse Box

REV

H
