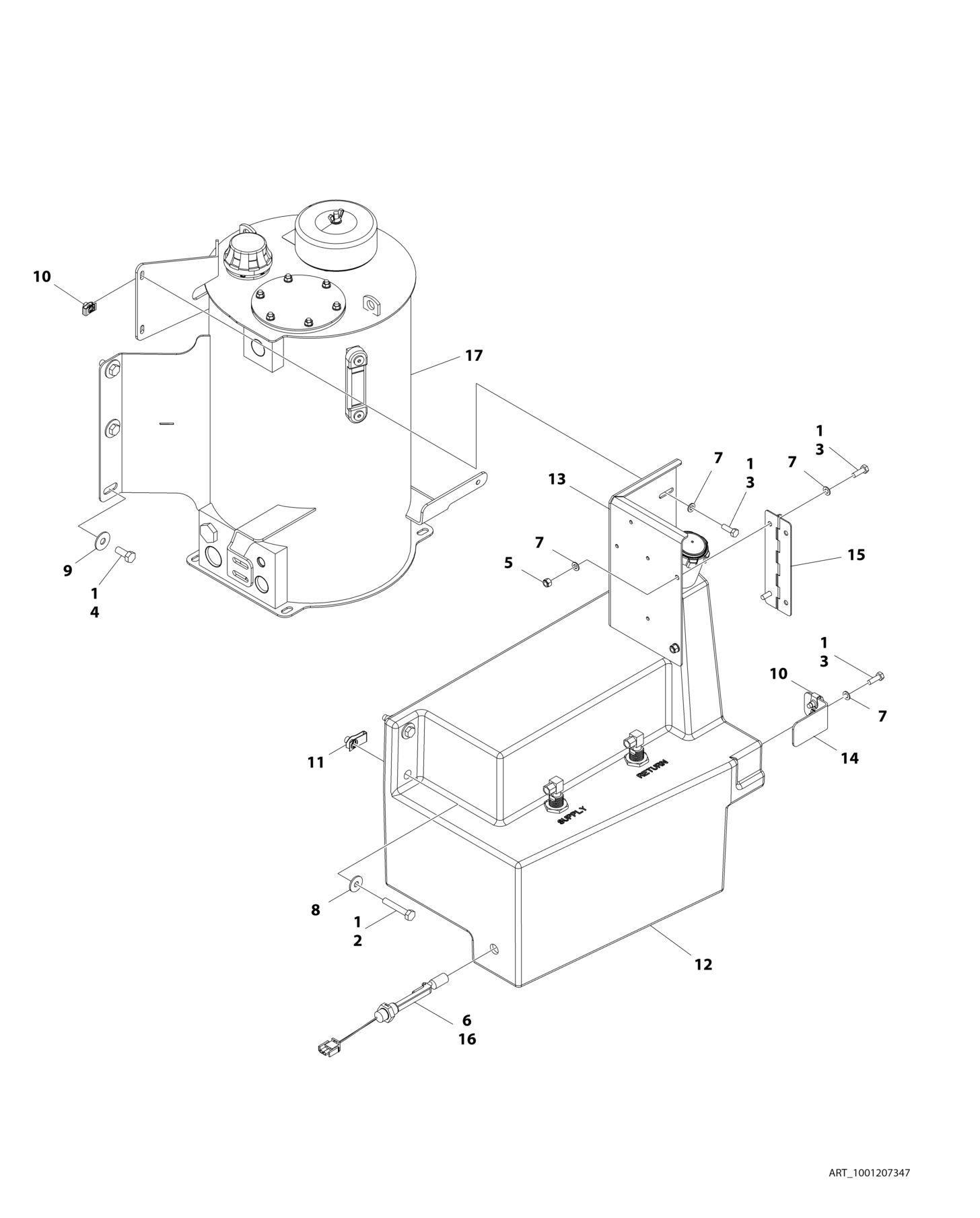

FIGURE 2-10. TANKS INSTALLATION - DIESEL MACHINES (SN 1300007286 through 1300007383, SN E300004228 to Present
ITEM PART NUMBER QTY
DESCRIPTION
1001207347 Ref TANKS INSTALLATION - DIESEL MACHINES (SN 1300007286
through 1300007383, SN E300004228 to Present)
1 0100011 AR Compound, Locking 2 0701020 2 Bolt M10 x 60 3 0760812 6 Bolt M8 x 25 4 0761214 6 Bolt M12 x 30 5 3290805 2 Nut M8 6 4360436 1 Switch, Fuel Level 6 4460320 1 Plug, Male - 2 Position 6 4460267 1 Pin, Male 7 4811900 8 Washer M8 8 4812002 2 Washer M10 9 4812102 6 Washer M12 10 1001118274 4 Nut M8 11 1001118972 2 Nut M10 12 1001163061 1 Fuel Tank Assembly 12 1001188196 NLA Cap, Fuel (Use p/n 1001193336) (Prior to SN E300004844) 12 1001193336 1 Cap, Fuel (SN 1300007286 through 1300007383, SN
E300004844 to Present)
12 70004876 2 Tube, Pick-up 12 0100020 AR Compound, Locking 13 1001169898 1 Support, Ground Control 14 1001170480 1 Support, Tank 15 1001179339 1 Hinge 16 1001182997 AR Adhesive 17 1001206916 1 Hydraulic Tank Assembly 17 70003614 1 Filter Kit (Includes Hydraulic Element, Breather Element and Gasket) 17 70002838 1 Fill Cap Assembly (Includes Cap, Chain and Fill Basket) 17 7024441 1 Gauge, Sight 17 70002112 1 Plug, Drain
REV
A
