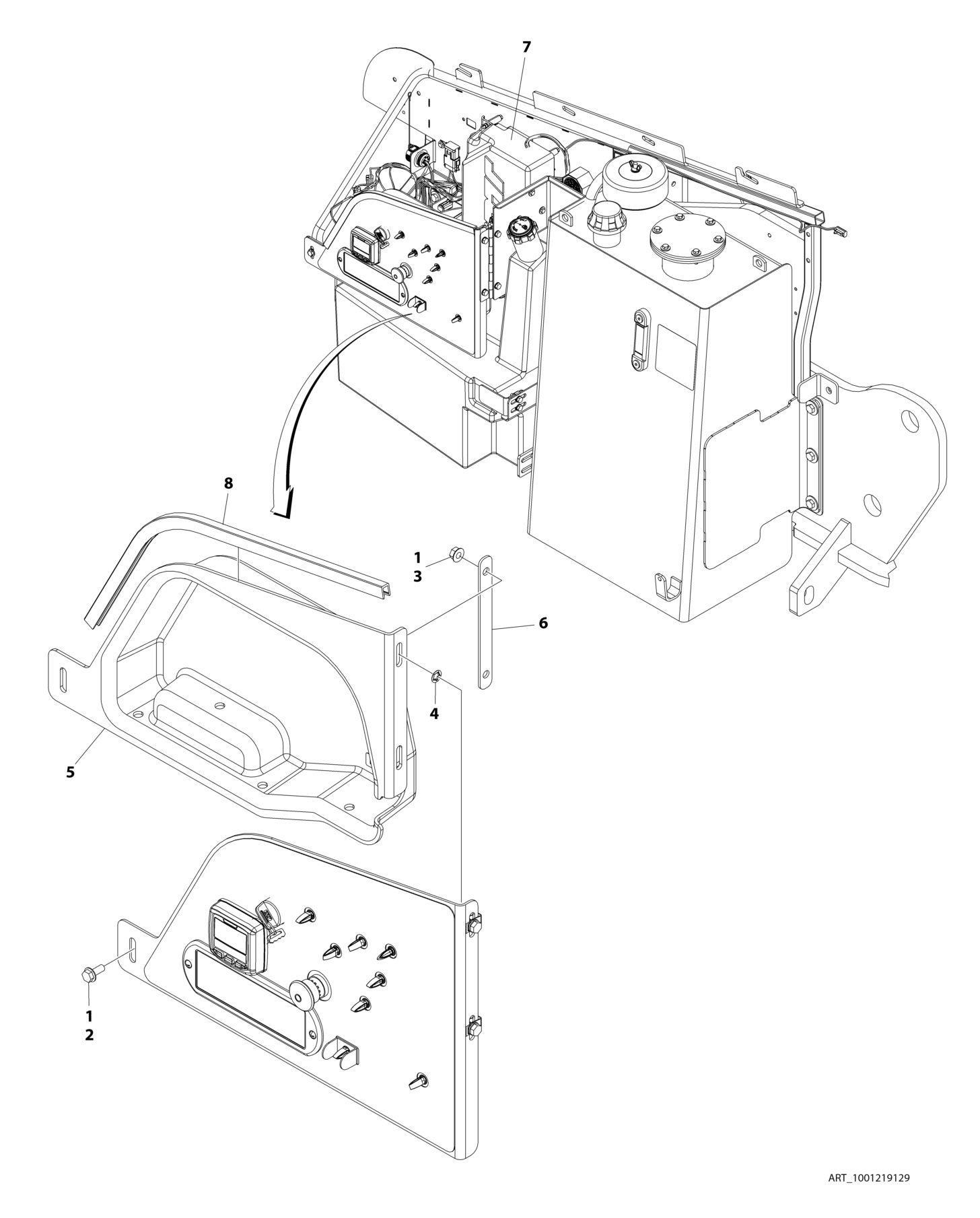

FIGURE 2-7. TURNTABLE COVERS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

1001219129 Ref TURNTABLE COVERS INSTALLATION 1 0100011 AR Compound, Locking 2 5250812 1 Bolt M8 x 25 3 5260800 2 Nut M8 4 1001119228 2 Nut M8 5 1001218533 1 Cover 6 1001218535 1 Plate, Mounting 7 1001218537 1 Cover 8 4060806 2 ft/0.6m Shield, Flex

FIGURE 2-7. TURNTABLE COVERS INSTALLATION

Next Article

FIGURE 11-1. SPECIAL OPTIONS

FIGURE 2-7. TURNTABLE COVERS INSTALLATION

FIGURE 2-7. TURNTABLE COVERS INSTALLATION

ITEM PART NUMBER QTY

DESCRIPTION

REV
