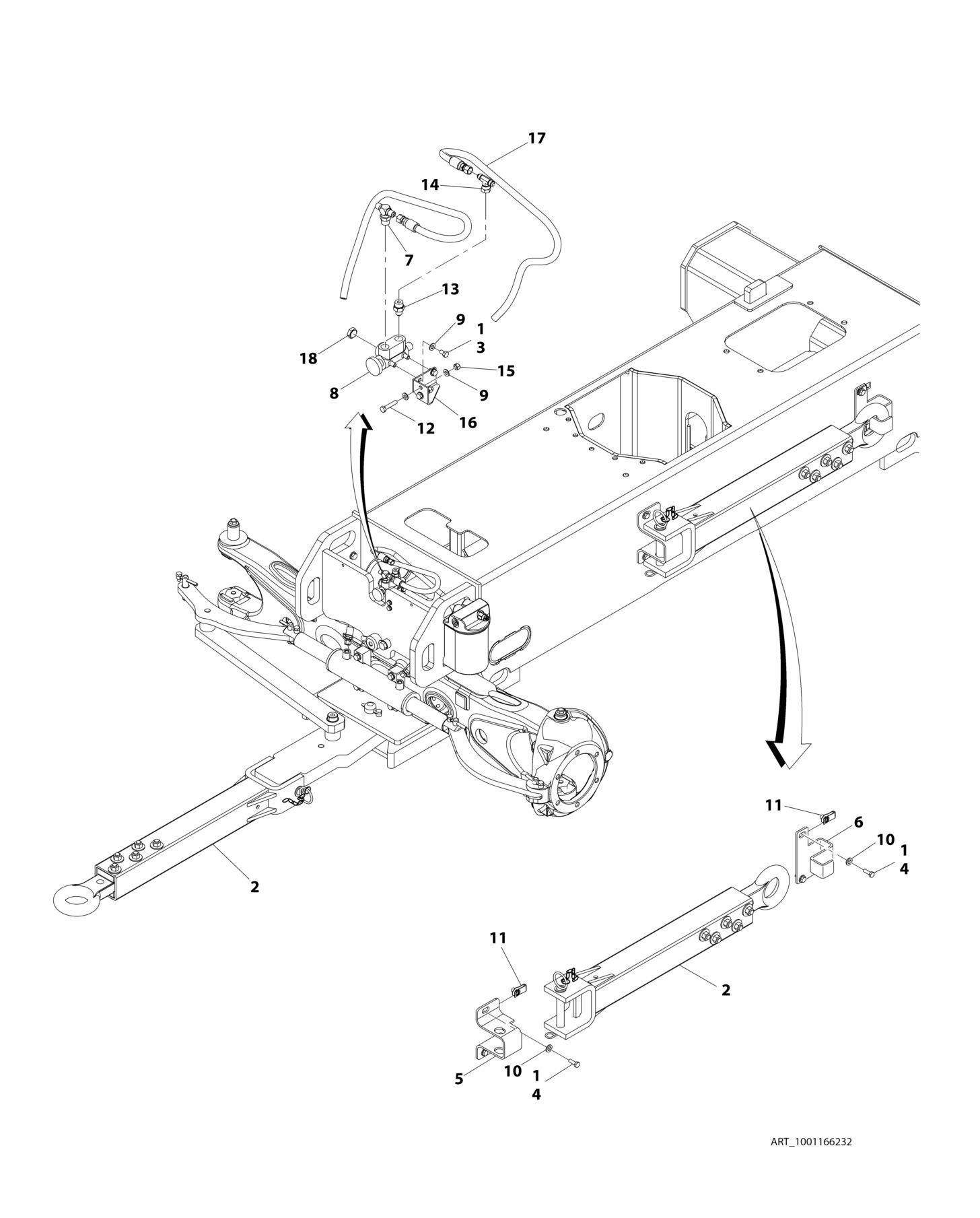

FIGURE 1-15. TOW PACKAGE INSTALLATION (OPTIONAL

FIGURE 1-15. TOW PACKAGE INSTALLATION (OPTIONAL)

FIGURE 1-15. TOW PACKAGE INSTALLATION (OPTIONAL)

ITEM PART NUMBER QTY

DESCRIPTION

1001166232 Ref TOW PACKAGE INSTALLATION (OPTIONAL) 1 0100011 AR Compound, Locking 2 0363019 1 Tow Bar Assembly (See TOW BAR ASSEMBLY for Breakdown) 3 0641504 2 Bolt 5/16 x 1/2 4 0701014 4 Bolt M10 x 30 5 0902733 1 Bracket 6 0902734 1 Bracket 7 2221052 1 Fitting, Tee JIC/ORB/JIC 8 4640261 1 Steer/Tow Select Valve Assembly 9 4711500 6 Washer 5/16 10 5241200 4 Washer M12 11 1001118972 4 Nut M10 12 0700816 2 Bolt M8 x 40 13 2220372 1 Fitting, Straight JIC/ORB 14 2220579 1 Fitting, Tee JIC/FSJIC/JIC 15 3290805 2 Nut M8 16 1001181527 1 Bracket 17 1001181913 2 Hose 18 2220238 1 Plug

REV

D
