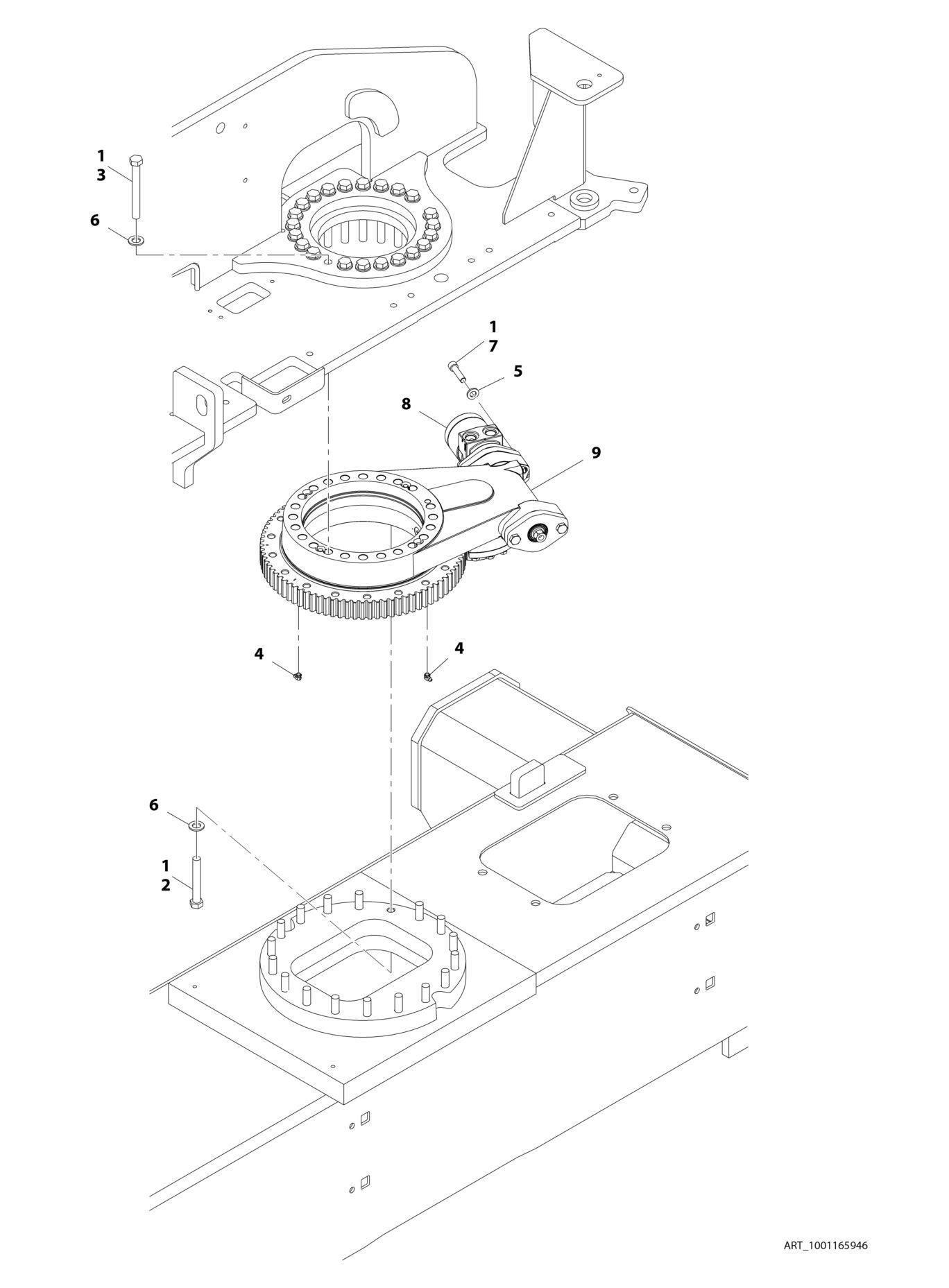

FIGURE 2-4. SWING DRIVE AND TURNTABLE BEARING INSTALLATION
ITEM PART NUMBER QTY DESCRIPTION REV
1001165946 Ref SWING DRIVE AND TURNTABLE BEARING INSTALLATION B 1 0100019 AR Compound, Locking 2 0711628 18 Bolt M16 x 110 Grade 10.9 3 0711631 23 Bolt M16 x 140 4 2160001 2 Fitting, Grease 90 5 5241200 2 Washer M12 6 5241600 41 Washer M16 7 5272114 2 Capscrew M12 x 50 Grade 12.9 8 1001104850 1 Swing Motor Assembly (See SWING MOTOR ASSEMBLY for breakdown) 9 1001133972 1 Turntable Bearing Assembly (See TURNTABLE BEARING ASSEMBLY for Breakdown)
