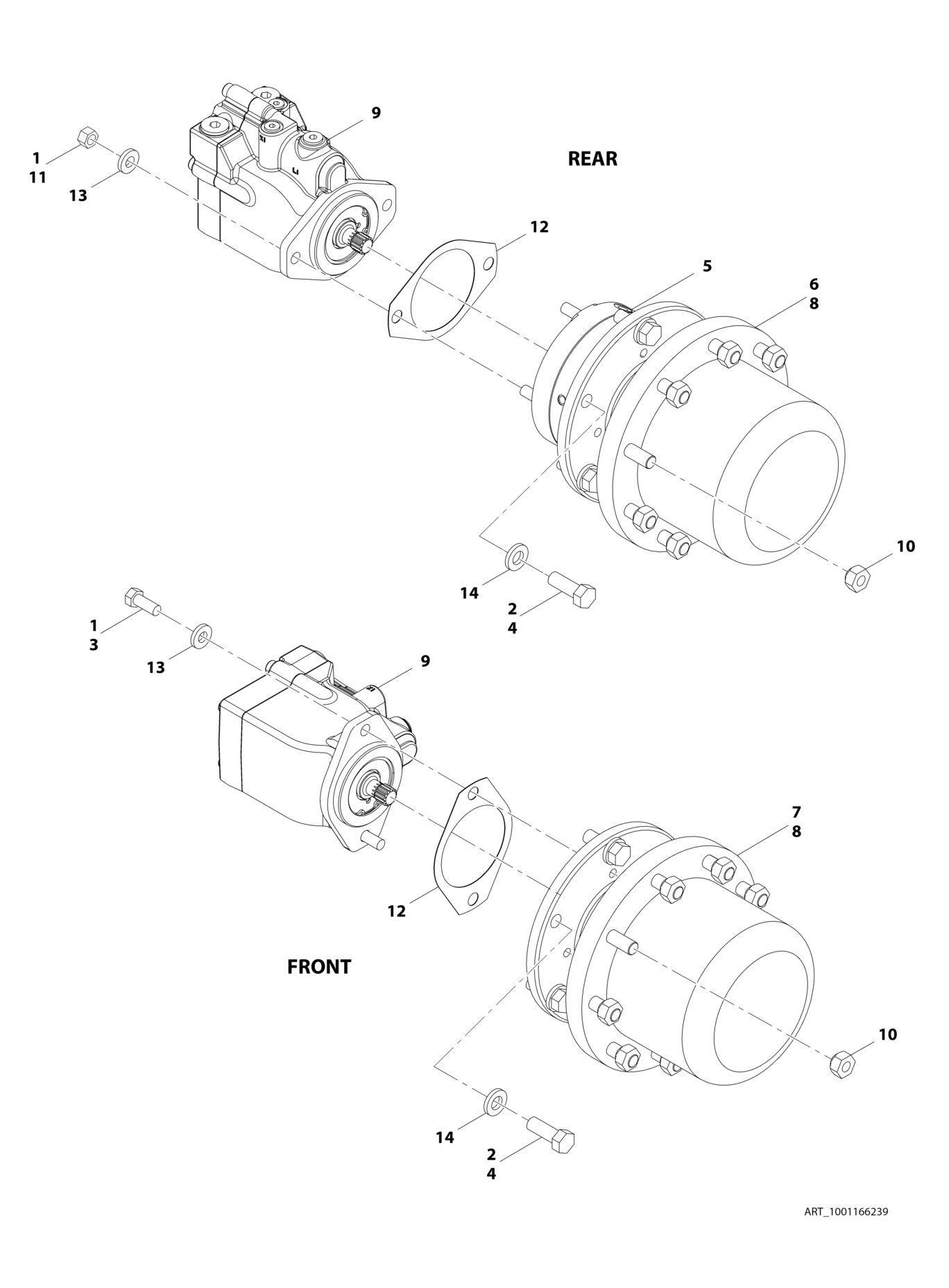

FIGURE 1-4. WHEEL DRIVE INSTALLATION, 4WD

FIGURE 1-4. WHEEL DRIVE INSTALLATION, 4WD

FIGURE 1-4. WHEEL DRIVE INSTALLATION, 4WD

ITEM PART NUMBER QTY

DESCRIPTION

1001166239 Ref WHEEL DRIVE INSTALLATION, 4WD 1 0100011 AR Compound, Locking 2 0100019 AR Compound, Locking 3 0681810 4 Bolt 1/2 x 1-1/4 Grade 8 4 0682014 24 Bolt 5/8 x 1-3/4 Grade 8 5 2300016 AR Fluid, Hydraulic 6 2780267 2 Drive Hub Assembly - Rear (See DRIVE HUB ASSEMBLY - REAR for Breakdown) 7 2780268 2 Drive Hub Assembly - Front (See DRIVE HUB ASSEMBLY FRONT for Breakdown) 8 3020008 AR Lubricant 9 3160348 4 Drive Motor Assembly (See DRIVE MOTOR ASSEMBLY for Breakdown) 10 3300106 36 Lugnut 11 3311801 4 Nut 1/2 12 3960526 4 Gasket, Brake 13 4891800 8 Washer 1/2 14 4892000 24 Washer 5/8

REV

D
