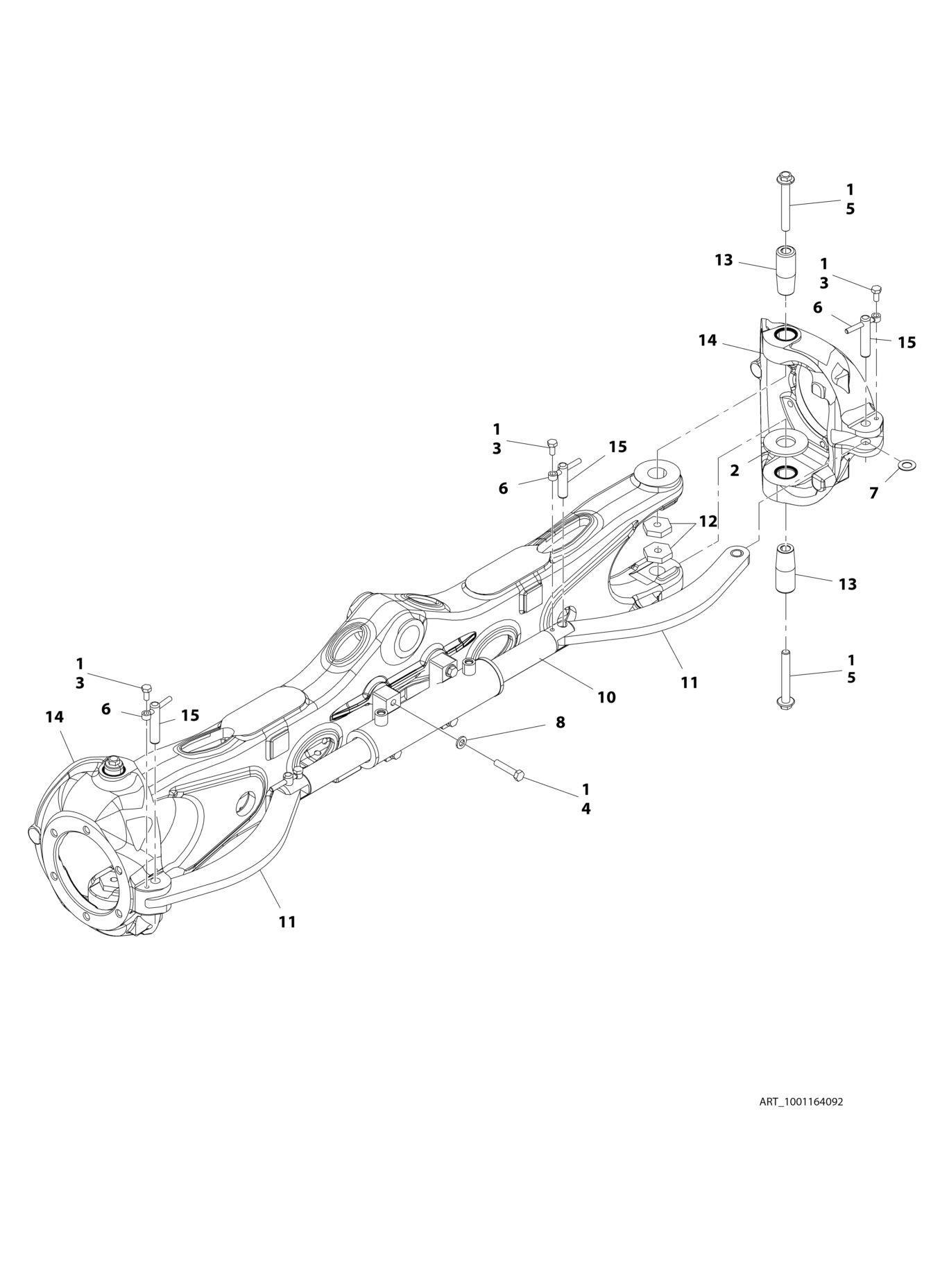

FIGURE 1-2. STEER INSTALLATION WITHOUT TOW PACKAGE
ITEM PART NUMBER QTY
DESCRIPTION
1001164092 Ref STEER INSTALLATION WITHOUT TOW PACKAGE 1 0100011 AR Compound, Locking 2 0440271 2 Bearing, Thrust (SN 1300007286 through 1300007383, Prior to
SN E300005317)
2 1001233139 2 Bearing, Thrust (SN E300005317 to Present) 3 0761011 4 Bolt M10 x 22 4 0711220 4 Bolt M12 x 60 Grade 10.9 5 1001190368 4 Bolt M16 x 120 6 3841143 4 Keeper, Pin 7 4740086 4 Washer 8 5241200 4 Washer M12 10 1001163178 1 Steer Cylinder Assembly (See CYLINDER SECTION for Breakdown) 11 1001163179 2 Link 11 1001164209 4 Bearing (2 Per Link) 12 1001176848 4 Nut M16 13 1001163405 4 Kingpin 14 1001163715 2 Spindle 14 0961948 4 Bearing (2 Per Spindle) 14 1001163716 8 Seal (4 Per Spindle) 15 3423304 4 Pin
REV
F
