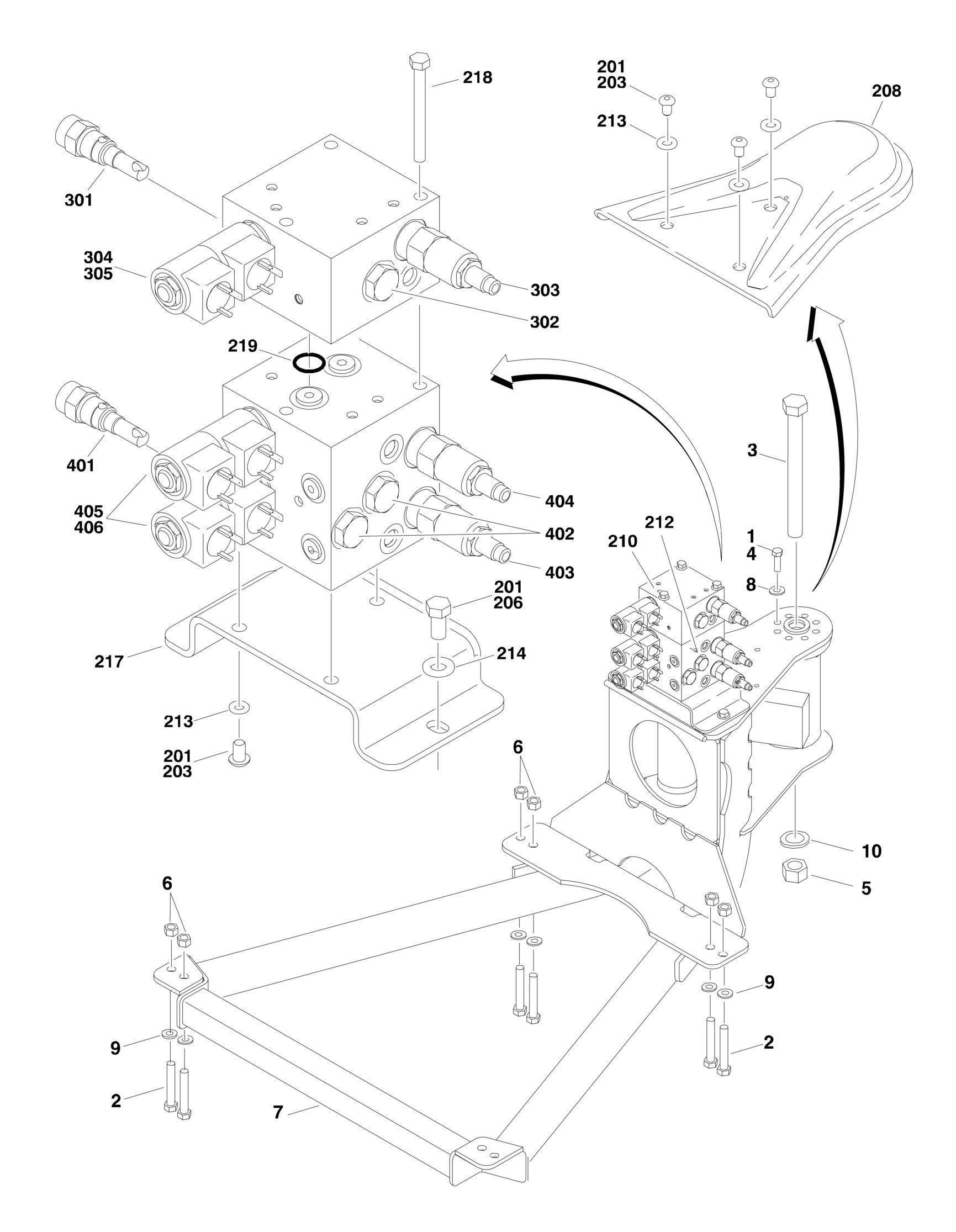

FIGURE 3-5. PLATFORM SUPPORT AND CONTROL VALVES INSTALLATIONS
ITEM PART NUMBER QTY
DESCRIPTION
Ref Belgium Built Machines use S/Ns 13xxxxxxxx. Ref Romanian Built Machines use S/Ns E3xxxxxxxx. Ref PLATFORM SUPPORT INSTALLATION 0272070 Ref Machines without LSS See Note Ref Machines with LSS (Note: For Replacement Parts, Contact
JLG Customer Service and Request Manual p/n 3124287.)
1 0100011 AR Compound, Locking 2 0641812 8 Bolt 1/2in-13NC x 1-1/2in 3 0642684 1 Bolt 1in-8NC x 10-1/2in 4 0681608 8 Bolt 3/8in-16NC x 1in 5 3272605 1 Locknut 1in-8NC (Use p/n 3300243) 6 3311805 8 Locknut 1/2in-13NC 7 4846573 1 Support Weldment 8 4891600 8 Flatwasher 3/8in Hardened 9 4891800 8 Flatwasher 1/2in Hardened 10 4892600 1 Flatwasher 1in Hardened Ref CONTROL VALVE INSTALLATIONS 0271197 Ref Belgium Built Machines (Prior to SN 1300001243) 0274616 Ref Belgium Built Machines (SN 1300001243 to Present) 0274616 Ref Romanian Built Machines (SN E300000100 through
E300001114)
201 0100011 AR Compound, Locking 203 0630467 6 Screw, Button Head 206 0641606 2 Bolt 3/8in-16NC x 3/4in 208 1670964 1 Cover 210 4641175 1 Valve, Jib (See Items 301-305 for Breakdown) 212 4641177 1 Valve, Level/Rotate (See Items 401-406 for Breakdown) 213 4711500 9 Flatwasher 5/16in Thin 214 4711600 2 Flatwasher 3/8in Thin 217 4846218 1 Plate, Valve Mounting 218 0641526 3 Bolt 5/16in-18NC x 3-1/4in 219 3780117 2 O-Ring 4641175 Ref JIB VALVE ASSEMBLY 301 7023984 1 Valve, Cartridge 301 7012953 1 Seal Kit - 7023984 Valve 302 7010542 1 Valve, Load Shuttle 302 7010543 1 Seal Kit - 7010542 Valve 303 7023915 1 Valve, Relief 303 7012967 1 Seal Kit - 7023915 Valve 304 7017452 1 Valve, Solenoid 304 7017402 1 Seal Kit - 7017452 Valve 305 7012944 2 Coil 4641177 Ref LEVEL/ROTATE VALVE ASSEMBLY 401 7012989 1 Valve, Cartridge 401 7012953 1 Seal Kit - 7012965 Valve 402 7012914 2 Valve, Pressure Control 402 7012918 2 Seal Kit - 7012914 Valve 403 7023911 1 Valve, Relief 403 7012967 1 Seal Kit - 7023911 Valve 404 7023912 1 Valve, Relief
REV
E
F A A
D
C
ITEM PART NUMBER QTY
DESCRIPTION
404 7012967 1 Seal Kit - 7023912 Valve 405 7017452 2 Valve, Solenoid 405 7017402 2 Seal Kit - 7017452 Valve 406 7012944 4 Coil
